Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida

Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida

Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida
Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida

Large Image :  Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida Get Best Price

Product Details:
Place of Origin: China
Brand Name: WANBO SST
Model Number: H560
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discuss price
Packaging Details: wooden box package, 2200*1300*1600mm, 1200kg
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Pick And Place Machine Heads: 6 Heads
Motor: Servo Motor Speed: 15000-25000CPH
Precision: 0.05mm Feeder: 30cs Of 8mm Feeders
Weight: 1200kg Power Supply: AC 220V
Make Products: Bulb Light, Tube Light, Panel Light, Flood Light, Driver Customize: Yes
High Light:

smt pick and place equipment

,

smt production line equipment

SMT pick and place machine, led chip mounter 6 heads chip shooter, smt placement machine





Machine description



Use the most convenient positioning block, base plate origin positioning method to fix position. The Positioning is highly accurate (Precision less than 0.05 mm). Mounting angle range 0-360° and the precision is 0.1°. Every picking nozzle is an independent rotation angle, moreover added 6 cameras of components recognition. In addition to place the traditional long led tube light, also can place bulb light, down light, spot light, ceiling light, LED fence light, LED driving power supply, copper wire string light and so on.



Product main features:



1. Mounting type: It can meet the mounting of SMD LED components of all specifications such as 0603 to 7272. In addition to all flat LEDs, other planar electronic components (such as resistors, capacitors, etc.) and high-power LEDs and lenses can be produced.

2, accurate positioning: the most convenient positioning block, substrate origin alignment, accurate positioning (accuracy less than 0.05mm). The mounting angle range is 0-360° with an accuracy of 0.1°. Each nozzle is a separate corner, plus six component recognition cameras, in addition to the traditional LED long strips, bulbs, down lights, spotlights, ceiling lamps, guardrail tubes, LED drive power, copper wire Light strings and the like can be mounted at will.

3, high precision: X, Y, W axis are equipped with imported precision ball screw and guide rail, Z-axis 8 groups of imported motor drive, enhance the smooth coordination of equipment movement, reduce abnormal noise, greatly improve the accuracy and speed of the patch.

4, the mounting plate specifications: platform 500X400mm, suitable for 90% of the current LED products on the market;

Can be attached to various shapes of PCB board, without the need for fixtures, can be attached to the 1.2-1.5 meters long PCB board.

5. Vision system: Visual software online programming, in which the programming camera is a high-precision digital camera, without the need to manually input component coordinates; and the positioning method automatically recognized by the visual camera ensures the placement accuracy.

6, supporting software: the interface is simple and generous, functional and practical, visual software online programming, the software displays all the coordinate points in the imposition, and can fine-tune the coordinate points therein to achieve high-precision placement, no need to manually input component coordinates, fast and convenient Simple and clear, combined with the actual needs of many LED manufacturers to independently develop and design.

7, Yamaha Feida: The machine is equipped with 8 8MM Yamaha Feida (also optional Fuji Electric Feida), long service life, high stability and fast speed.

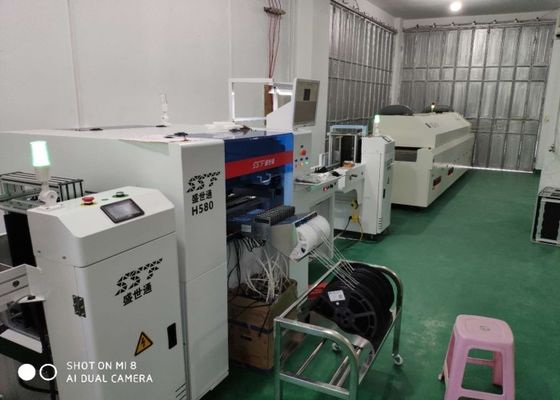

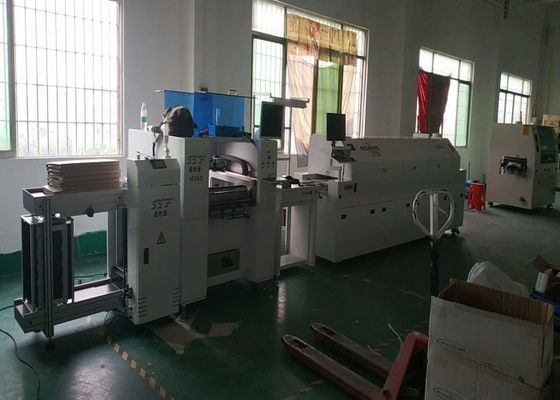

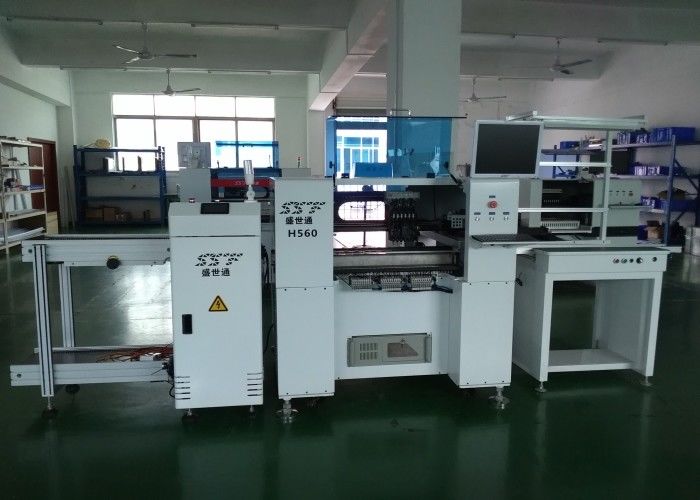

Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida 0





Technical parameters





Product name

SST full automatic 1.5m pick and place machine SST-H560

Maximum PCB area

500×400mm

Maximum moving range

X axis 500mm,Y axis 400mm

Z axis Maximum moving range

12mm

Max placement speed

30000CPH

Typical placement speed

15000-25000CPH

Movement precision

±0.05mm

Positioning method

MARK point camera + visual camera position

Can mount components

0603 upper resistor and capacitor parts and LED chips 3528, 5050, meanwhile meet requirement of SOP SOT chip placement, and compatible with all kinds of high power chip mount.

Types of production

LED tube light,soft LED strip light,power supply driver,fence light,display module,display screen etc multi LED application products.

Programming method

Automatic Visual camera Positioning programming

Belt type feeder

8mm, 12mm, 16mm, and 24mm feeder

Number of feeders

can maximum install 45pcs of standard 8mm feeder

Operating system

WINDOWS 7

Compressed air

0.55MPA

Power supply

220V,50Hz,2.0KW

Weight

1200Kg

Dimension

2000MM(L)*1100MM(W)*1450MM(H)




Main Parts Supplier of machine



Cables Germany IGUS
Servo motor PANASONIC
Screw rod Japanses KURODA/THK
Guide rail Taiwan HIWIN
Vacuum system Germany vacuum pump
Head Z motor Japan Shino
Inductive switch Panasonic
Negative pressure meter Panasonic
Camera Sony

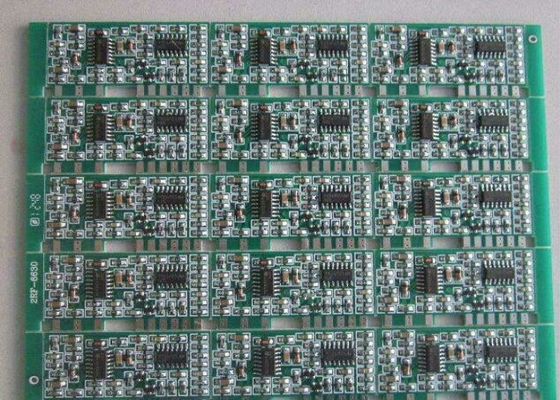

Placement product



Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida 1





Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida 2

Accurate SMT Pick And Place Machine / Placement Equipment With 8 YAMAHA Feida 3
