25000CPH electric feeder 6 heads smt pick and place machine for Lumileds high power led lens
Product name: led smt pick and place machine
Machine description

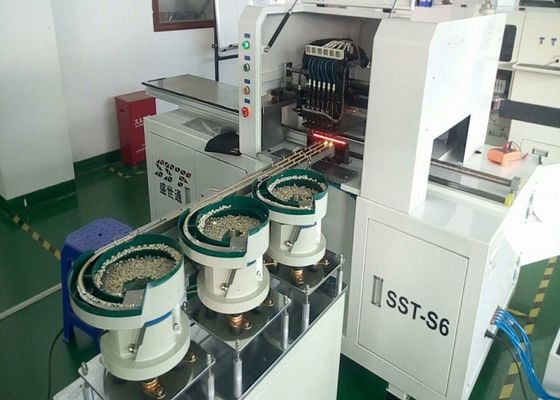

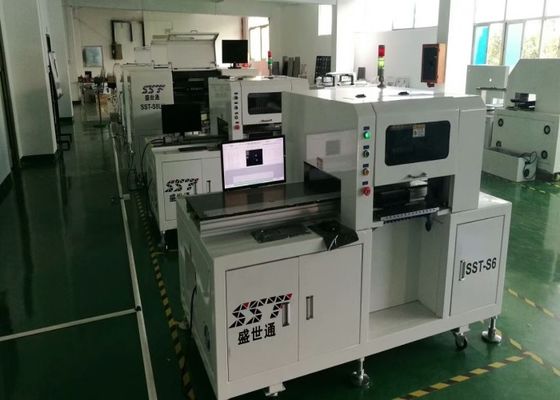

SST-S6 is a 6 head high-speed placement machine developed by Sheng Shi Tong in order to meet the rapid development of the lighting industry. The X / Y / W axis is equipped with imported motors, precision ball screw rods and guide rails to ensure the smooth movement of the platform and control accuracy. The transportation adopts platform moving plate, reduces the manpower to the greatest extent. The head uses the high precision Japanese IKO spline, the precision is high, the wear-resisting time is long, will not deform in five years, simultaneously uses the Japanese Yamaha suction nozzle pole, the picking nozzle, the Feeder feeds material, Ensure the high accuracy, high stability, six groups of high speed patch heads can group pick group place, and group pick separate place, separately pick and place, any angle mount, greatly improve the production efficiency, fully meet your more stable, faster and more durable plement production requirements!
Machine adopts Industrial control computer + independent special controller to control + independently developed operating software, the system stability, and which is simple operate and easy to learn!
Technical parameters
|
Product name |
SST full automatic 1.5m pick and place machine SST-S6 |
|
Maximum PCB area |
1200×380mm |
|
Maximum moving range |
X axis 1200mm,Y axis 390mm |
|
Z axis Maximum moving range |
12mm |
|
Max placement speed4 |
45000CPH |
|
Typical placement speed |
25000-35000CPH |
|
Movement precision |
±0.05mm |
|
Positioning method |
MARK point camera + visual camera position |
|
Can mount components |
0603 upper resistor and capacitor parts and LED chips 3528, 5050, meanwhile meet requirement of SOP SOT chip placement, and compatible with all kinds of high power chip mount. |
|
Types of production |
LED tube light,soft LED strip light,power supply driver,fence light,display module,display screen etc multi LED application products. |
|
Programming method |
Automatic Visual camera Positioning programming |
|
Belt type feeder |
8mm, 12mm, 16mm, and 24mm feeder |
|
Number of feeders |
Can install 12pcs of 8mm or 6pcs of 12mm feeders |
|
Operating system |
WINDOWS 7 |
|
Compressed air |
0.55MPA |
|
Power supply |
220V,50Hz,2.0KW |
|
Weight |
1000Kg |
|
Dimension |
2000MM(L)*1100MM(W)*1450MM(H) |
Main Parts Supplier of machine
| Cables | Germany IGUS |
| Servo motor | PANASONIC |
| Screw rod | Japanses KURODA/THK |
| Guide rail | Taiwan HIWIN |
| Vacuum system | Taiwan vacuum pump |
| Head Z motor | Japan Shino |
| Inductive switch | Panasonic |
| Negative pressure meter | Panasonic |
| Camera | Sony |

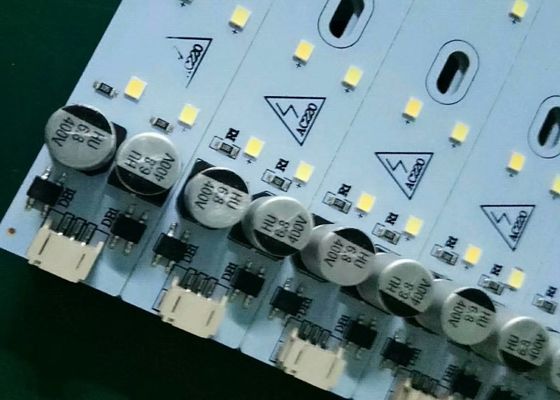

Placement product
