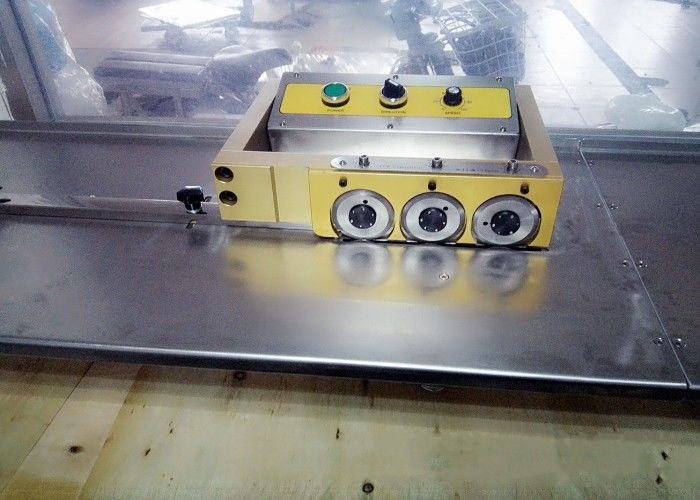

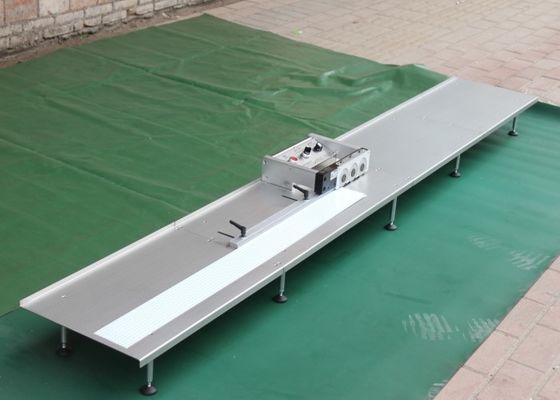

High Efficiency PCB Depaneling Machine For Aluminum PCB LED Strip

High Efficiency PCB Depaneling Machine For Aluminum PCB LED Strip

High Efficiency PCB Depaneling Machine For Aluminum PCB LED Strip
High Efficiency PCB Depaneling Machine For Aluminum PCB LED Strip High Efficiency PCB Depaneling Machine For Aluminum PCB LED Strip High Efficiency PCB Depaneling Machine For Aluminum PCB LED Strip High Efficiency PCB Depaneling Machine For Aluminum PCB LED Strip

Large Image :  High Efficiency PCB Depaneling Machine For Aluminum PCB LED Strip Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: WANBO
Model Number: C8000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discuss price
Packaging Details: wooden box package
Supply Ability: 1000pcs/month
Detailed Product Description
Product Name: Strip PCB Cutting Machine Blade: Up 3 Down 3
Power: AC 220V 50Hz 40W PCB Length: 300mm-2400mm
Cutting Thickness: 0.5-3mm Cutting PCB: Aluminum, Fiber, FR4, Copper
Cutting Speed: 0-300mm/s Status: New
Stock: Have Stock Goods Warranty: 1 Year
High Light:

pcb depaneling equipment

,

pcb separator machine

PCB cutting machine, PCB depanelling machine, PCB separator for aluminum PCB LED strip





PCB cutting machine, PCB depanelling machine, PCB separator, LED strip cutting machine



Characteristic:

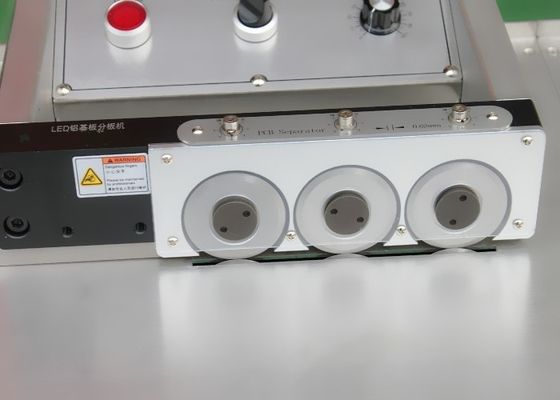

1. multi blade PCB cutter. Using a unique cutting method, the cutting of the plate splitter is completed by six blades, and the upper and lower blades are grouped into one cutting unit. The whole cutting process is divided into three stages: group A cutter cuts 40% of the circuit board first, then group B cutter runs through the slot cut by group A cutter again, and completes 40% of the cutting volume again. At last, the last 20% of the cutter is cut and polished by group C blade. Because of the small amount of cutting each time, the stress generated in the cutting process is reduced by more than 80% compared with the traditional one-time cutting method. The edge of the cut circuit board is smooth and smooth, the board surface is very flat and does not warp. It is the only one on the market that can ensure the cutting after cutting. A machine that does not deform aluminum plates.

2. Multi-knife PCB cutting machine. Due to multiple cutting, the cutting process is very smooth, greatly improving the positioning ability of the V-CUT slot. Even if the V-CUT slot is very shallow, the V-CUT slot will not jump out of the guiding knife, avoiding bad.

3. Due to the small cutting force of the blade and the high-speed steel material imported from Sweden, the durability of the blade is greatly improved. When the aluminum substrate is divided, the blade life can reach more than one year.

4. All cutting blades are calibrated by dual-frequency laser interferometer to ensure that the back knives can continue to cut accurately in the groove cut by the front knives. The knives jump no more than 0.02mm, ensuring perfect cutting quality.

5. The products are used by Shenzhen Famous Home Technology, Foshan Lighting, Zhongshan Xiangting Aquarium, Zhongshan Junxing Lighting, and button lighting, with perfect effect and years of quality assurance.

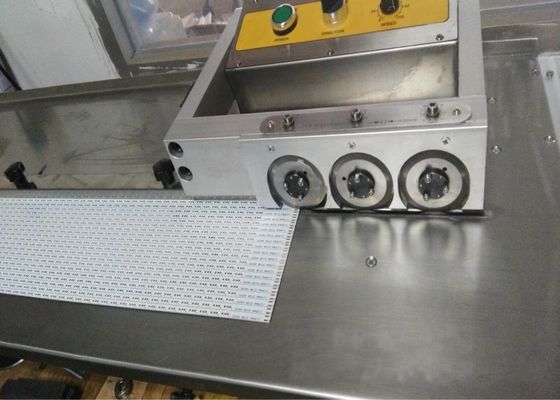

High Efficiency PCB Depaneling Machine For Aluminum PCB LED Strip 0



Parameters:



Maximum board length no limit.
Working thickness 0.5-3mm
Material of the cut circuit board: aluminum PCB, copper PCB, FR1-4, fiberglass PCB
Feeding speed 0-300mm/sec
Blade material Sweden SKH7 HSS10.
Power 220V/50HZ, 40W
Storage temperature -20-50 degrees
Weight 36kg
