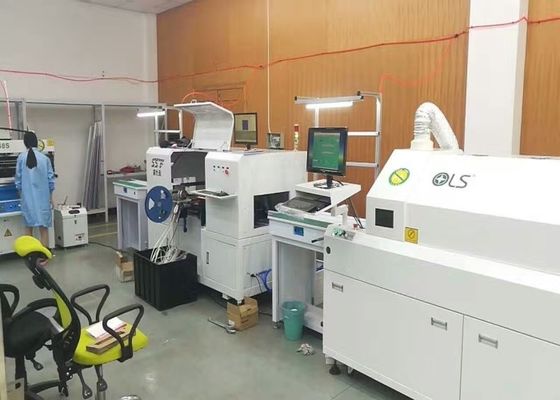

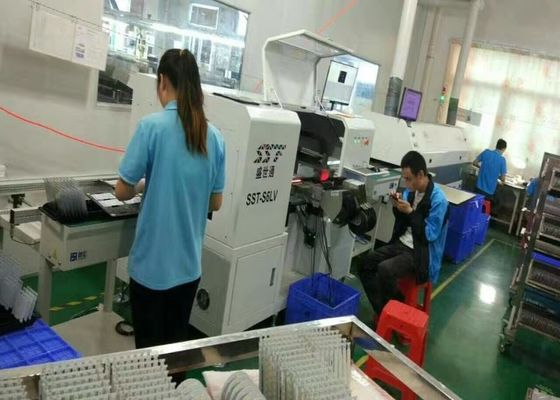

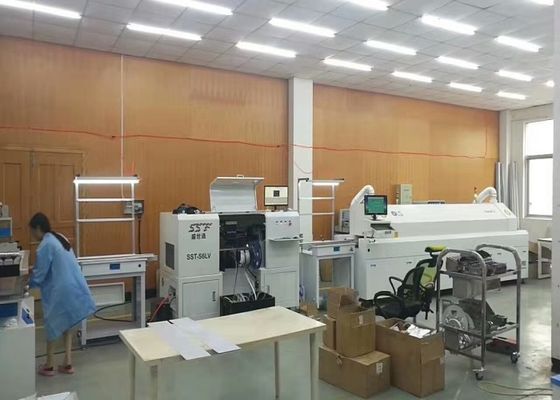

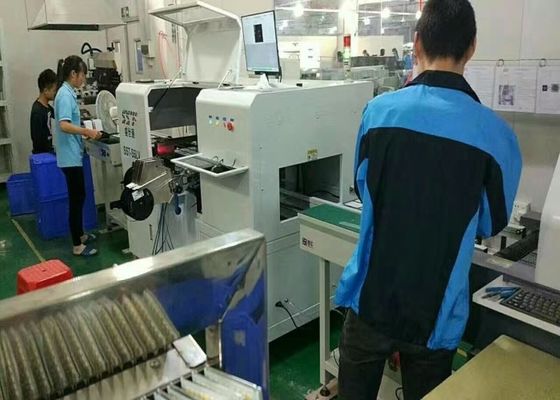

Automatic SMT Production Line / Assembly Line For LED Bulb Light And Tube Light

Automatic SMT Production Line / Assembly Line For LED Bulb Light And Tube Light

Automatic SMT Production Line / Assembly Line For LED Bulb Light And Tube Light
Automatic SMT Production Line / Assembly Line For LED Bulb Light And Tube Light Automatic SMT Production Line / Assembly Line For LED Bulb Light And Tube Light Automatic SMT Production Line / Assembly Line For LED Bulb Light And Tube Light Automatic SMT Production Line / Assembly Line For LED Bulb Light And Tube Light

Large Image :  Automatic SMT Production Line / Assembly Line For LED Bulb Light And Tube Light Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: WANBO
Model Number: smt line
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discuss price
Packaging Details: wooden box package
Supply Ability: 100set/month
Detailed Product Description
Product Name: Smt Line For Bulb Light Products: Bulb Light, Tube Light, Panel Light, Led Strip
Speed: 20000-30000CPH Operation Mode: Automatic In Line
Machine: 6 Heads Pick And Place Machine Oven: 8 Zone Reflow Oven
High Light:

smt assembly line

,

smt line machine

smt pick and place machine, smt production line, automatic smt line for LED bulb tube light



Product name: Automatic Online type complete SMT line



Product main features:


1. The platform USES the Japanese panasonic servo motor, imported orbit, ensure the stability and control precision of mobile platform.
2. The X, Y axis adopt panasonic servo drive, with imported linear guide, ensure the patch of high precision, high speed, the stability of the first-class.
3. 4 sets high speed post opening work at the same time, greatly improve the equipment performance. Under the suction head adopt the imported guide rail, high precision and long durability.
4. Easy to understand way of graphical programming, greatly improve the convenience of operation, automatic visual auxiliary positioning positioning, accurate, convenient.
5. The selection of a variety of batcher, can satisfy the requirement of different LED packaging components of SMT.
6. Controlled by industrial control computer + independent special controller, system stability, simple operation, easy to learn.
7. Powerful software, programming coordinates using numerical and graphical display, coordinate correction and change is convenient, the production process of graphical display patch progress and components, subsidy is convenient.
8. The software USES the database system, different types of PCB programming can be stored, convenient call, a programming of new products, calling for life.
9. The platform, the Y axis, the X axis can be manually move, free movement speed adjustment, realize arbitrary point can manually to arrive, convenient programming.
10. Imported negative pressure detection system, to accurate detection of absorption material, effectively prevent leakage of material, extractor.
11. A negative pressure generator with built-in, low noise, long service life, vacuum pressure constant.
12. The standard configuration: 1 set of industrial control computer, opening four groups, suction nozzle 12;

13. Optional: matchs outside to 8 mm, 12 mm, 16 mm and 24 mm yamaha feeder; Air compressor;



Technical parameters:





Machine Model WANBO HS6LV
The biggest circuit board area 1200×380mm
Maximum moving range X axis 1500mm, Y axis 400mm
Z axis Maximum moving range 12mm
Typical patch speed 15000-20000cph
Typical LED lens patch speed 20000cph-35000cph
The theory of maximum patch speed 35000cph
positionaI accuracy ±0.05mm
Location way Mark point camera + 6 sets sony Visual camera positioning + 1 industrial camera
Components can be placed 0603 above to 7272 resistors and capacitors, and all kinds of 0603 and 3528, 5050, 5630, 5730, meet placement of SOP, SOT chip, LED power driver, driver board, and compatible with all kinds of high-power chip SMD componets, LED lens placement
Programm method Computer graphical programming + visual camera positioning
Feeder applicable 8mm, 12mm, 16mm and 24 belt type feeder, or vibration plate
Number of feeder Standard placed 14pcs feeders of 8mm
nozzles JUKI nozzle 504, 505 and 506
Product LED fluorescent tube, soft light belt, power drive, guardrail tube, module, display and other LED applications
operating system WINDOWS XP, WIN 7
negative pressure An external air source 0.55MPA
Power and rate 220V, 50Hz, 1.2KW
Weight 1500Kg
Dimension

1300MM(L)*1300MM(W)*1450MM(H)
