| Customize: | Yes | Speed: | 30000CPH |
|---|---|---|---|
| Resolution: | 0.5mm | Feeder: | 20pcs |
| Weight: | 1500KG | Power Supply: | 220V |
| Port: | Shenzhen | ||
| High Light: | smt pick and place equipment,smt pick place machine |
||

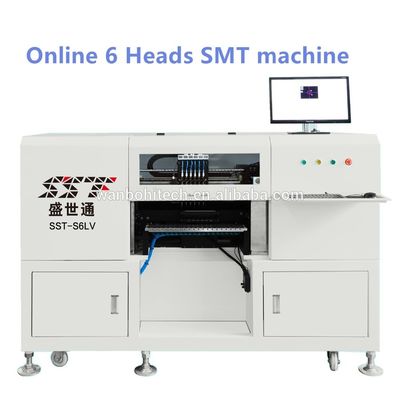

6 Heads SMT machine Automatic SMT line LED Bulb/Driver/Tube/Panel/Ceiling/Copper wire light patch machine
Product name: Automatic Online type LED pick and place machine S10LV Whole production line
0.5-1.2m Semi-automatic solder printer+online conveyor+SMT machine 6-10 heads+conveyor+guide rail chain reflow oven 6/8/10 zones
Product main features:
1. The platform USES the Japanese panasonic servo motor, imported orbit, ensure the stability and control precision of mobile platform.
2. The X, Y axis adopt panasonic servo drive, with imported linear guide, ensure the patch of high precision, high speed, the stability of the first-class.
3. 4 sets high speed post opening work at the same time, greatly improve the equipment performance. Under the suction head adopt the imported guide rail, high precision and long durability.
4. Easy to understand way of graphical programming, greatly improve the convenience of operation, automatic visual auxiliary positioning positioning, accurate, convenient.
5. The selection of a variety of batcher, can satisfy the requirement of different LED packaging components of SMT.
6. Controlled by industrial control computer + independent special controller, system stability, simple operation, easy to learn.
7. Powerful software, programming coordinates using numerical and graphical display, coordinate correction and change is convenient, the production process of graphical display patch progress and components, subsidy is convenient.
8. The software USES the database system, different types of PCB programming can be stored, convenient call, a programming of new products, calling for life.
9. The platform, the Y axis, the X axis can be manually move, free movement speed adjustment, realize arbitrary point can manually to arrive, convenient programming.
10. Imported negative pressure detection system, to accurate detection of absorption material, effectively prevent leakage of material, extractor.
11. A negative pressure generator with built-in, low noise, long service life, vacuum pressure constant.
12. The standard configuration: 1 set of industrial control computer, opening four groups, suction nozzle 12;
13. Optional: matchs outside to 8 mm, 12 mm, 16 mm and 24 mm yamaha feeder; Air compressor;
Technical parameters:
|
Machine Model |
WANBO SST-S6LV |
|
The biggest circuit board area |
1200×380mm |
|
Maximum moving range |
X axis 1220mm, Y axis 430mm |
|
Z axis Maximum moving range |
12mm |
|
Typical patch speed |
30000cph-35000cph |
|
Typical LED lens patch speed |
6000cph-15000cph |
|
The theory of maximum patch speed |
50000cph |
|
positionaI accuracy |
±0.05mm |
|
Location way |
Mark point camera + Visual camera positioning |
|
Components can be placed |
0603 above to 7272 resistors and capacitors, and all kinds of 0603 and 3528, 5050, 5630, 5730, meet placement of SOP SOT chip, and compatible with all kinds of high-power chip SMD componets, LED lens placement |
|
Programm method |
Computer graphical programming + visual camera positioning |
|
Feeder applicable |
8mm, 12mm, 16mm and 24 belt type feeder, or vibration plate |
|
Number of feeder |
Standard placed 18pcs feeders of 8mm or 12mm, or 2pcs 4 channels vibration plate |
|
nozzles |
JUKI nozzle 504, 505 and 506 |
|
Product |
LED fluorescent tube, soft light belt, power drive, guardrail tube, module, display and other LED applications |
|
operating system |
WINDOWS XP, WIN 7 |
|
negative pressure |
An external air source 0.55MPA |
|
Power and rate |
220V, 50Hz, 1.2KW |
|
Weight |
1200Kg |
|
Dimension |
2000MM(L)*1050MM(W)*1400MM(H) |
1, Mount: Mount 0603 to 7272 can meet all specifications of SMD LED components. In addition to all the planar LED plane, other electronic components (such as resistors, capacitors) and high power LED and the lens can be produced.
2, precise positioning: positioning block is the most convenient way to position the substrate, the origin of counterpoint, accurate positioning (accuracy less than 0.05mm). Mount angle range of 0-360 degrees, the accuracy of 0.1 degrees. Each suction nozzle is independent of angle, and six element recognition cameras, in addition to LED lamp can mount the traditional., bulb lamp, lamp, lamp, ceiling lamp, guardrail tube, LED drive power, copper lamp series and so on can be freely mounted.
3, high precision: X, Y, W axis are equipped with precision ball screw and guide rail, Z axis 6 sets of imported motor drive, enhance the smooth coordination of equipment movement, reduce abnormal noise, greatly improve the accuracy and speed of the patch.
4, SMT specifications: platform 1200X310mm, applicable to the current market of 99% LED products;
PCB board can be affixed to various shapes, without clamps, can be affixed 1.2-1.5 meters long PCB board
5, the visual system, visual programming software online programming, which is of high precision digital camera camera, there is no need to manually input elements and positioning coordinates; using visual camera automatic identification, to ensure the accuracy of mount.
6: the software interface is simple and elegant, functional and practical, visual software online programming, display all coordinates in the imposition software, and fine-tuning of the coordinates of the point, in order to achieve high precision mount, without manual input element coordinates, fast and convenient, simple and clear, combined with the actual needs of many LED manufacturers R & D design.
7, YAMAHA Feeder: machine configuration 6pcs 8MM YAMAHA Feida (also optional with Fuji electric Feida), long service life, high stability, fast speed
