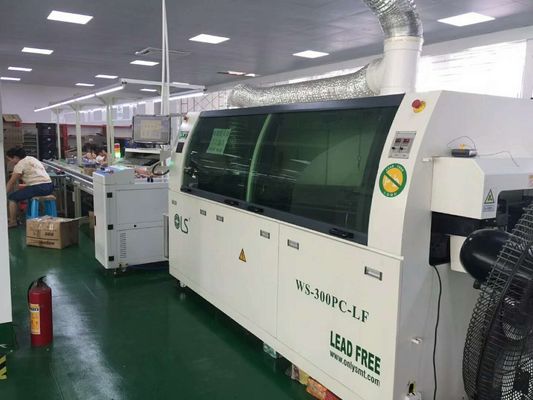

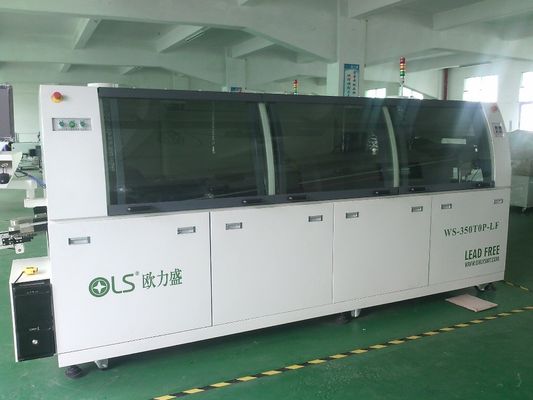

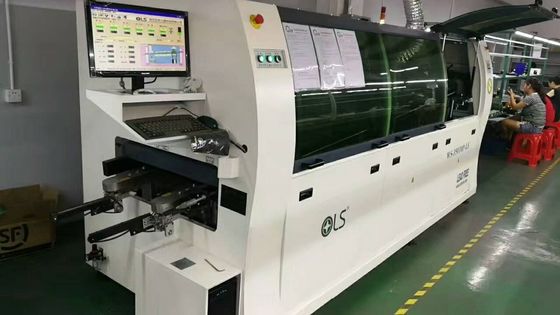

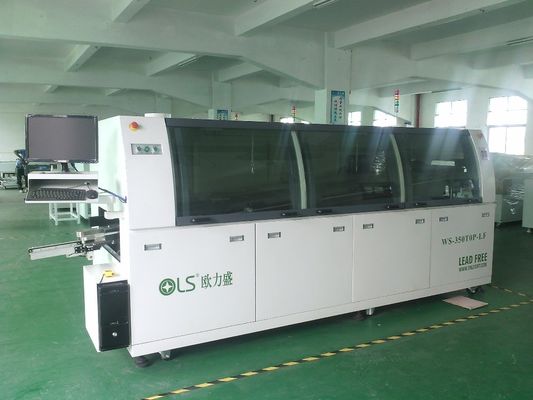

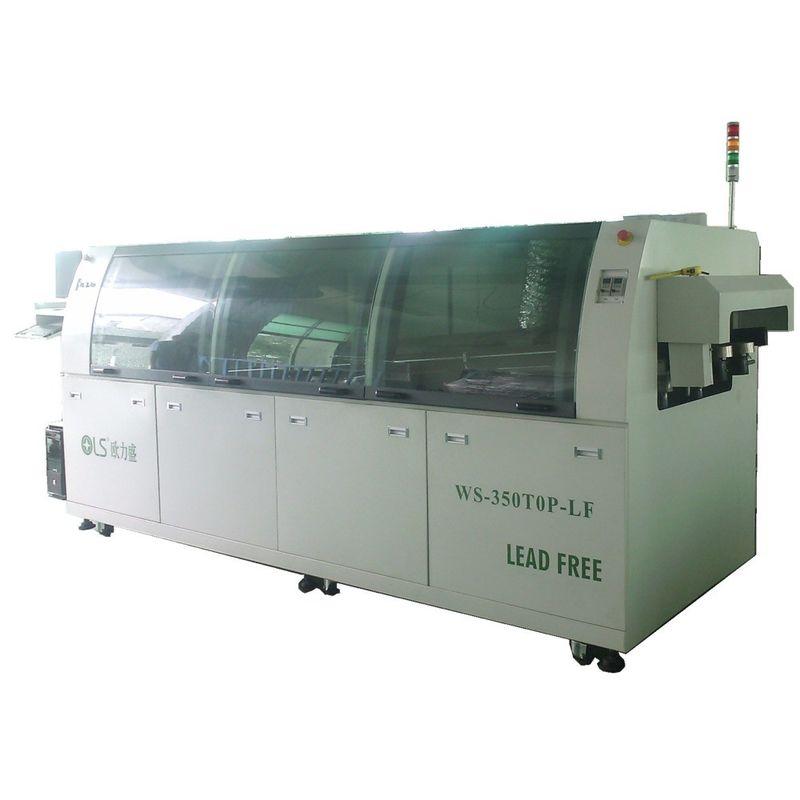

Open - Top Style Wave Soldering Machine Siemens PLC And Touch Screen Controlled

Wave Soldering Machine DIP automatic soldering machine 350TOP plug in components soldering machine

Product name: WS-350PC-LF Computer lead-free dual wave soldering machine

Product Features:

1 open-top style streamlined shell design, beautiful appearance, easy to clean.

2 the use of alloy solder pot materials. Special aluminum rail high strength and hardness, long life.

3 German Siemens PLC + touch screen control technology, to ensure system reliability and stability.

4 lack of rodless air spray device can be automatically adjusted with the width of the PCB, the effective flux conservation economy.

5 tin stove peaks are used stepless electronic frequency control, wave height can be controlled independently.

6 isolated devices, flux fumes from the discharge channel dedicated exhaust and recycling to meet environmental requirements.

7 users can set their own Automatic Turning the date, time, temperature control parameters.

8 with a cooling module (optional cooling fan), temperature compensation module, and a variety of process requirements for lead-free.

9 import mini chemical pump, alcohol cleaning agents, automatic cleaning cycle chain claw.

10 warm-up area modular design, easy to clean and make PCB and component heat evenly and quickly heat up.

11 three sections separate warm-up, fully stimulate the flux activity, get a good soldering results. Direct radiation to heat the bottom of the PCB, heat, long life.

12 patented die-style titanium claw chain, non-stick tin, never deformation, long life, stable and reliable transport PCB.

13 full and transparent viewing window for easy observation of the production and maintenance operations.

14 out of tin stove manual lifting and easy adjustment. The use of back design to prevent misuse damage the machine.

15 transportation system with stepless electronic speed control, PID loop control, the transport speed and stability.

16 can be quickly invoked the stored parameters, operating variables set in the PCB process consistency.

17 over automatically from the wave plate, to minimize the amount of tin oxide.

18 closed-loop temperature control system using PID control, temperature stable and reliable.

19 with short circuit and overcurrent protection system.

Products parameters:
