Multi Zones Surface Mount Technology Machine / Solder Reflow Oven PC Controlled

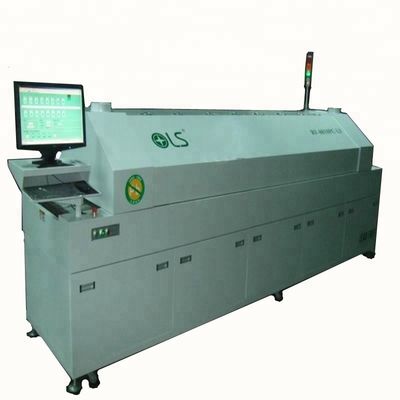

SMT line PC control 8 zone reflow soldering oven 8810PC

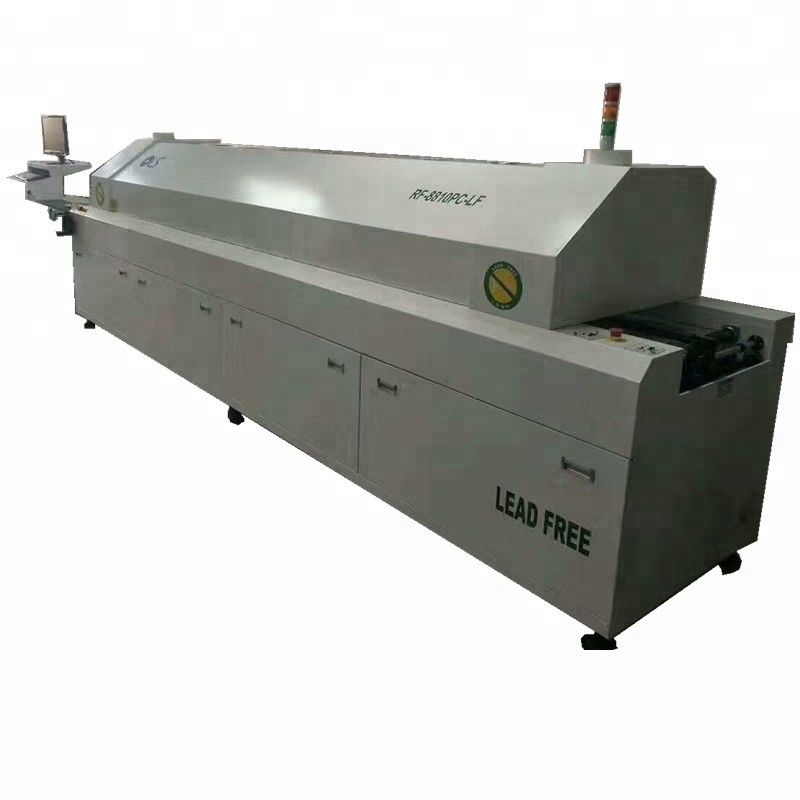

Product name: Large size 8 zone reflow soldering oven 8810PC

Model: 8810PC

Product features:

1. All temperature zones are heated up and down separately; independent hot air circulation, independent temperature control, temperature control accuracy of each temperature zone ± 1 °C.
2. Modular heating structure, effectively preventing the influence of airflow in the temperature range, ensuring uniform heating of components, lateral temperature deviation <±2°C.
3. The upper furnace body is opened by pneumatic lifting, which is safe and reliable for easy cleaning of the furnace.
4. Special long-life nickel-nickel heating wire type heat source, with sufficient power and rapid heating, from room temperature to constant temperature less than 20 minutes.
5. It adopts imported high-speed air motor direct drive to carry out thermal cycle, low noise, low vibration and high thermal cycle efficiency.
6. Adopt PLC industrial control product upper and lower machine control, with first-class stability.
7. It has a double synchronous transmission system for rail chain and mesh belt and a lubrication system.
8. The guide rail is made of special high-quality aluminum alloy with high hardness and high strength, small deformation and high precision.
9. With delay switch protection function to prevent deformation of transmission parts due to uneven cooling.
10. It has power-off protection function to ensure normal output of PCB board after power failure without damage.
11. With over temperature sound and light alarm and emergency braking system.
12. Simplified and traditional Chinese MMI operation interface and artificial intelligence software control, greatly facilitating user's use
13. Complete online temperature test curve and analysis, storage, recall and printing functions.
14. Dedicated temperature acquisition module with high precision and fast speed, with cold junction compensation.
15. Double cooling zone design for lead-free process soldering.
16. With timed automatic shutdown function.
17. Flux recovery unit, no filter design, effectively extending the furnace cleaning cycle.

Product parameters:

3 Zone Reflow soldeing oven

Product parameters
Number of heating area                 3
Heating zone length                    1000mm
Heating mode                              hot air
Cooling zone number                   1
PCB maximum width                    300mm
The left and right mode of transport            (left - right optional)
Belt height                              880 + 20mm
Transmission mode                net
Conveyor belt speed               0-2000mm/min
Power                                      3 line 5 phase 380V or single phase 50/60Hz 220V
Normal power                          4Kw
Working power consumption             Approx1.5Kw

6 Zone Reflow soldering machine

8 Zone reflow soldering oven

Product model: RF-835LS
Product features:

Unique advanced heating system of longevity
1. The heating system with high efficiency and energy saving of Sweden 110 v nickel flipping hair heat pipe, radiation power peak wavelength 4 um, cooperate with curved reflector, high thermal efficiency, fast temperature rise, special forced hot air circulation system structure, make the PCB and components heated evenly, completely eliminate the "shadow effect".

2. Adopts the solid state relay Taiwan yangming large current output, safe, reliable, combined with the temperature controller of fuzzy control, has been monitoring the change of ambient temperature and heat value, with the minimum pulse control heating device, fast response, guarantee + / - 1 ℃, temperature control precision machine error within the plus or minus 2 ℃, the temperature distribution within the length direction of the temperature distribution in the IPC standards.
3. The temperature control adopts imported fuzzy control and PID intelligent computing precision controller, through the PID intelligent operation, automatic control calorific value, the fuzzy control function increase overshoot and inhibiting function and fast response to external heat change function, the fastest speed response to the change of the external heat and temperature through the internal control to ensure more balanced.
4. Heat pipes module design, convenient maintenance and dismantling.
5. The high temperature and high speed motor adopt Taiwan three, wind smoothly, little vibration, low noise.
6. The furnace can be overall open, is advantageous for the chamber of a stove or furnace clean.
7. With super bad, temperature, fault diagnosis, sound and light alarm
8. Power, heat up quickly, from room temperature to constant temperature of about 15 minutes.
9. Special SSR radiator, radiator efficiency is greatly improved, prolong its service life effectively
10. Using high temperature protection system, furnace are made of special materials suitable for lead-free welding, welding area equipped with rosin flux recovery system, protect the environment.

Reliable and stable transmission system
1. The Taiwan STK stepless variable speed motor drive system, electric belt line speed stepless speed regulator, cooperate 1:15 0 STK turbine reducer, smooth operation, the speed is 200-1800 - mm/min stepless adjustable, and have the accurate digital linear velocity of the instructions.
2. Adopt independent wheel structure and flat support, form a complete set of stainless steel mesh belt, smooth operation, speed precision can be up to + 20 mm/min.
Special stainless steel mesh belt b word, durable wear resistant.Use for a long time variant not easily.

Product parameters:
Heating area number,                                                   8/8
Heating zone length,                                                     2800 mm
Heating mode,                                                              full hot air
Number of cooling zone,                                               2
PCB maximum width,                                                    350 mm
Transportation direction,                                               left to right (or right to left)
The height of conveyor belt, 880±20mm
Transmission Mode,                                                    network transmission
Conveyor belt speed,                                                   0-1500mm/min
power supply, 380v  5 line 3 phase 50/60 hz
Start the power,                                                           28kw
Normal work power,                                                     6 kw
Heating time,                                                                about 15 minutes
Temperature control range,                                         at room temperature to 400 ℃
Temperature control mode,                                          temperature meter control
Temperature control precision, ±1℃
PCB temperature deviation, ±2℃
Abnormal alarm,                                                           temperature anomalies
Appearance size (length * width * height),                   4000 * 710 * 710mm
Machine weight,                                                           550 kg

Large Reflow soldering machine guide rail 8 zone with PC control

Solder printer 0.6 meter stencil printer / 1.2 meter stencil printer

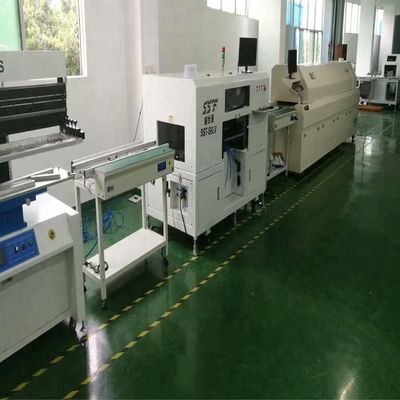

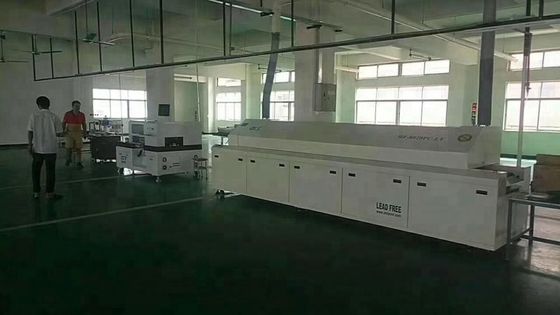

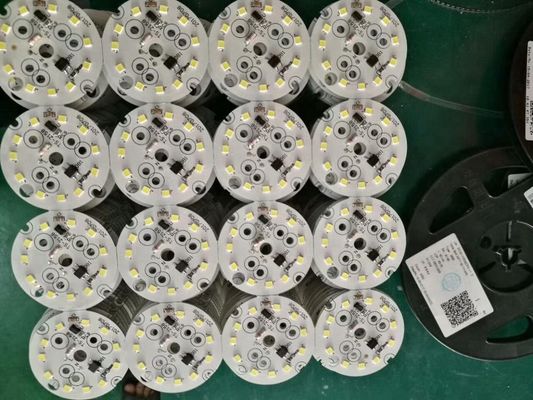

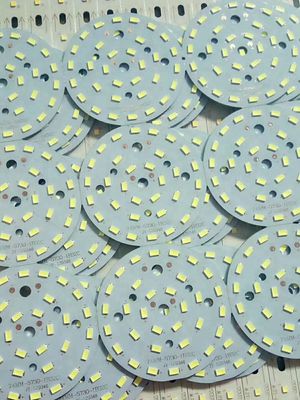

SMT line site
