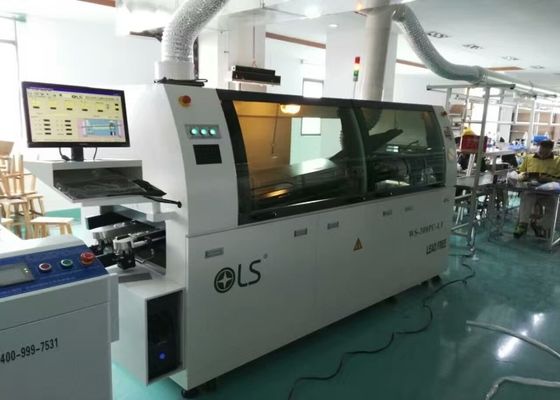

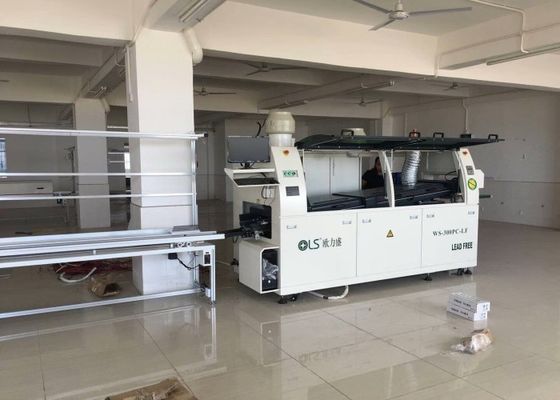

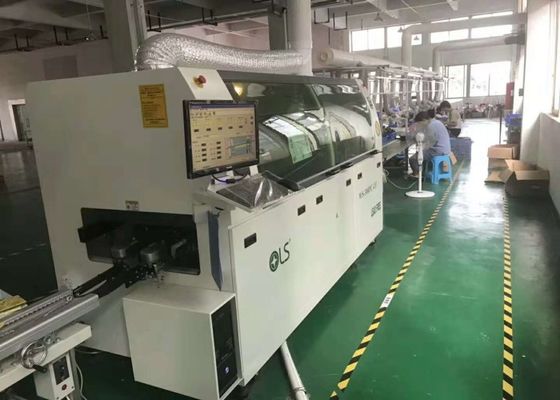

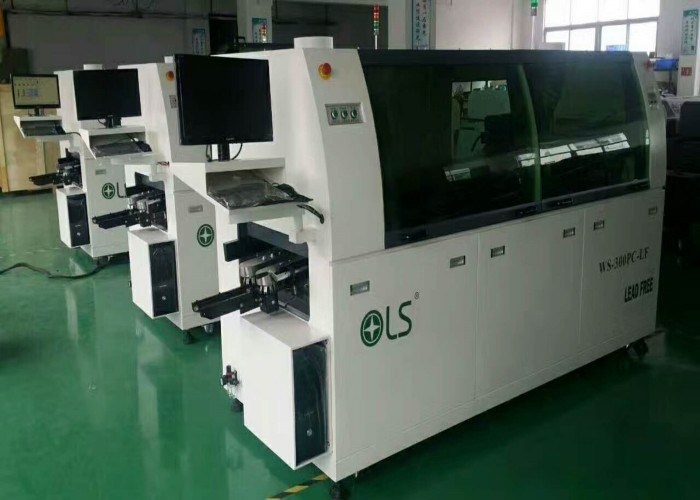

Computer Control Double Wave Soldering Equipment / DIP Soldering Machine

Computer Control Double Wave Soldering Equipment / DIP Soldering Machine

Computer Control Double Wave Soldering Equipment / DIP Soldering Machine
Computer Control Double Wave Soldering Equipment / DIP Soldering Machine Computer Control Double Wave Soldering Equipment / DIP Soldering Machine Computer Control Double Wave Soldering Equipment / DIP Soldering Machine Computer Control Double Wave Soldering Equipment / DIP Soldering Machine

Large Image :  Computer Control Double Wave Soldering Equipment / DIP Soldering Machine Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: WANBO
Model Number: OLS300PC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discuss price
Packaging Details: wooden box package
Supply Ability: 100pcs/month
Detailed Product Description
Product Name: Wave Soldering Machine, Solder Wave Machine PCB Working Width: 0-300mm
PCB Conveyor Direction: Left To Right / Right To Left (optional) PCB Conveyor Speed: 0-2.0m/min
Preheating Zone Length: 1500mm Preheating Zone Number: 3 Stages
Preheating Temperature: 0~250℃ Solder Volume: 150-200KG
Solder Temperature: 0~350℃ Temperature Control Type: Computer+PID
High Light:

smt production line equipment

,

automatic wave soldering machine

300 series computer control double wave soldering machine, DIP soldering machine





300PC wave soldering machine, medium dual wave soldering machine, three sections full hot air heating

Product Name: Standard Touch Screen Lead-Free Double Wave Soldering Machine



1, Model: WS-300PC-LF





2, product parameters

Model Lead-free double wave soldering machine WS300PC
1, the number of peaks 2 peaks
2, the board width Max300mm
3, tin furnace capacity 280KG
4, preheating zone length 1500mm
5, peak height Max12mm
6, the board member foot length Max10mm
7, PCB board transport height 750 ± 20mm
8, starting power 16KW
9, operating power 5KW
10, tin furnace power 9KW
11, preheating power 5KW
12, motor power 0.37KW
13, control method touch screen
14, rack size 2800 * 1200 * 1600mm
15. Dimensions 3650*1200*1650mm
16, product transportation speed 0-2.0m / min
17, preheating zone temperature room temperature -180 ° C
18, heating method, hot air heating
19. Cooling method Axial fan cooling
20, tin furnace temperature room temperature -350 ° C
21, transportation direction left → right / right → left
22, temperature control mode Computer + PID
23, flux capacity Max 5L
24, spray method Stepper motor + ST-6 nozzle, automatic induction spray
25, power supply 3-phase 5-wire system 380V 50HZ (customizable 220V)
26, gas source 4-7KG/CM2 12.5L/Min



3, product features

1. The body's linear design, using spray-jet technology, beautiful and durable

2. Three sections of independent 1.5 m preheating zone, full hot air infrared preheating, with spotlight compensation device, so that the PCB obtains good welding effect

3. Patented die-cast titanium alloy chain claw, non-stick tin, never deformed, long life

4. Full viewing window for easy operation and maintenance

5. Tin furnace lifting and entry, automatic adjustment and manual adjustment. Backrest design prevents accidental damage to the machine

6. Equipped with cooling module, temperature compensation module, suitable for lead-free soldering and various process requirements

7. The company's newly invented ultra-stable, ultra-high filter source generator greatly reduces the occurrence of tin-current oscillation and turbulence in the flow channel. The tin wave is stable, the oxidation amount is greatly reduced, and the maintenance is simple.

8. The transmission mechanism adopts precision modular design, accurate transmission, long service life and easy maintenance.

9. Rosin spray unit can be pulled out and can be removed for easy cleaning and maintenance

10. Isolated spray device, flux fumes are exhausted from dedicated ducts

11. Powerful parameter library function, various PCB process parameters can be called as needed

12. Professional industrial computer control system to ensure system reliability and stability

13. Automatic switch on and off according to the date, time and temperature control parameters set by the user

14. System fault self-diagnosis, the cause of the fault is automatically displayed, and the troubleshooting method is available at any time.

15. The heating temperature adopts PID closed-loop control, and the temperature control is stable and reliable.

16. Closed-loop automatic tracking spray system, automatic adjustment of spray width and spray time, and advance and extended spray time on demand

17. Automatically wave the board to minimize the amount of tin oxidation

18. The transport system uses clutch force limiting + current limiter double protection

19. Short circuit and overcurrent protection system

20. Transport system closed loop control. Stepless speed regulation. precise control of PCB preheating and welding time.



Computer Control Double Wave Soldering Equipment / DIP Soldering Machine 0



4, installation and use conditions

1. Working voltage: AC380V±10%; three-phase five-wire system; 50Hz.

2. Ambient temperature: 5 to 40 ° C;

3. Relative humidity: not more than 85% RH;

4. Power switch: air switch

5. Installed power: 15KW

6. The ground level is flat, and the surrounding environment should be free from strong vibration and corrosive gases.



5, wave soldering process

Pre-weld preparation à component insertion à spray solder à preheat à wave soldering à cooling à Collecting PCB.



6, after sales service

Free warranty period 12 months
Warranty range All accessories
Warranty method 1, telephone communication, deliver accessories to guide replacement 2, on-site service
Installation, commissioning Door installation, commissioning or remote assistance installation and commissioning
After-sales reaction time Deliver accessories (send within 1 day), on-site service (departure within 4 hours of working hours)



Computer Control Double Wave Soldering Equipment / DIP Soldering Machine 1Computer Control Double Wave Soldering Equipment / DIP Soldering Machine 2
