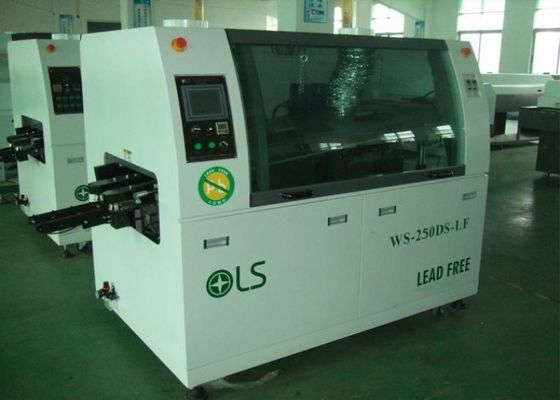

High Efficiency Mini Wave Soldering Machine Economic Type With Touch Screen

High Efficiency Mini Wave Soldering Machine Economic Type With Touch Screen

High Efficiency Mini Wave Soldering Machine Economic Type With Touch Screen
High Efficiency Mini Wave Soldering Machine Economic Type With Touch Screen High Efficiency Mini Wave Soldering Machine Economic Type With Touch Screen High Efficiency Mini Wave Soldering Machine Economic Type With Touch Screen High Efficiency Mini Wave Soldering Machine Economic Type With Touch Screen

Large Image :  High Efficiency Mini Wave Soldering Machine Economic Type With Touch Screen Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: WANBO
Model Number: WS250DS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discuss price
Packaging Details: wooden box package
Supply Ability: 100pcs/month
Detailed Product Description
Product Name: Wave Soldering Machine, Solder Wave Machine PCB Working Width: 0-250mm Max. 300mm Optional
PCB Conveyor Direction: Left To Right / Right To Left (optional) PCB Conveyor Speed: 0-2.0m/min
Preheating Zone Length: 1500mm Preheating Zone Number: 2 Stages
Preheating Temperature: 0~250℃ Solder Volume: 150-200KG
Solder Temperature: 0~350℃ Temperature Control Type: Touch Screen +PID
High Light:

wave soldering equipment

,

smt production line equipment

mini wave soldering machine 250 series with touch screen, wave soldering machine price





Product name: wave soldering machine, wave soldering machine price, wave soldering, mini wave soldering machine, solder wave machine

Model: WS-250PC/DS/LS-LF Economic type dual wave soldering machine

Customer can choose PC control, touch screen control, or Key setting type machine.



Product Features:

  1. Styling streamlined shell design, beautiful appearance, easy to clean.
  2. Solder furnace is made of alloy material. High strength and high hardness aluminum alloy guideway with long service life.
  3. Use Siemens PLC computer control technology to ensure the reliability and stability of the system.
  4. The rodless cylinder spray device can automatically adjust with the width of PCB, and effectively save flux.
  5. The wave peak of tin furnace is controlled by stepless electronic frequency conversion, and the height of wave peak can be controlled independently.
  6. Special flux isolation device, flux smoke from the special exhaust air and recovery channels to meet environmental requirements.
  7. Programmable automatic switch machine date, time, temperature control parameters.
  8. Equipped with cooling module (optional air cooler, temperature compensation module, suitable for lead-free and various process requirements.
  9. Imported micro chemical pump, propanol cleaning agent, automatic circulation cleaning chain claw.
  10. Two-stage independent preheating, ceramic heating pipe device, fully activated flux activity. Direct heat radiation to the bottom of the PCB plate, fast heating, long service life.
  11. Patented die-casting titanium alloy chain claw, non-stick tin, never deformation, long life, transport PCB stable and reliable.
  12. The whole process transparent observation window, convenient observation production and maintenance operation.
  13. Tin furnace manual lifting and entry and exit, easy to adjust. Adopt backrest design to prevent maloperation of damaged machine.
  14. The transportation system adopts stepless electronic speed regulation pid closed-loop control, and the transportation speed is stable.
  15. The over plate automatically starts wave to minimize the amount of tin oxidation.
  16. The temperature control system adopts PID closed loop control mode, and the temperature control is stable and reliable.
  17. The stored parameters can be quickly called, and the operating variables are set in the PCB with good process consistency.
  18. With short circuit and overcurrent protection system.

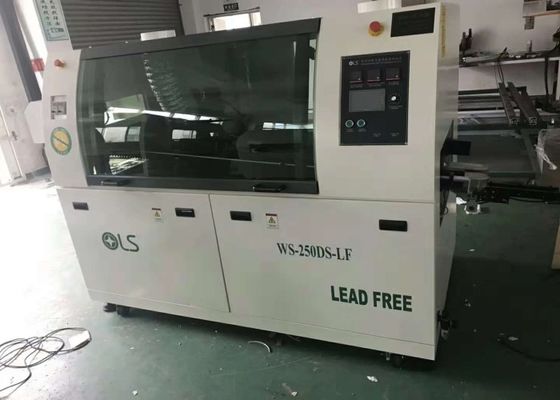

High Efficiency Mini Wave Soldering Machine Economic Type With Touch Screen 0





Products parameters:



PCB Working width Max. 250mm
PCB conveyor height 760±10mm
PCB conveyor direction Left to right / right to left (optional)
PCB conveyor speed 0-2.0m/min
Preheating zone length 1500mm
Preheating zone number 2 stages
Preheating temperature 0~250℃
Solder volume 150-200KG
Solder temperature 0~350℃
Temperature control type Touch screen +PID
Flux storage tank Max:5.2L
Power 3 phase 5 wire 380V
Power for heating up 12KW
Power for operation 4KW
Air supply 4-6kg/cm2 12.5L/min
Weight 650KG
Dimensions L*W*H 2700*1200*1650mm

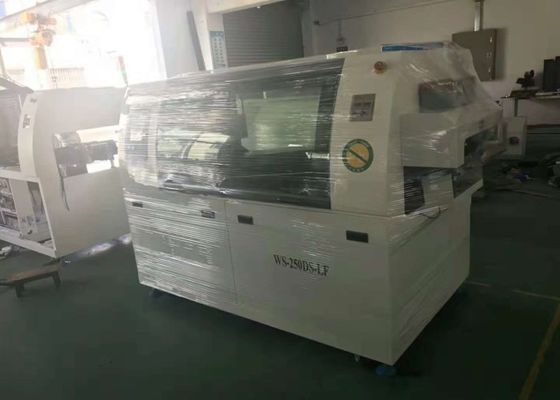

High Efficiency Mini Wave Soldering Machine Economic Type With Touch Screen 1

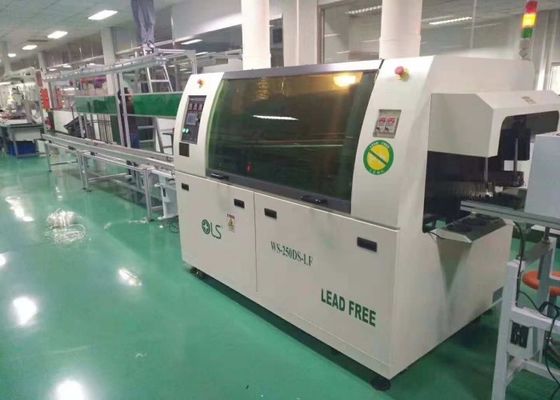

High Efficiency Mini Wave Soldering Machine Economic Type With Touch Screen 2
