| Product Name: | Wave Soldering Machine, Solder Wave Machine | PCB Working Width: | 0-200mm Max. 200mm Optional |
|---|---|---|---|
| PCB Conveyor Direction: | Left To Right / Right To Left (optional) | PCB Conveyor Speed: | 0-1.8m/min |
| Preheating Zone Length: | 700mm | Preheating Zone Number: | 1 Stages |
| Preheating Temperature: | 0~200℃ | Solder Volume: | 100-150KG |
| Solder Temperature: | 0～300℃ | Temperature Control Type: | Touch Screen +PID |
| High Light: | wave soldering equipment,automatic wave soldering machine |
||
nimi wave soldering machine 200 series economic type touch screen control
Product name: wave soldering machine, wave soldering machine price, wave soldering, mini wave soldering machine, solder wave machine
Model: WS-200PC/DS/LS-LF Economic type dual wave soldering machine
Customer can choose PC control, touch screen control, or Key setting type machine.
|

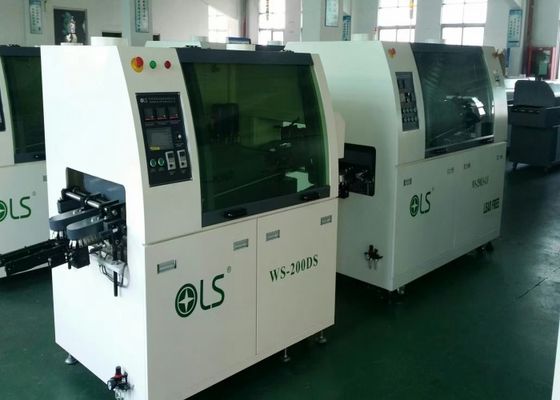

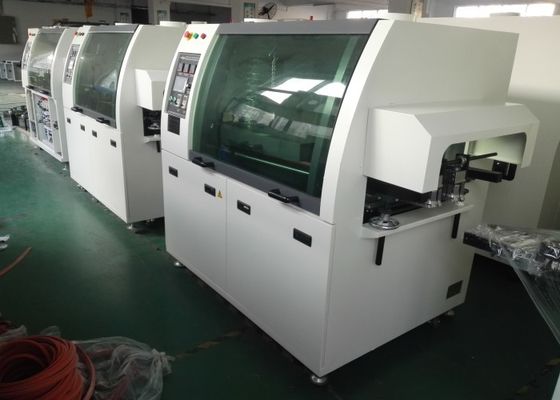

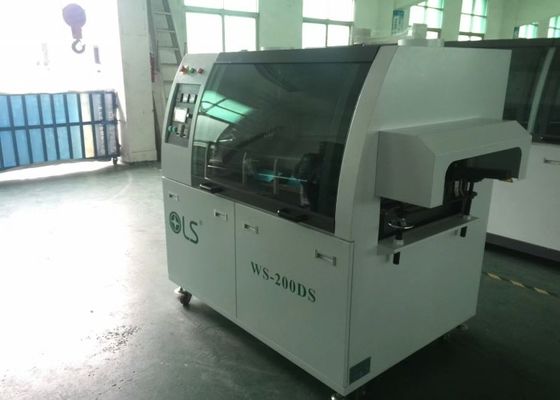

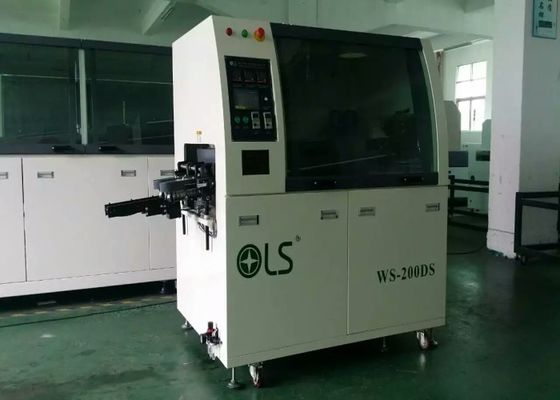

WS-200DS wave soldering machine
|
||||
| Technical Parameters | ||||
| Model | Wave soldering machine WS-200DS | |||
| Substrate width | Max200mm | |||
| PCB board transport height | 760±10mm | |||
| PCB board transport speed | 0-1.8M/Min | |||
| Preheating zone length | 700mm | |||
| Number of preheating zones | 2 | |||
| Preheating zone power | 4kw | |||
| Preheating zone temperature | Room temperature - 200 ° C | |||
| heating method | Full hot air | |||
| Number of cooling zones | 1 | |||
| cooling method | Natural wind cooling | |||
| Tin furnace power | 6kw | |||
| Tin furnace tin content | 120-150KG | |||
| Tin furnace temperature | Room temperature - 300 ° C | |||
| Transportation direction | about | |||
| Temperature control method | Temperature control table control | |||
| Machine control mode | Instrument control + touch screen | |||
| Flux capacity | Max4.2L | |||
| Spray method | Japan SA-6 nozzle | |||
| power supply | 3-phase 5-wire system 380V/220 | |||
| Starting power | 10kw | |||
| Normal operating power | 3kw | |||
| Gas source | 4-7KG/CM2 12.5L/Min | |||
| Rack size | L1450×W1100×H1600MM | |||
| Dimensions | L2250×W1100×H1600MM | |||
| weight | Approx 550kg | |||
| Spray part | ||||
| Spray Nozzle |
Spray range 20-65mm fan surface adjustable, Spray height 50-200mm adjustable, maximum flow rate 60ml/min |
|||
| Spray drive system | Stepper motor controls the mobile system, further improving the quality | |||
| Spray drive unit | Imported filters, control valves and fittings | |||
| Preheating unit | ||||
| Extended preheating zone | Total length 700mm, two-stage full hot air temperature independent control | |||
| Temperature control mode | Temperature meter | |||
| Heating unit | Hot air control, imported Taiwan heating core | |||
| Preheating power | Total power 4kw | |||
| Tin furnace parts | ||||
| Tin furnace material | Lead-free material 3MM thick | |||
| Tin furnace tin volume | 120-150kg | |||
| Tin furnace temperature range | Room temperature - 300 ° C | |||
| Height adjustment range | 0—50mm | |||
| Tin furnace power | 6kw | |||
| Tin furnace move mode | Manual | |||
| Wave spray head | Guaranteed plane tin wave | |||
| Economical operation | Through the PLC and photoelectric switch control, the plate sprays the wave function to reduce unnecessary waste. | |||
| Wave motor | Taiwan Taichuang company high temperature motor, peak height digital adjustment | |||
| Heating unit | Special long life, special solid state relay, tin liquid heating are ± 2 ° C | |||
| Cooling system (standard) | ||||
| Cooling method | Natural wind cooling | |||
| PCB transfer system | ||||
| High strength wear-resistant rail | The special aluminum guide rail uses high temperature and wear resistance, and the special thermal compensation anti-deformation and telescopic structure of the stainless steel guide rail ensures that the guide rail does not deform or not. | |||
| Rail parallelism | 0.5mm | |||
| Widening | Manual adjustment | |||
| C/V speed setting minimum unit range | Minimum unit 10mm/min 0-1800mm/min | |||
| C/V speed deviation range | Electronic closed loop control within 0-10mm/min | |||
| Chain tensioning device | Sprocket adjustment tension | |||
| Transport motor | Three-phase inverter 90W motor | |||
| After-sales service responsibility area | China region | |||
Main parts
| No. | Name | Maker |
| 1 | Stepper motor | Ying Na Shi |
| 2 | PLC | Huibang |
| 3 | 90W transport motor | STK |
| 4 | High efficiency square heating wire | Taiwan Zhan |
| 5 | Tin furnace heating tube | Taiwan Zhan |
| 6 | Main switch | Zhengtai |
| 7 | Contactor and current limiter | Zhengtai |
| 8 | Intermediate relay | Schneider, France |
| 9 | Touch screen controller | Visual control |
| 10 | Frequency converter | Delta |
| 11 | Power button and indicator | And spring |
| 12 | Temperature probe | Japanese electric heating |
| 13 | solid state relay | Yangming, Taiwan |
| 14 | Photoelectric sensor | SICK/OMROM |
| 15 | Rosin nozzle | ST-6 |
| 16 | Hot air motor | Taiwan Mitsukoshi |
| 17 | Tin furnace wave motor | Taiwan Taichuang |
