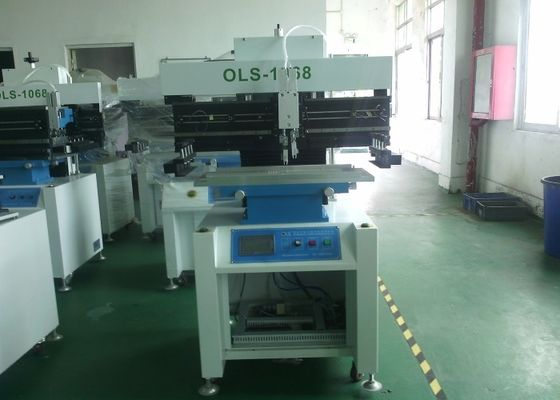

0.6m LED Solder Paste Screen Printer Easy Operated With Servo System

0.6m semi automatic screen printer, stencil printer, solder paste printer machine for LED

SMT pick and place machine

0.6 meter light strip semi-automatic printing machine

1, Use the servo system for easy and accurate positioning.
2, Imported linear high-speed guide rail and imported speed control motor to drive the scraper seat to ensure printing accuracy.
3, The printing blade can be rotated up to 45 degrees to facilitate the cleaning and replacement of the printing stencil and scraper.
4, The blade holder can be adjusted back and forth to select the appropriate printing position.
5, The combined printing platen has fixed groove and PIN, easy to install and adjust, suitable for single and double panel printing.
6, The school version uses steel mesh to move, combined with printing (PCB) X, Y, Z. Correcting fine-tuning is quick and easy.
7, PLC and touch screen man-machine interface control, simple, convenient and more suitable for human-machine dialogue.
8, One-way and two-way, multiple printing methods can be set.
9, With automatic counting function, it is convenient to produce output statistics.
10, The blade angle is adjustable, steel scraper and rubber scraper are suitable.
11, The man-machine interface has a screen saver function to protect the life of the human-machine interface.
12, With a unique programming design, the printing blade holder is easy to adjust.
13, Printing machine speed man-machine interface display, can be digitally adjusted and controlled.


Technical parameters:

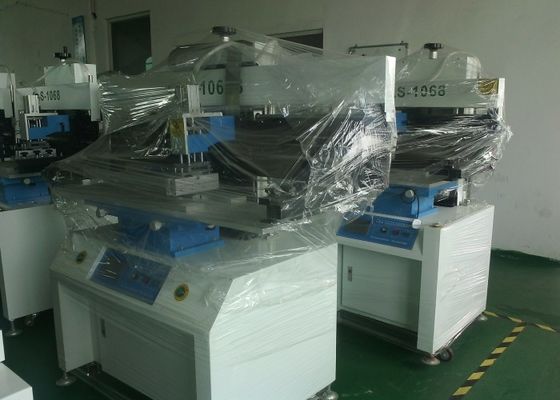

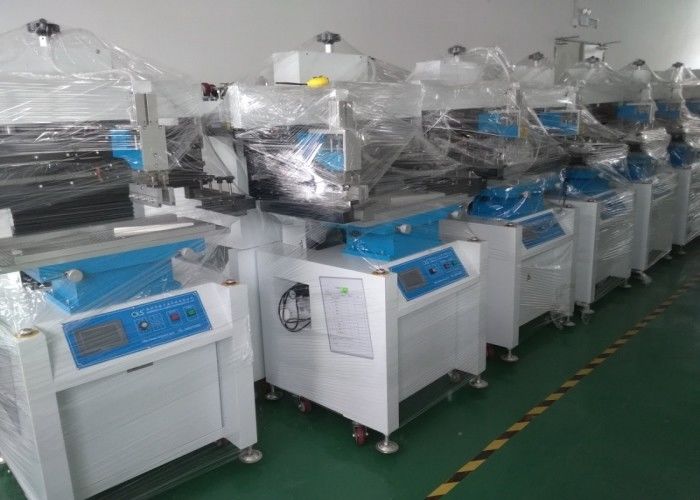

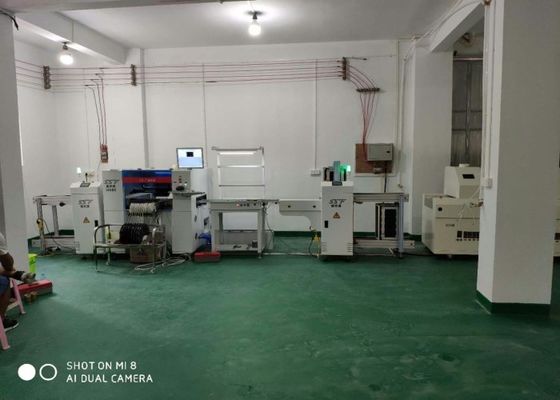

 Factoty picture and customer site.
