| Product Name: | Smt PCB Conveyor | Power: | AC220V, 50Hz |
|---|---|---|---|
| Speed: | 0-10000mm/min | Width: | 0-350mm |
| High Light: | pcb handling equipment,pcb conveyor |
||

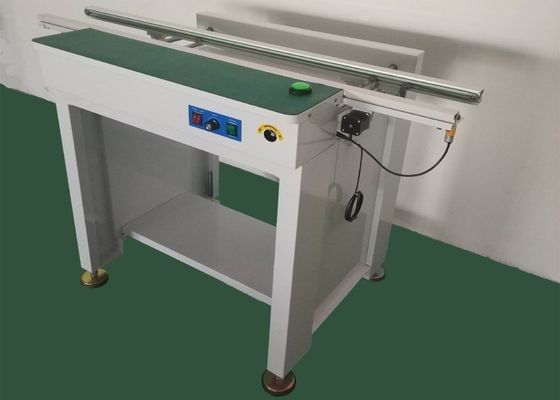

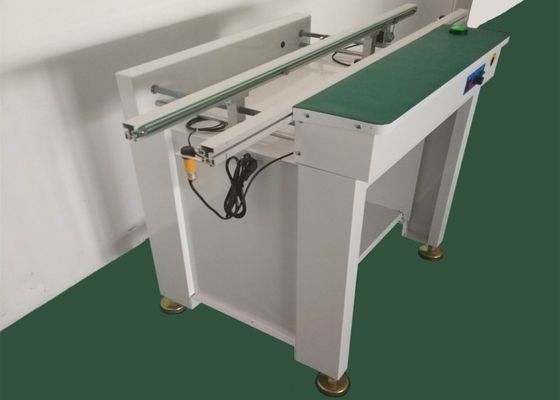

PCB Conveyors for sutomatic SMT Assembly line linking, inspection and buffering conveyors
Product name: smt pcb conveyor, Adjustable inline conveyor for smt line
Features
1. Taiwan WTW speed motor control;
2. Connection length 1000mm 1200mm 1500mm 2500mm optional
3. Green flat belt transmission;
4. Special aluminum profile rails;
5. Front and rear workbench with special aluminum profile protection;
6. Gear and rack widening structure;
7. Double imported photoelectric switch; equipped with signal communication interface
8. Relay control
9. Surface treatment: electrostatic spray.
10. PCB width 50-300mm
11. Left to right;
12. Front rail fixing
13. The whole machine is sprayed and processed, and the color is gray.
14. With fluorescent lamps, process instructions.
SPECIFICATIONS
| PCB max width | 350mm |
| Transfer height | 880 ± 30 mm |
| Transfer speed | 0-1500mm/Min |
| Control mode | Relay sequence control |
| Working mode | Manual and automatic working modes, can communicate with the front or the rear |
| Power | 220V,single phase,50/60Hz |
| Power rate | 40W |
| weight | Approx.50kg |
| dimension(L×W×H) | L1200×W550×H1000mm |
