Microcomputer Control Automatic PCB Unloader For SMT Assembly Line

Microcomputer Control Automatic PCB Unloader For SMT Assembly Line

Microcomputer Control Automatic PCB Unloader For SMT Assembly Line

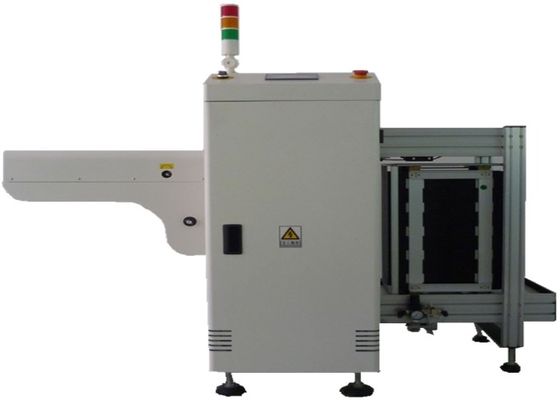

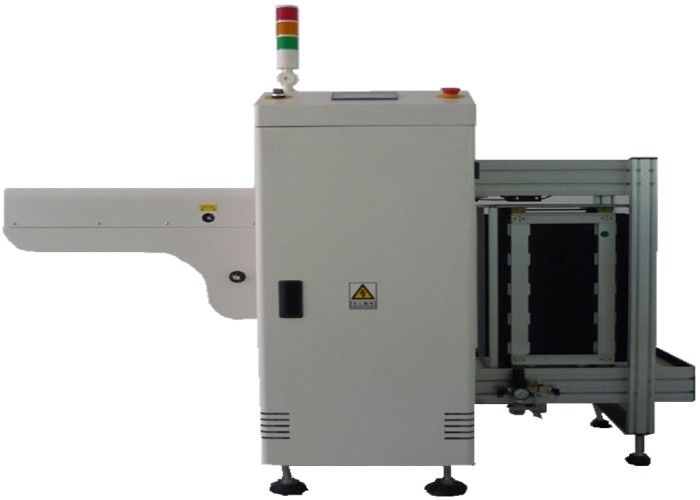

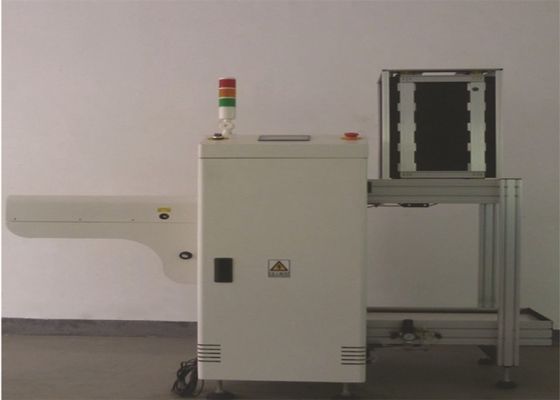

Microcomputer Control Automatic PCB Unloader For SMT Assembly Line Microcomputer Control Automatic PCB Unloader For SMT Assembly Line Microcomputer Control Automatic PCB Unloader For SMT Assembly Line Microcomputer Control Automatic PCB Unloader For SMT Assembly Line

Large Image :  Microcomputer Control Automatic PCB Unloader For SMT Assembly Line Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: WANBO
Model Number: UD300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discuss price
Packaging Details: Stretch film packing
Supply Ability: 1000pcs/month
Detailed Product Description
Product Name: Smt PCB Loader Power: AC220V, 50Hz
Speed: 0-2000mm/min Width: 0-350mm
High Light:

pcb handling equipment

,

pcb conveyor

Product name: smt pcb unloader, Adjustable inline conveyor for smt assembly line



Automatic PCB Unloader





Features:

● Microcomputer control, stable and reliable work;

● LCD screen display, menu operation interface, convenient man-machine dialogue;

● Multiple sound and light alarm functions;

● Standard bins can be used, which is highly versatile;

● The rack lifting step can be set according to the thickness of the PCB;

● The pusher has a built-in push-plate mechanism, eliminating the need to buy a push-pull machine separately;

● With automatic counting function, it is convenient for production statistics;

● Equipped with signal communication structure, it can be connected to other machines online.



Model UD300
Rack size(mm) 320*350*570mm
PCB size(mm) 50*50~250*330*2mm
PCB thickness(mm) <2mm
PCB load time(s) Around 6 seconds
Rack changetime(s) Around 30s
Transport direction Left ~ right or right ~ left
Number of BOX 2(or customer requirements)
Transport height 900+-30mm(or requirements)
Transport motor 15W motor
Lift down motor 90W motor
Control system PLC control , photoelectric sensor induction start
Control panel Touch screen control panel
Lifts Ball screw lifting, aluminum alloy lifting and lowering platform
Closing cylinder cylinder to do PCB board push rod, clamping cylinder
Translation unit using motor and linear guide movement
Transmission chain material frame in and out of the track
The frame material welded with gold plate and the surface is electrostatically sprayed with computer gray.
Standard signal standard four-core signal cable, can be directly connected to other devices.
Power supply Single phase AC220V/50/60HZ
Air 4-6Kgf/cm2
Dimension 1800*850*1250mm



Microcomputer Control Automatic PCB Unloader For SMT Assembly Line 0

Microcomputer Control Automatic PCB Unloader For SMT Assembly Line 1







Features


1. Taiwan WTW speed motor control;
2. Connection length 1000mm 1200mm 1500mm 2500mm optional
3. Green flat belt transmission;
4. Special aluminum profile rails;
5. Front and rear workbench with special aluminum profile protection;
6. Gear and rack widening structure;
7. Double imported photoelectric switch; equipped with signal communication interface
8. Relay control
9. Surface treatment: electrostatic spray.
10. PCB width 50-300mm
11. Left to right;
12. Front rail fixing
13. The whole machine is sprayed and processed, and the color is gray.
14. With fluorescent lamps, process instructions.



Second, SPECIFICATIONS

PCB max width 350mm
Transfer height 880 ± 30 mm
Transfer speed 0-1500mm/Min
Control mode Relay sequence control
Working mode Manual and automatic working modes, can communicate with the front or the rear
Power 220V,single phase,50/60Hz
Power rate 40W
weight Approx.50kg
dimension(L×W×H) L1200×W550×H1000mm



Microcomputer Control Automatic PCB Unloader For SMT Assembly Line 2

Microcomputer Control Automatic PCB Unloader For SMT Assembly Line 3Microcomputer Control Automatic PCB Unloader For SMT Assembly Line 4
