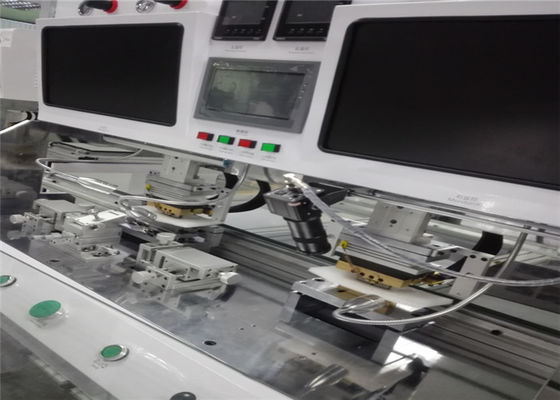

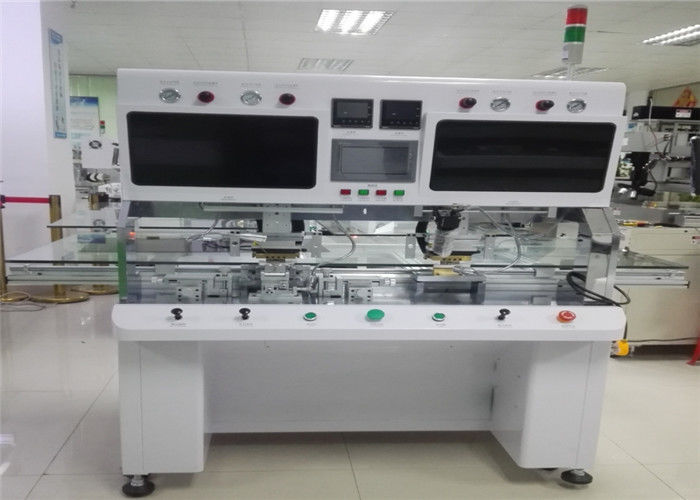

Double Head Open Cell 1.2KW COF Ic ACF Bonding Machine

The system control is: Panasonic - PLC control (single)

Production parameters have store brands on the market are samsung, LG, sharp, chi mei, auo, huaxing photoelectric, Hitachi, hanyu display, Huasheng, Zhonghua etc. Four different temperature set points starting temperature, the temperature of the first paragraph, the second section temperature, cooling temperature.PLC and touch screen communication, can according to production needs to extend the production process automatic control function. System automatically detect, abnormal alarm display function, make the equipment maintenance more quickly.

The stability control is: Panasonic - TC2

Imported temperature sensing line and Panasonic's newest chips (TC2) make more accurate temperature control, with fast heating time, temperature precision higher characteristic, and add heating curves and parameters of synchronous display.

The operating interface is: WV full-color PDA (single communication)

6.5 -inch intelligent man-machine interface, programmable controller (PLC) control system, make the equipment operation is stable and reliable.

Heating method: pulse heating mode

Fast heating/cooling and auxiliary cooling function. High quality titanium alloy head, automatic temperature compensation function, make the temperature more accurately.

High precision counterpoint: micrometer counterpoint

Equipped with advanced optical alignment system, fully satisfy the product clear counterpoint and production of precision, para X, Y, Z axis adjustment adopts high-precision micrometer regulator, slippery course synchronous operation, ensure that para a higher precision.19 inches large screen display contrapuntal line electrode, makes the registration faster, more generous appearance.

The size of the maintenance and brand:

Unlimited size and the screen card TFT LCD, LED screen, TAB, COG and PCB bonding.

Repair the fault:

Vertical, horizontal, vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, horizontal, vertical half and half, fault, and so on.

880PS models is exclusively to domestic original installed after-sales service and a number of patented products.

Features:

1, PLC control, pulse heating mode, combined with titanium alloy extrusion head, rapid heating and rapid cooling, can be set up four heating, accurate temperature control.

2, 5.7 "color touch screen LCD display input, realizing the temperature curve, according to the Chinese menu, all the parameters set browse concise and straightforward.

3, large load platform, stepper motor drive, multiple IC can be preset position, the platform automatically move the pressure to stay.

4, para way under the high magnification camera system, ensure that the product clearly counterpoint.

5, powerful software, perfect the system debugging, automatically detect fault and alarm function.

Application: suitable for 12-80inch TFT panel and TAB, FPC and LCD or PCB board combination bonding.

Technical parameters:

Q1:If I order today, how long it takes for the shipment?

A: Our dilivery time is about 7-10days after accept your payment.

Q2. What’s the payment terms?

We accept Trade Assurance, credit card ,T/T, 50% upon order placed, 50% before shipment.

Q3.Can I get a sample?

No. machine is big item. not support sample.

Q4.Can I get training?

Yes. Training is free in our factory. Customer can study all technology and repairing for 1 week. Also we can send traning video for customer self learning.

Q5. Is there accessories with machine?

Yes. 21 items of accessories included with machine. Customer can start repairing work easily when receive machine.
