25000-30000CPH 6 Heads 1.2KW LED Pick And Place Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Customize: | Yes | Speed: | 25000CPH-30000CPH |
|---|---|---|---|
| Resolution: | 0.05mm | Feeder: | 12pcs Of 8mm Feeders |
| Weight: | 1200KG | Power Supply: | 220V |
| Port: | Shenzhen | Product Name: | LED Pick And Place Machine |
| Placement Chip: | 2835, 0805, 1206 IC | ||
| High Light: | 30000CPH 6 Heads Electric Feeder,1.2KW Smt Pick Place Machine |
||

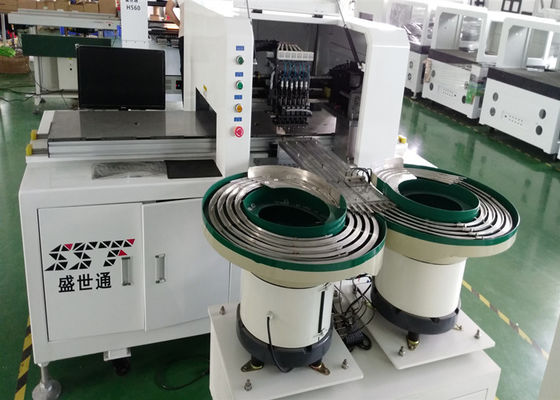

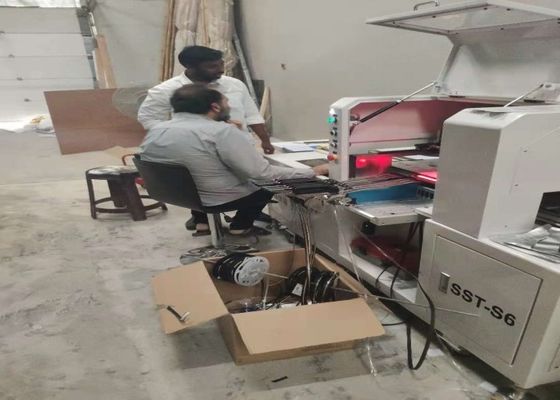

LED pick and place machine 6 heads 25000-30000CPH electric feeder
Product main features:
1. The platform USES the Japanese panasonic servo motor, imported orbit, ensure the stability and control precision of mobile platform.
2. The X, Y axis adopt panasonic servo drive, with imported linear guide, ensure the patch of high precision, high speed, the stability of the first-class.
3. 4 sets high speed post opening work at the same time, greatly improve the equipment performance. Under the suction head adopt the imported guide rail, high precision and long durability.
4. Easy to understand way of graphical programming, greatly improve the convenience of operation, automatic visual auxiliary positioning positioning, accurate, convenient.
5. The selection of a variety of batcher, can satisfy the requirement of different LED packaging components of SMT.
Technical parameters:
| Machine Model | WANBO SST-S8LV |
| The biggest circuit board area | 1200×380mm |
| Maximum moving range | X axis 1220mm, Y axis 430mm |
| Z axis Maximum moving range | 12mm |
| Typical patch speed | 30000cph-35000cph |
| Typical LED lens patch speed | 6000cph-15000cph |
| The theory of maximum patch speed | 50000cph |
| positionaI accuracy | ±0.05mm |
| Location way | Mark point camera + Visual camera positioning |
| Components can be placed | 0603 above to 7272 resistors and capacitors, and all kinds of 0603 and 3528, 5050, 5630, 5730, meet placement of SOP SOT chip, and compatible with all kinds of high-power chip SMD componets, LED lens placement |
| Programm method | Computer graphical programming + visual camera positioning |
| Feeder applicable | 8mm, 12mm, 16mm and 24 belt type feeder, or vibration plate |
| Number of feeder | Standard placed 18pcs feeders of 8mm or 12mm, or 2pcs 4 channels vibration plate |
| nozzles | JUKI nozzle 504, 505 and 506 |
| Product | LED fluorescent tube, soft light belt, power drive, guardrail tube, module, display and other LED applications |
| operating system | WINDOWS XP, WIN 7 |
| negative pressure | An external air source 0.55MPA |
| Power and rate | 220V, 50Hz, 1.2KW |
| Weight | 1200Kg |
| Dimension | 2000MM(L)*1050MM(W)*1400MM(H) |
