Clean Room 1.8 Meter 3S Shoe Sole Washing Machine

Clean Room 1.8 Meter 3S Shoe Sole Washing Machine

Clean Room 1.8 Meter 3S Shoe Sole Washing Machine
Clean Room 1.8 Meter 3S Shoe Sole Washing Machine

Large Image :  Clean Room 1.8 Meter 3S Shoe Sole Washing Machine Get Best Price

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOSST
Model Number: YH200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: discuss price
Packaging Details: wooden box package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs per month
Detailed Product Description
Customize: Yes Package Type: Wooden Box Package
Warranty: 1 Year Material: Stainless Steel
Power Supply: AC 220V Length: 2m
Option Parts: Hand Rail Working Mode: Automatic Working
Cleaning Speed: 3s One Person Water Drain: Automatic
High Light:

1.8 Meter Sole Cleaning Machine

,

3S Shoe Sole Cleaner

2 m Intelligent Clean Room Shoe Sole Cleaning Machine



Advanrage:

To solve the problems of sole cleaning, We develop this intelligent shoe sole cleaning machine.
Yuhao sole cleaning machine use advanced bush technics and unique water recycle system. Can clean the dust of the soles quickly when the employee walk trough the machine. Fast, cleanly, protect the environment. One time investment, long-time benifit. it also can reduce the cost of the production. It can be instaled on different entrance of the workshop, block the dust out of the workshop, and protect the environment.
Yuhao soles cleaning machine can provide soles cleaning solution for electronic, food, semiconductor, vehicle, medical industry. The machine can be customized on customer’s floor plan.
Intelligent work, automatic sensors, save the energy , reduce the cost.



Specification:

Part NO. YH-W100 YH-W200 YH-W300
size(mm) 1000*760*135 2000*760*135 3000*760*135
Cleaning area size(mm) 370*520 900*520 1700*520
Drying area size(mm) 360*510 640*510 1030*510
Entry water temperature(℃) 0-40 0-40 0-40
Volume of tank (L) 30 40 50
Voltage AC220V 50HZ AC220V 50HZ AC220V 50HZ
Power of Motor 180W 180W 180W
Power of pump 100W 100W 100W
Current 1.5A 1.5A 1.5A
Safety protection short circuit overload short circuit overload short circuit overload
Noise <60db <60db <60db
Maximum load 400kg 400kg 400kg
Stainless steel handrail optional optional optional

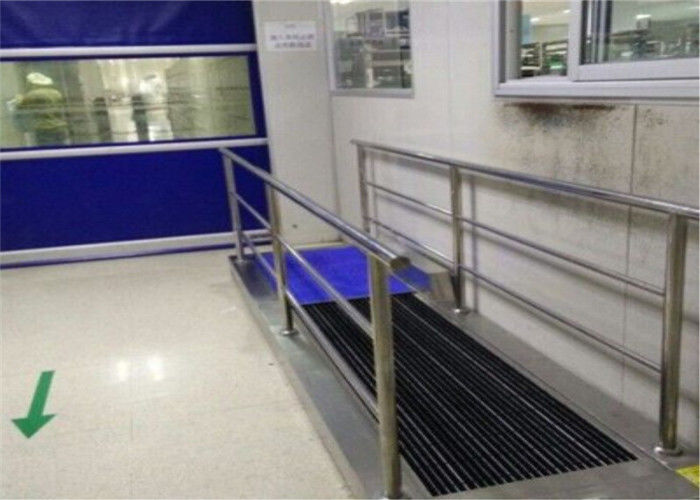

Office entrance: Install on the entrance of offices, hospital to avoid the dust bring in by the shoes.
Stairs entrance: Install on the stairs entrance to avoid the dust entry the clean area.
Workshop entrance:Install on the workshop entry to block the dust entry the cleanroom, to help reduce the particle inside the cleanroom
Passage way: Install in the passageway to clean the soles
Hand washing area: Install in this area to clean the soles during wash hand which can save operator’s time.
Cargo shower: Embedd installed in ground to clean the soles and wheel during people and cart pass.
Function: to clean the partile and dust of the soles in the entry from low level to high level cleanroom.



Instruction:

When the operator go to the end of the machine which trigger the infrared sensor, the brush start running for a maximum of 60s (adjustable from 0-60s), the particle and dust will be clean from the soles then operator go through to the drying area after 2S the operator can leave with clean soles.



Suitable for various environments
The automatic sole cleaning equipment can be customized to combine the main components according to the use environment, which reduces the use space to a greater extent and meets the needs of different environments.



Clean Room 1.8 Meter 3S Shoe Sole Washing Machine 0Clean Room 1.8 Meter 3S Shoe Sole Washing Machine 1Clean Room 1.8 Meter 3S Shoe Sole Washing Machine 2Clean Room 1.8 Meter 3S Shoe Sole Washing Machine 3





Q1:If I order today, how long it takes for the shipment?

A: Our dilivery time is about 7-10days after accept your payment.



Q2. What’s the payment terms?

We accept Trade Assurance, credit card ,T/T, 50% upon order placed, 50% before shipment.



Q3.Can I get a sample?

No. machine is big item. not support sample.



Q4.Can I get training?

Yes. Training is free in our factory. Customer can study all technology and repairing for 1 week. Also we can send traning video for customer self learning.



Q5. Is there accessories with machine?

Yes. accessories included with machine. Customer can start work easily when receive machine.
