Product Details:
Payment & Shipping Terms:
|
| Customize: | Yes | Solder Volume: | 200-300kg |
|---|---|---|---|
| Solder Temperature: | 350 Degree | Temperature Control: | Key Button+PID |
| PCB Conveyor Direction: | 760mm | PCB Width: | 350mm |
| Preheating Zone Number: | 3 Stages | Weight: | 850KG |
| Power Supply: | 380V | Port: | Shenzhen |
| Highlight: | wave soldering equipment,automatic wave soldering machine |
||
Small wave Soldering Machine economic type wave soldering machine Power Driver DIP components wave soldering oven
Product name:

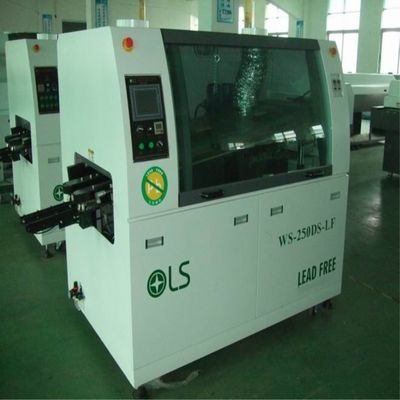

WS-250DS-LF Economic type dual wave soldering machine
Product Features:
1. Styling streamlined shell design, beautiful appearance, easy to clean.
2. Solder furnace is made of alloy material. High strength and high hardness aluminum alloy guideway with long service life.
3. Use Siemens PLC computer control technology to ensure the reliability and stability of the system.
4. The rodless cylinder spray device can automatically adjust with the width of PCB, and effectively save flux.
5. The wave peak of tin furnace is controlled by stepless electronic frequency conversion, and the height of wave peak can be controlled independently.
6. Special flux isolation device, flux smoke from the special exhaust air and recovery channels to meet environmental requirements.
7. Programmable automatic switch machine date, time, temperature control parameters.
8. Equipped with cooling module (optional air cooler, temperature compensation module, suitable for lead-free and various process requirements.
9. Imported micro chemical pump, propanol cleaning agent, automatic circulation cleaning chain claw.
10. Three-stage independent preheating, ceramic heating pipe device, fully activated flux activity. Direct heat radiation to the bottom of the PCB plate, fast heating, long service life.
11. Patented die-casting titanium alloy chain claw, non-stick tin, never deformation, long life, transport PCB stable and reliable.
12. The whole process transparent observation window, convenient observation production and maintenance operation.
13. Tin furnace manual lifting and entry and exit, easy to adjust. Adopt backrest design to prevent maloperation of damaged machine.
14. The transportation system adopts stepless electronic speed regulation pid closed-loop control, and the transportation speed is stable.
15. The over plate automatically starts wave to minimize the amount of tin oxidation.
16. The temperature control system adopts PID closed loop control mode, and the temperature control is stable and reliable.
Products parameters:
| PCB Working width | Max. 300mm |
| PCB conveyor direction | 760±10mm |
| PCB conveyor speed | 0-2.0m/min |
| Preheating zone length | 1500mm |
| Preheating zone number | 3 stages |
| Preheating temperature | 0~250℃ |
| Solder volume | 200-300KG |
| Solder temperature | 0~350℃ |
| Temperature control type | Key button+PID |
| Flux storage tank | Max:5.2L |
| Power | 3 phase 5 wire 380V |
| Power for heating up | 20KW |
| Power for operation | 7KW |
| Air supply | 4-7kg/cm2 12.5L/min |
| Weight | 850KG |
| Dimensions L*W*H |
3650*1200*1650mm |
