Product Details:
Payment & Shipping Terms:
|
| Product Name: | AOI | Inspect PCB: | After Reflow Oven |
|---|---|---|---|
| Camera: | Full Color CCD | Inspection Method: | TOC, Histogram, Match, Short, Other, Crest, Pin |
| Minimum Components: | 01005 Chip, 0. 3pitch IC | Barcode System: | Camera Automatically Recognizes And Transmits Barcode |
| Highlight: | automated optical inspection equipment,aoi inspection equipment |
||

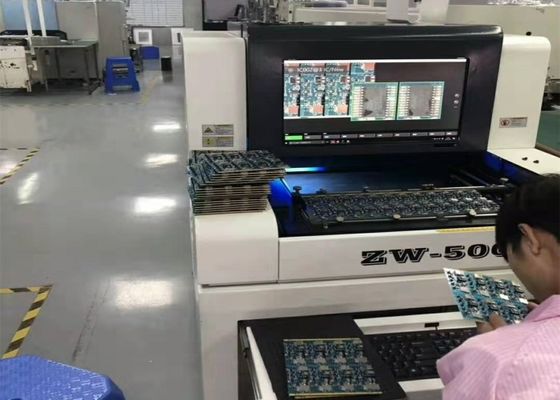

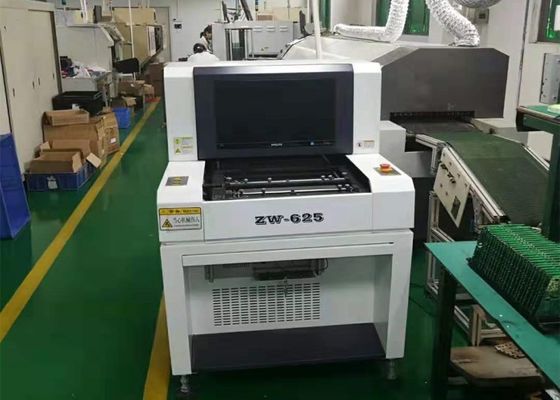

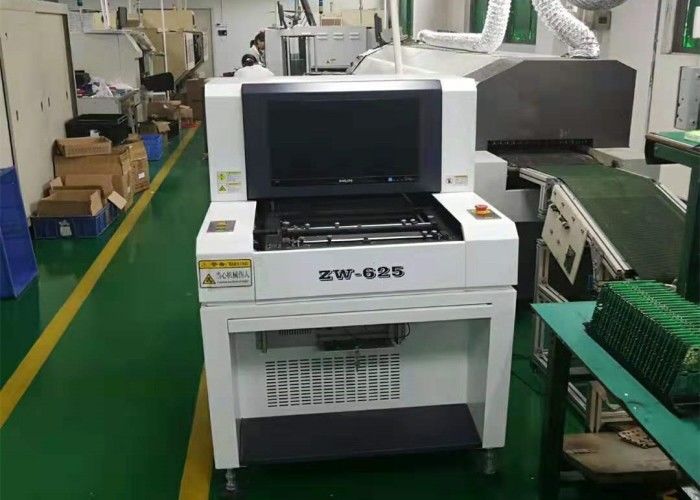

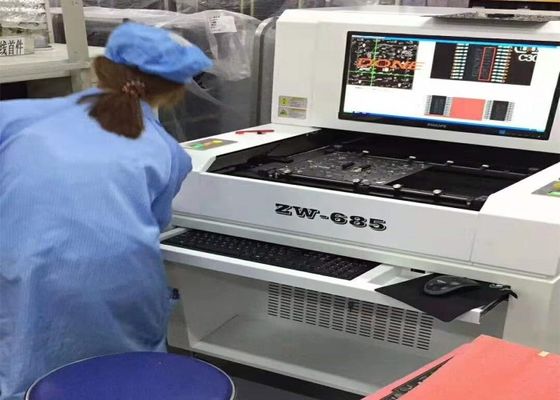

AOI automatic optical detector, offline AOI inspector for smt production line after reflow oven soldering
High precision Offline AOI machine
Features
1. Suitable for off-line inspection after reflow soldering and after wave soldering
2. Networkable remote operation
3. The platform adopts the ace S50C Japanese steel, which has high hardness and minimal deformation, which ensures the accurate and stable operation of the machine.
4. Imported screw rod for smoother operation
5. RRGB coaxial LED light source
6. Multiple algorithms to easily handle complex inspection environments
7. Plate bending automatic compensation function, flexible board detection is also excellent
8. Safety light curtain protection system to ensure operator safety
9. German CCD industrial camera, Japanese lens, can also ensure the clarity of imaging during the movement process
10. With Japan's Mitsubishi servo, the machine moves more accurately and smoothly (optional)
11. Programming is simple, and you can get started in a few days (depending on your individual's ability to learn and accept)
12. SPC data statistics, the same error occurs multiple times automatic alarm, thus improving the production process
Function parameter
| Inspection board | Check the circuit board after SMT reflow oven. |
| Detection method | TOC algorithm, Histogram algorithm, Match algorithm, Short algorithm, OTHER algorithm, CREST algorithm, PIN algorithm and many other international leading algorithms, the system automatically sets its parameters according to different detection points. |
| camera | Full color smart digital camera. |
| Resolution / visual range / speed | Standard: 20μm/Pixel detection speed < 260ms/FOV |
| light source | High brightness RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manually write, automatic frame, CAD data import automatically corresponding component library. |
| remote control | Remote operation through the TCP 1 IP network, viewing, starting or stopping the machine, modifying the program, etc., anytime, anywhere. |
| Detection coverage type | Offset, less tin, short circuit, pollution, missing parts, skew, tombstone, side up, overturned, wrong piece, broken, floating height, polarity, cold welding, empty welding, overflow glue, tin hole, pin not Out, etc. |
| Special function | Multiple programs run at the same time, support automatic program; can check 0-359. Rotating part (unit is 1 degree) |
| Minimum part test | 10 um: 01005 chip & 0. 3 pitch IC. |
| SPC and process control bar code system | The test data is recorded and statistically analyzed and analyzed. The production status and quality analysis can be viewed in any area, and Excel. Txt and other file formats can be output. |
| Barcode system | The camera automatically recognizes and transmits Barcode (1D or 2D code) and multiple Mark functions (including Bad Mark). |
| Server mode | With the central server, several AOI data can be centrally managed. |
| operating system | Windows 7 Professional. |
| Check result output | 22-inch LCD monitor. |
System parameters
| PCB size range | 50X 50mm (Min) ~ 430X 330mm (Max) |
| PCB thickness range | 0.3 to 5mm |
| PCB clamping system edge clearance | TOP: 3.5 mm Bottom: 3.5 mm |
| Maximum PCB weight | 3kg |
| PCB curvature | < 5mm or 2% of the diagonal length of the PCB |
| PCB height | PCB. Top Side: 30 mm PCB bottom (Bottom Side): 60 mm |
| Conveyor system | Automatically open and stowed bilateral fixtures, automatically compensate for PCB bending deformation |
| Conveyor height from the ground | 850 to 920 mm |
| Conveyor flow | PCB moves in the Y direction |
| X/Y platform driver | Screw and AC servo motor drive, PCB fixed, Camera moves in XY direction; each unit passes CTQ certification |
| power supply | AC230V 50/60 Hz is less than 0.5KVA |
| Air pressure | No need |
| equipment weight | About 520KG |
| Equipment dimensions | 900x 1070x 1310mm (LxWxH) |
| Ambient temperature and humidity | 10~35°C 35~80% RH (no condensation) |
| Equipment safety | Comply with CE safety standards |
