Lead free DIP Small Double Wave Soldering Machine manufacturer for 250mm LED Driver

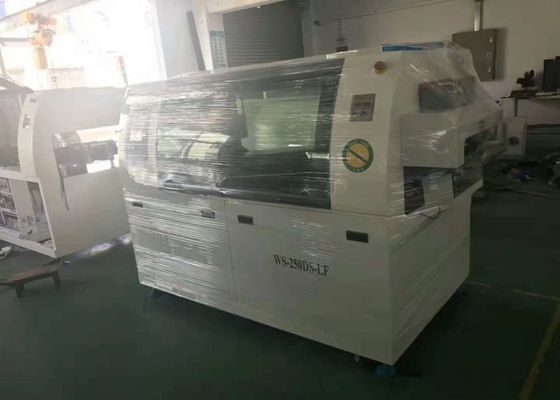

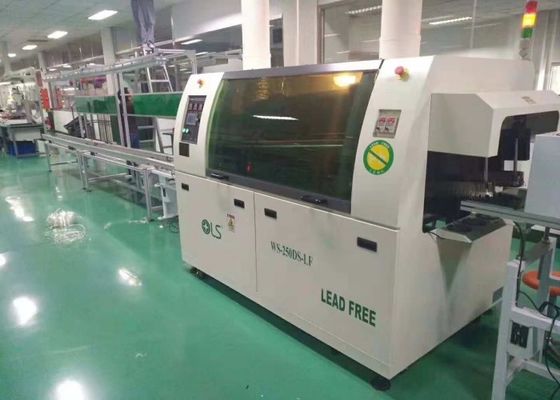

Product Name: Energy-saving 250 series wave soldering machine
Model: WS-250PC/DS-LF

We are wave soldering machine manufacturer. This model machine is very polular for small production line. Save power and lower down cost.

Features:
01. Open-top streamlined shell design, beautiful appearance and easy cleaning.
02. The soldering furnace is made of alloy material. High-strength and high-hardness special aluminum alloy guide rails with long service life.
03. Adopt Siemens Siemens PLC+ panel (touch screen, computer optional) control technology to ensure system reliability and stability.
04. Adopting the most advanced stepping motor + inlet nozzle spray device, it can automatically adjust with the width of the PCB, with higher precision and effectively save flux.
05. The peak of the tin furnace adopts stepless electronic frequency conversion speed regulation, which can independently control the peak height.
06. Unique flux-separated device, flux fumes are discharged from dedicated exhaust and recovery channels to meet environmental requirements.
07. Programmable automatic switch machine date, time, temperature control parameters, etc.
08. With cooling module and temperature compensation module, it is suitable for lead-free and various process requirements.
09. Imported micro chemical pump, propanol cleaning agent, automatic cycle cleaning chain claw.
10. The second-stage full hot air heating wire preheating device fully activates the flux activity to ensure the preheating of all planes of the PCB board and obtain good welding results. The heat is evenly radiated to the bottom of the PCB directly, and the heat is fast and the service life is long.

Products parameters:

wave soldering machine, wave soldering line, DIP production line
