PC Control DIP Wave Soldering Machine , Lead Free Wave Soldering Machine

Lead-free wave soldering Machine Oven 4 wave 450 series PC control DIP wave solder machine

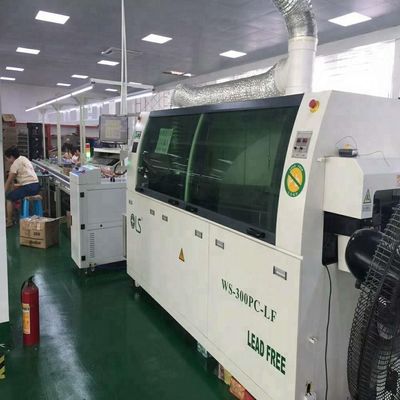

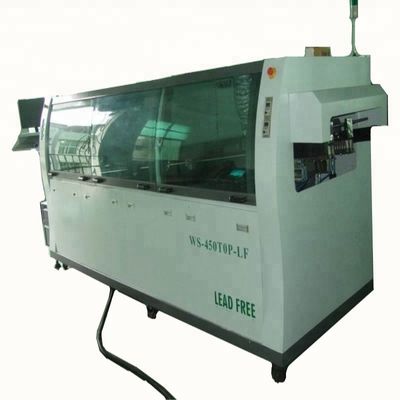

Top 450 series computer control wave soldering machine

Product Features:

 streamlined shape design, internal modular design, suitable for SMT and DIP parts of lead-free soldering;
 Full PC + PLC control system, Windows XP operating system;
 Move the use of rodless cylinder head drive, the German Siemens PLC control, stable and reliable; (stepper motor option)
 Flux automatic supply system with air pump and liquid level monitoring device, to maintain constant supply of flux;
 patented nozzle design, the peak width can be automatically adjusted with the PCB board size. To achieve ultra-low oxidative capacity;
 electrical components are all imported brands, all signal lines shielded;
 Warm up area using micro-hot air can speed the design cycle, the heating effect is more uniform;
 preheating system uses four sections individually controlled to ensure the welding process;
 Windows XP operating system, control software to support any switch in the English line;
 with intelligent fault diagnosis, automatic recording device status and operation of different users;
 Drive chain structure with double claw, to strengthen the adaptability of various PCB;
 track the use of force profiles, hardened, durable;
 Chain claw width can be adjustable with the PCB board size;
 automatic welding supply equipment to help economy. And installation of automatic cleaning device .. spray more effective protection nozzle clean;
 Stainless steel welding and exhaust filter to help economic spray device, a drawer-type modular structure to facilitate cleaning;
 patented nozzle design, the peak width can be automatically adjusted with the PCB board size. To achieve ultra-low oxidative capacity;
 precision welding flat multi-directional wave-shaped knob outside the system, easy adjustment;
 solder wave mode of economic operation, less oxidation, energy-saving;
 the use of centrifugal fans up and down the exhaust, reducing fire hazards;
 external flux sensor design, more reliable and durable;

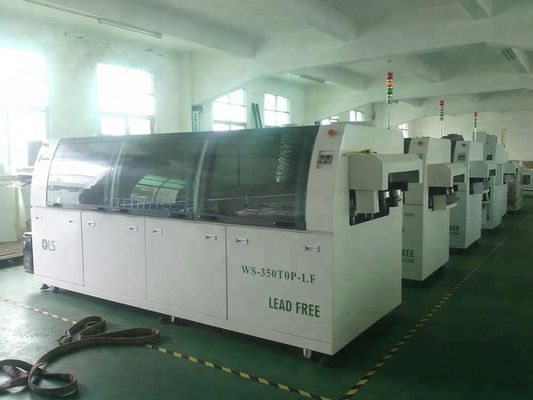

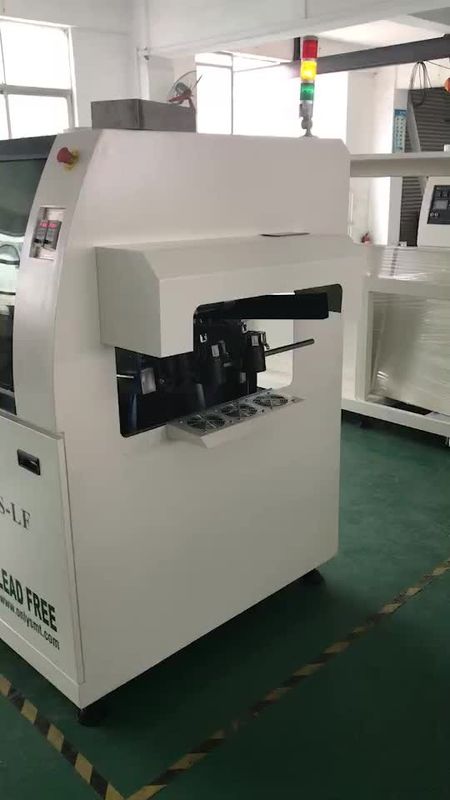

1 Spray System

- rodless cylinder head drive mobile adoption, the German Siemens PLC control, stable and reliable; (stepper motor option)
- flux automatic supply system with air pump and liquid level monitoring device, to maintain constant supply of flux;
- complete flux recovery and ventilation filtration systems, useful environmental protection;

- vehicle-mounted modular spray system, easy maintenance;

- preheated using hot air preheating zone 3 +1 micro-segment spotlights infrared preheating zone, plenty of power;
- four sections preheat zone length 1800mm, to do the holding temperature platform;
- preheating zone the whole observation window, the development design;

- heater modular design, easy maintenance;

- molded arc tooth impeller, patented nozzle design to achieve ultra-low oxidative capacity;
- precision welding flat multi-directional wave-shaped knob outside the system, easy adjustment;
- solder wave with the central support system department, to avoid the large deformation of the welded plate negative impact;
- tin stove down and out of the system, and lift automatic limit control device, easy to operate;
- Patent oxidation device to reduce the generation of oxidized black powder;
- external thermal heating, tin stove is not easy deformation, tin-temperature stability;
- tin wave mode of economic operation, less oxidation, energy-saving;
- shock wave peak and lean forward from the low level design, energy efficiency and reduce the amount of oxidation;
- All titanium furnace and vents, corrosion-resistant high temperature, never deformation;

4 cooling system

- Dual cooling zone design, the use of strong cold way up and down the fan, spot light;

5 Transport and width-modulated system

- high-strength special alloy resistance to deformation of rail;
- strengthening the European Li Sheng-specific design to strengthen titanium claws, to ensure reliable transport;
- super flexible positioning screw-width-modulated systems;
6 Control System
- The whole machine adopts Siemens PLC + PC + temperature control module control, stable and reliable;
- electrical components are all imported brands, all signal lines shielded;

- powerful control software, running on Windows Xp system, in English and can switch at any time;

Technical parameters:

PCB Working width                                   0~450mm adjustable standard size
PCB conveyor height                                Max.750±50mm
PCB conveyor direction                            L-R
PCB conveyor speed                               0-2.0m/min
Conveyor path gradient                           3~7
Preheating zone length                            2000mm(4*500mm)
Preheating zone number                         4
Preheating temperature                          0~250℃
Power for preheating                              13kw
Power for heat compensation                 2kw
Solder type                                              lead free welding material/common welding material
Solder volume                                        300-400kg
Solder temperature                                0~350±1℃
Power for solder                                     12kw
Temperature control type                       P.I.D
Solder fluxes                                          10~100ml/min
Refrigeration temperature                     10℃ bellow
Sprayer Moving type                              SMC Rodless cylinder
Power                                                     3 phase 5 lines (5W,3P) 380V
Power for heating up                              25kw
Power for operation Approx.                  8kw
Air supply                                                5kg/cm²
Weight Approx.                                      1800kg
Dimensions L*W*H                                 4500*1500*1750mm
