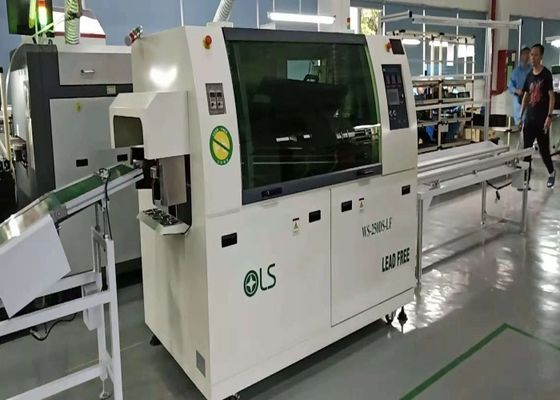

Lead Free LED Driver PCB 250mm Wave Soldering Machine

Large Image : Lead Free LED Driver PCB 250mm Wave Soldering Machine Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	WANBO
Model Number:	OLS250DS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	discuss price
Packaging Details:	wooden box package
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Product Name:	Small Wave Soldering Machine	PCB Working Width:	Max. 250mm
PCB Conveyor Direction:	Left To Right / Right To Left (optional)	PCB Conveyor Speed:	0-2.0m/min
Preheating Zone Length:	700mm	Preheating Zone Number:	2 Stages
Preheating Temperature:	0~250℃	Solder Volume:	200KG
Solder Temperature:	0～350℃	Temperature Control Type:	Key Button+PID
Highlight:	250mm Wave Soldering Equipment , Lead Free Pcb Soldering Machine

mini wave soldering machine, small wave soldering machine, cheap wave soldering machine price for DIP PCB LED driver

Economic wave soldering machine for small production volume.

Product name: wave soldering machine, wave soldering machine price, wave soldering, mini wave soldering machine, solder wave machine

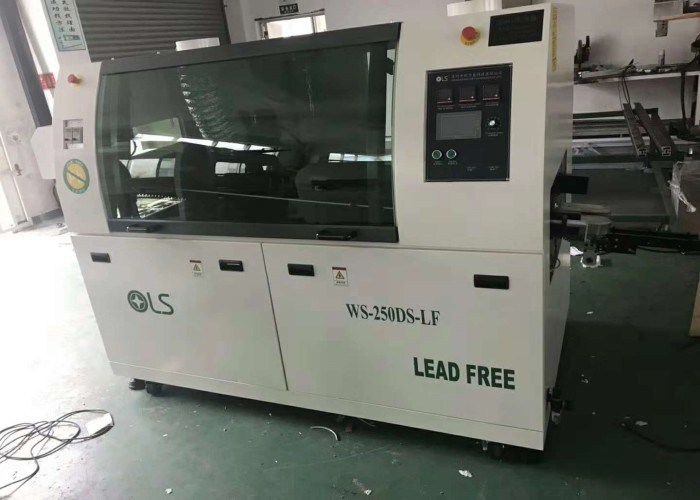

Model: WS-250DS-LF Economic type dual wave soldering machine

Product Features:

Styling streamlined shell design, beautiful appearance, easy to clean.
Solder furnace is made of alloy material. High strength and high hardness aluminum alloy guideway with long service life.
Use Siemens PLC computer control technology to ensure the reliability and stability of the system.
The rodless cylinder spray device can automatically adjust with the width of PCB, and effectively save flux.
The wave peak of tin furnace is controlled by stepless electronic frequency conversion, and the height of wave peak can be controlled independently.

Products parameters:

PCB Working width	Max. 250mm
PCB conveyor height	760±10mm
PCB conveyor direction	Left to right / right to left (optional)
PCB conveyor speed	0-2.0m/min
Preheating zone length	700mm
Preheating zone number	2 stages
Preheating temperature	0~250℃
Solder volume	200KG
Solder temperature	0～350℃
Temperature control type	PLC+PID
Flux storage tank	Max:4.2L
Power	3 phase 5 wire 380V
