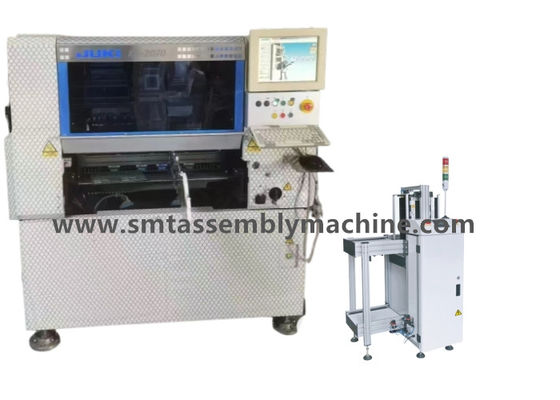

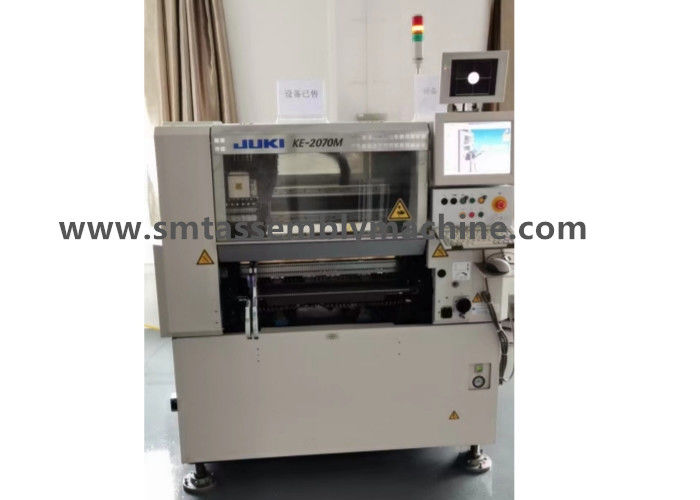

Used Juki KE2070 SMD Placement Machine 23300CPH Laser Identification

Used Juki KE2070 SMD Placement Machine 23300CPH Laser Identification

Used Juki KE2070 SMD Placement Machine 23300CPH Laser Identification
Used Juki KE2070 SMD Placement Machine 23300CPH Laser Identification
video play

Large Image :  Used Juki KE2070 SMD Placement Machine 23300CPH Laser Identification Get Best Price

Product Details:
Place of Origin: Japan
Brand Name: JUKI
Certification: QC
Model Number: KE-2070
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: RMB120000-350000
Packaging Details: 1.Wooden case and vacuum package 2.As your requirements
Delivery Time: Consultation
Payment Terms: T/T, Western Union, Paypal, Credit card
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Used JUKI 2070 Smt Machine Model: JUKI KE-2070
Lmage Recognition: Laser Warranty: 2880 Hour
Suitable For Production: Home Audio 12V Application: Paste 16P IC On PCB
High Light:

Used Juki KE2070 SMD Placement Machine

,

23300CPH SMD Placement Machine

,

23300CPH SMD Assembly Machine

Used Juki KE2070 SMD Placement Machine 23300CPH Laser Identification



Used Juki KE-2070 smd equipment 23300CPH laser identification/condition



6 suction nozzles JUKI2070 SMT Assembly Machine Fast Speed For 1.2m PCB LED Strip

Used Juki KE-2070 Smd assembly machine Paste Bridge pile Convex lens on PCB



Shenzhen Wanbo High-tech Co., Ltd. has a JUKI senior engineer team with rich maintenance experience, specializing in providing JUKI series placement machine software and hardware maintenance and troubleshooting. It mainly includes JUKI laser head, CPU motherboard SUB-CPU board, drive board X/Y/Z/T axis driver, head board, image control card, I/O board, JUKI servo motor, camera, display touch screen, servo motor and other maintenance and replacement services. The company's fees are reasonable, the warehouse accessories are sufficient, the maintenance cycle is short, the one-time repair success rate is high, and the Pearl River Delta region can provide door-to-door installation, commissioning, maintenance and maintenance.



Organization of This Manual
Chapter 1 Overview of the MachineThis chapter describes the configuration and overview of the machine.
Chapter 2 Operation ProcedureThis chapter describes the flow of operations from power-on to PWB production.
Chapter 3 Daily InspectionThis chapter describes the daily inspection together with the lists of daily inspectionitems and maintenance items.



This manual is an introduction to PWB production with a KE-2070/2070C,KE-2080/2080R mounter. Refer to the descriptions stored in the attached CD"KE-2070/KE-2080/KE-2080R Instruction Manual" for operations not described in thismanual



Model name High speed placement machine KE-2070M/L/E
Substrate size

M substrate (330×250mm) ○

l For substrate (410×360mm) ○

E substrate (510×460mm) ○

Element height

6mm specifications ○

12mm specifications ○

20mm Specifications _

25mm Specifications _

Component size

Laser identification 0402 (imperial 01005) chip ~ 33.5mm square element

Image recognition 1.0×0.5mm~33.5mm square element

Component placement speed

Optimal conditions 0.155 sec/chip (23300CPH)

IC Component 4600CPH*

Component placement accuracy

Laser recognition ±0.05mm

Image recognition ±0.04mm

Component placement type Up to 80 types (converted to 8mm belt)
power supply Three-phase AC200~415V
Rated power 3KVA
Use air pressure 0.5±0.05Mpa
Air consumption (Standard status) 345L/min
Device size (W×D×H)

M substrate 1,400×1,393×1,455mm

L substrate 1,500×1,500×1,455mm

E substrate 1,730×1,600×1,455mm

weight 1530kg





Accessories include: all kinds of original, domestic nozzles, FEEDER, boards, lasers, solenoid valves, inductors,

cylinders, tank chains, etc.), laser maintenance, board maintenance and so on.



Used Juki KE2070 SMD Placement Machine 23300CPH Laser Identification 0
