Product Details:
Payment & Shipping Terms:
|
| Customize: | Yes | Speed: | 3.5s/COF Ic |
|---|---|---|---|
| Repair Type: | TV, Laptop, Open Cell | TV Panel Size: | 12-85 Inch |
| Power Supply: | AC220V | Selling Units: | Single Item |
| Single Gross Weight: | 380 Kg | Package Type: | Wooden Box Package |
| Warranty: | 1 Year | Display: | Single LCD Screen Display |
| Highlight: | COF LCD Screen Repairing Machine,ACF Laptop Screen Repair Machine |
||

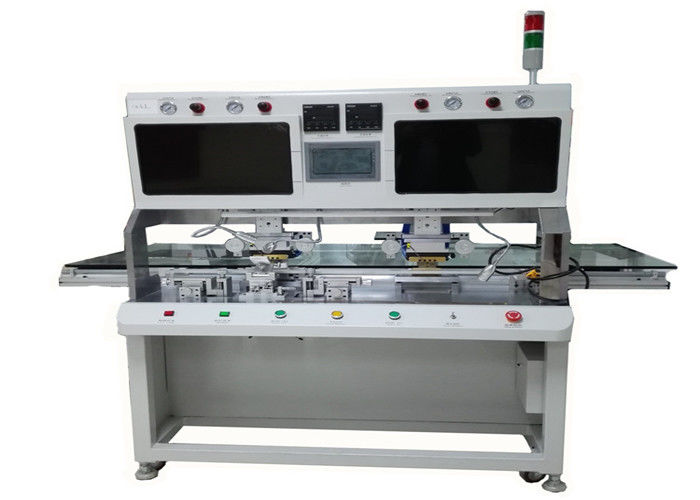

85 inch 2 heads LED LCD TV screen TAB COF ic bonding machine
Technical parameters:
| power: |
AC220V±10%, 50Hz, 4500W |
| work environment: |
10~60℃, 40%~ 95% |
| work air pressure: |
0.5 ~ 0.7 Mpa |
| bonding press stress: |
5 ~ 28 KGF |
| temperature Settings: | one to four paragraphs |
| temperature Settings: | RT ~ 399 ℃ |
| hot pressing time: | 1 ~ 99 s |
| hot-pressing precision: | pitch 45um |
| production capacity: | 35 s/TAB or COF package |
| hot pressing head size: | MAX 60 x 8 mm |
| the fuselage size: | 1508 mm (L) x 1245 mm (W) x 1483 mm (H) |
| weight: | about 380 kg |
| Processing customized: | yes |
| Machine Type: | Pulse hot-pressing machine, LCD screen repairing machine, TAB COF bonding machine |
| Brand: | WANBO HITECH |
| Model: | 850D |
| Power supply: | AC 220V |
| Power: | 1.2 KW |
| Work pressure | 2.0~7.5 (Mpa) |
| Hot pressing time: | can be set (s) |
| Thermocouple type: | K |
| Machine shape size: |
1800 x1200x100 (mm) |
The system control is: Panasonic - PLC control (single)
Production parameters have store brands on the market are samsung, LG, sharp, chi mei, auo, huaxing photoelectric, Hitachi, hanyu display, Huasheng, Zhonghua etc. Four different temperature set points starting temperature, the temperature of the first paragraph, the second section temperature, cooling temperature.PLC and touch screen communication, can according to production needs to extend the production process automatic control function. System automatically detect, abnormal alarm display function, make the equipment maintenance more quickly.
The stability control is: Panasonic - TC2
Imported temperature sensing line and Panasonic's newest chips (TC2) make more accurate temperature control, with fast heating time, temperature precision higher characteristic, and add heating curves and parameters of synchronous display.
The operating interface is: WV full-color PDA (single communication)
6.5 -inch intelligent man-machine interface, programmable controller (PLC) control system, make the equipment operation is stable and reliable.
Heating method: pulse heating mode
Fast heating/cooling and auxiliary cooling function. High quality titanium alloy head, automatic temperature compensation function, make the temperature more accurately.

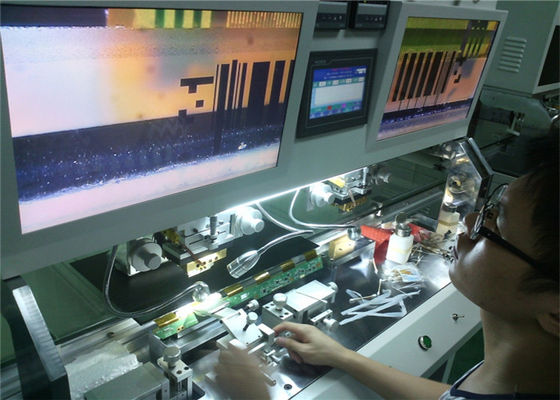

High precision counterpoint: micrometer counterpoint
Equipped with advanced optical alignment system, fully satisfy the product clear counterpoint and production of precision, para X, Y, Z axis adjustment adopts high-precision micrometer regulator, slippery course synchronous operation, ensure that para a higher precision.19 inches large screen display contrapuntal line electrode, makes the registration faster, more generous appearance.
The size of the maintenance and brand:
Unlimited size and the screen card TFT LCD, LED screen, TAB, COG and PCB bonding.
Repair the fault:
Vertical, horizontal, vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, horizontal, vertical half and half, fault, and so on.
880PS models is exclusively to domestic original installed after-sales service and a number of patented products.
Q1:If I order today, how long it takes for the shipment?
A: Our dilivery time is about 7-10days after accept your payment.
Q2. What’s the payment terms?
We accept Trade Assurance, credit card ,T/T, 50% upon order placed, 50% before shipment.
Q3.Can I get a sample?
No. machine is big item. not support sample.
Q4.Can I get training?
Yes. Training is free in our factory. Customer can study all technology and repairing for 1 week. Also we can send traning video for customer self learning.
Q5. Is there accessories with machine?
Yes. 21 items of accessories included with machine. Customer can start repairing work easily when receive machine.
