Product Details:
Payment & Shipping Terms:
|
| Customize: | Yes | Speed: | 0-1000mm/min |
|---|---|---|---|
| Repair Type: | TV, Laptop, Open Cell | TV Panel Size: | 12-32 Inch |
| Power Supply: | AC220V | Selling Units: | Single Item |
| Single Gross Weight: | 300 Kg | Package Type: | Wooden Box Package |
| Warranty: | 1 Year | ||
| Highlight: | Polarizer Film Laminating Machine,Polarizer Film Laminator |
||

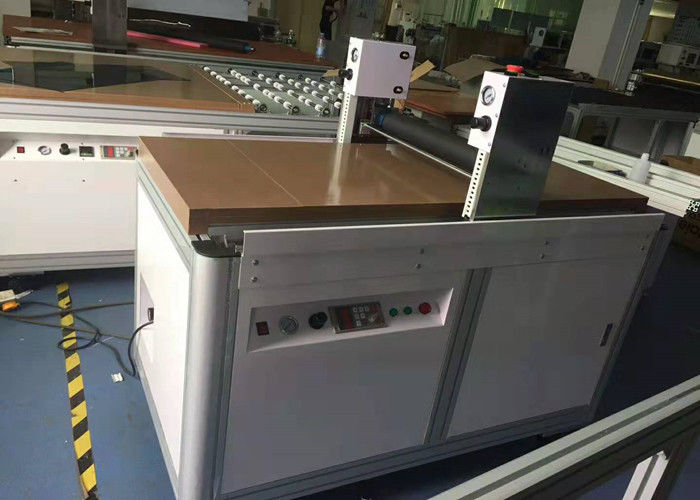

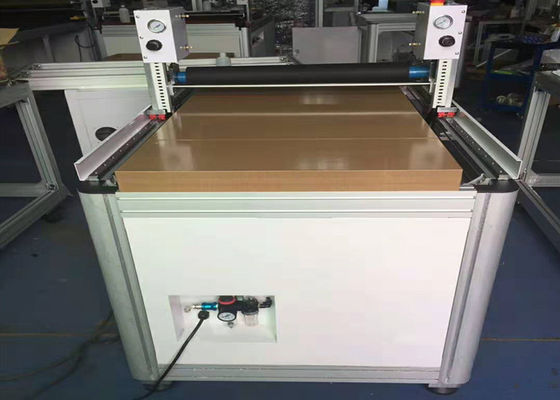

OLED QLED LCD TV panel screen repair machine Polarizer film laminating machine
This product is suitable for various liquid crystal panels, polarizing bonding process in the process of surface scratching.
Features:
Unique fit structure design to meet the flat fit requirements within 65 inches. The soft and hard board bonding is performed in synchronization with the tear film (protective film). The polarized light adsorption design is designed to ensure that the large area is 100% adsorbed firmly and evenly. The ultra-long rubber roller design has the characteristics of no deformation, anti-static, elastic foot and large contact area. High-precision components such as Japanese control system, man-machine interface, and servo system can meet various high-precision and large-area bonding process requirements. Fits flat, no bubbles, no wrinkles. More than 99.5% of the products do not need to be defoamed after bonding. The overall structure of the machine is humanized, safe and beautiful.
| Processing customized: | yes |
| Machine Type: | lcd polarizer machine, polarizer film laminator |
| Brand: | WANBO HITECH |
| Model: | 320DH |
| Power supply: | AC 220V |
| Power: | 1.2 KW |
| Work pressure | 2.0~7.5 (Mpa) |
| Hot pressing time: | can be set (s) |
| Thermocouple type: | K |
| Machine shape size: |
1500 x1200x100 (mm) |
