Product Details:
Payment & Shipping Terms:
|

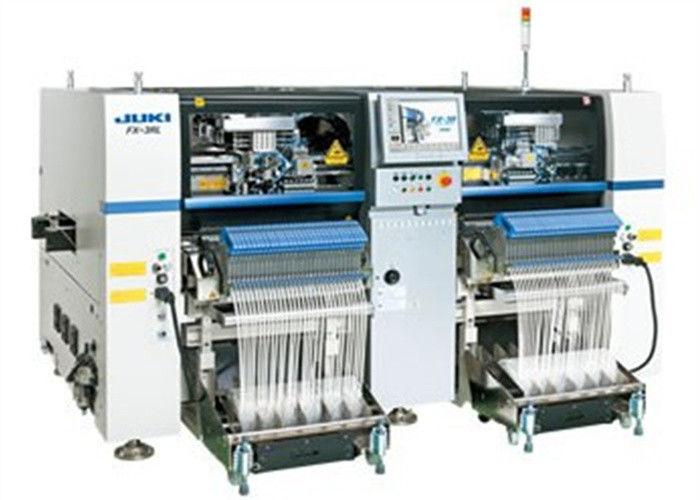

| Product Name: | Used JUKI FX-2 Smt Chip Mounter | Model: | JUKI FX-2 |
|---|---|---|---|
| Applicable Components: | IC, BGA, TSOP, 0603 | Pcb Size: | 410*360MM |
| Usage: | JUKI FX-2 Universal Smt Machine | Speed: | 30000 Chips/hour |
| Highlight: | Used automatic SMT placement machine,JUKI FX-2 SMT placement machine,high speed LED smt machine |
||
Equipment name: used JUKI FX-2, refurbished JUKI FX-2 placement machine, used JUKI FX-2 smt placement machine
Introduction to the device
JUKI FX-2 smt SMD chip mounter parameters
High-speed modular placement machine FX-1R
Application industry: electronics
Advanced linear motors and a unique HI-Drive mechanism are used for high-speed mounting
It inherits the traditional concept of modular placement machines and realizes high-speed mounting. Reasonable adjustment of each part improves the actual mounting speed.
■ 33,000CPH: chip (best conditions) / 25,000 CPH: chip (IPC 9850)
■ Laser mount× 2 (8 nozzles)
■ 0603 (imperial 0201) chip ~ 20mm square element, or 26.5×11mm
※ Placement speed conditions may vary
Product name: JUKI FX-2 placement machine
Origin: JAPAN
Product brand: JUKI
JUKI High Speed Modular Placement Machine FX-2 Product Features:
A high-speed modular placement machine that improves mounting ergonomics by 20%*1 and improves economic efficiency, operational performance, and reliability. 40,000CPH (optimal conditions) (0.09 sec/chip) *2,30,000CPH (IPC9850) *2 2. Laser mounting head× 2 (12 nozzles) 3. Component size 0402 (imperial 01005) chip ~ 33.5mm square element
JUKI high-speed modular placement machine FX-2 product parameters:
| Substrate size | L substrate (410×360mm) element height 6mm specifications |
| Component size | 0402 (imperial 01005) chip ~ 33.5mm square element |
| Component placement speed accuracy | Chip components Optimal conditions 0.09 sec/chip (40,000CPH equivalent) IPC9850 30,000CPH |
| Component placement speed | (Chip component) ±0.05mm(±3σ) |
| Component placement type | (converted to 8mm belt) Up to 80 types |
| Air source: | 5 kg/cm³, no water, no oil or dust |
| Air consumption: | 100 NL/min |
Other new and used JUKI smt machine models:
JUKI KE-710 KE-720 KE-730 KE740 KE750 KE760
JUKI KE-2000 KE2010 KE2020
JUKI KE-2050 KE2060 KE2070 JUKI KE-2080
FX-1R FX-2 FX-3L
JX-100LED JX-300LED JX-350
JUKI SMT machine Accessories include: all kinds of original, domestic nozzles, FEEDER, boards, lasers, solenoid valves, inductors, cylinders, tank chains, etc.), laser maintenance, board maintenance and so on
Other models of new or used JUKI SMT placement machines:
all spare parts of Juki smt machine can provide.
