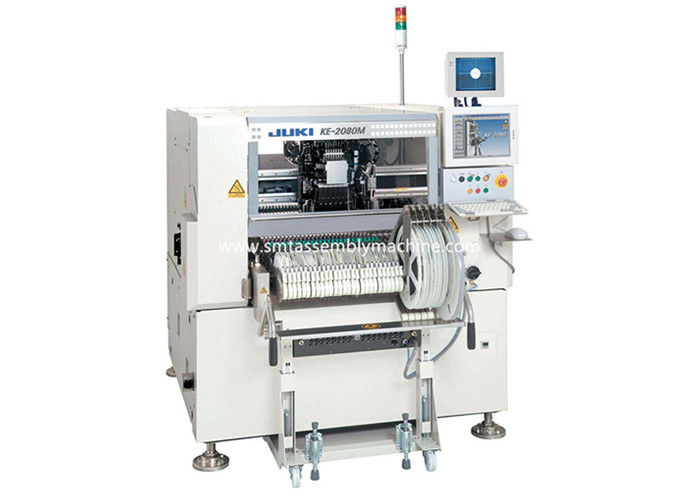

Multifunctional Automatic SMD Machine Used JUKI KE-2080 SMT Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Used JUKI KE-2080 Smt Machine | Model: | JUKI KE2080M |
|---|---|---|---|
| Applicable Components: | IC, TSOP,0402,33mm | Pcb Size: | 330*250MM |
| Usage: | Second Hand JUKI Smt Machine | Speed: | 20200 Chips/hour |
| High Light: | JUKI KE-2080 automatic smd machine,Used JUKI automatic smd machine,Used JUKI smt machine |
||

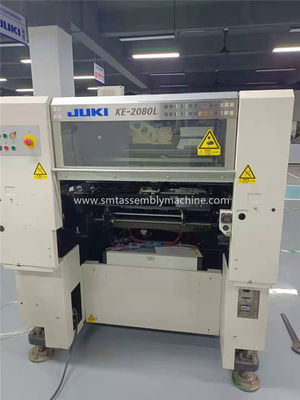

Equipment name: used JUKI KE-2080M smt placement machine, KE-2080L JUKI placement machine, used JUKI KE-2080R placement machine, second hand JUKI smt machine, JUKI SMT pick and place machine KE-2080 universal smt assembly machine, JUKI smt chip mounter, second hand JUKI KE-2080E smt machine, LED pick and place machine
Equipment Introduction:
JUKI 2080 is an upgraded version of JUKI 2060, using a high-stability placement head device and high-resolution axis control, widely applicable to various components, using universal images, convenient for the basic design of users. In addition to the high-speed mounting capability of small components, JUKI KE series products can also support IC and complex shapes of anisotropic components, which have been highly praised by customers for many years, and support flexible production line configuration as a single module with a module concept.
Our company has introduced second-hand JUKI 2080 placement machine for a long time, the machine has short use time, good maintenance, good production status, provides overseas model reservation, price advantage is obvious, welcome to inquire!
JUKI KE-2080 series parameters
| Substrate size: |
M substrate (330×250mm) For L substrate (410×360mm) L-Wide substrate (510×360mm) (optional) (510×460mm)*1 for E substrate |
| Component size: |
Laser identification 0402 (imperial 01005) chip ~ 33.5mm square element Image recognition Standard camera: 3mm square element * 2~74mm square element or 50×150mm High resolution camera (optional): 1.0×0.5mm*3~48mm square element or 24×72mm |
| Component placement speed: | Chip components Optimal condition: 0.178 sec/chip (20,200CPH) IPC9850 16,700CPH IC component*3 1,850CPH 4,860CPH*4 |
| Component placement accuracy: |
Laser identification: ±0.05mm (Cpk≧1) Image recognition: ±0.03mm (0.04mm when using MNVC (option)±) |
| Component mounting type: | Up to 80 types (converted to 8mm band)*5 |
|
1. For information about E substrates, please contact our salesman. *2.Use MNVC (optional) *3.When using a high-resolution camera (optional). *4.Actual ergonomics: The mounting speed of IC components is the conversion value when 36 QFPs (100 pins or more) or BGA (256 balls or more) are mounted on the entire surface of an M-size substrate. (CPH = average number of mounting components in 1 hour) *5.Conversion value when using MNVC (optional) and full nozzle at the same time. *6. Up to 110 varieties can be used with multi-layer pallet changers |
|
Shenzhen Wanbo High-tech Co., Ltd. has a JUKI senior engineer team with rich maintenance experience, specializing in providing JUKI series placement machine software and hardware maintenance and troubleshooting. It mainly includes JUKI laser head, CPU motherboard SUB-CPU board, drive board X/Y/Z/T axis driver, head board, image control card, I/O board, JUKI servo motor, camera, display touch screen, servo motor and other maintenance and replacement services. The company's fees are reasonable, the warehouse accessories are sufficient, the maintenance cycle is short, the one-time repair success rate is high, and the Pearl River Delta region can provide door-to-door installation, commissioning, maintenance and maintenance.
Other new and used JUKI smt machine models:
JUKI KE-710
JUKI KE-720
JUKI KE-730
JUKI KE-740
JUKI KE-750
JUKI KE-760
JUKI KE-2000
JUKI KE-2010
JUKI KE-2020
JUKI KE-2030
JUKI KE-2040
JUKI KE-2050/2050L/2050M
JUKI KE-2060/2060L/2060M/2060E/2060R
JUKI KE-2070/2070M/2070E/2070L
JUKI KE-2080/2080L/2080M
JUKI KE-3010
JUKI KE-3020/3020VAM/3020VL/3020VM
JUKI FX-1/1R/1L
JUKI FX-2/2R/2L
JUKI FX-3/3R/3L/3RAL
JUKI FX-7R
JUKI RS-1R
JUKI RX-7R
JUKI JX100/100LED
JUKI JX200/200LED
JUKI JX300/300LED
JUKI SMT machine Accessories include: all kinds of original, domestic nozzles, FEEDER, boards, lasers, solenoid valves, inductors, cylinders, tank chains, etc.), laser maintenance, board maintenance and so on
Other models of new or used JUKI SMT placement machines provide, and all spare parts of Juki smt machine can provide.
Since SMT technology is a complex system engineering involving a number of technologies, strong technology and large investment, how to select and build lines for SMT production equipment with many models is still a complex and difficult work.
The general SMT production process includes three steps of solder paste printing, placement and reflow soldering, and the main equipment is printing machine, placement machine and reflow soldering furnace to form a production line.
Typical SMT scheme, smt production line, LED lamp LED light smt machine line:
Loading machine + solder paste printing machine + high-speed placement machine + high-precision placement machine + reflow soldering
