Product Details:
Payment & Shipping Terms:
|
| Product Name: | Yamaha Placement Machine | Brand: | Yamaha Japan |
|---|---|---|---|
| Model: | Yamaha YV100II | SMD Speed: | 12000 (chips/hour) |
| Weight: | 1300KG | Form Factor: | L1650*W1350*H1810 |
| Highlight: | YV100II SMT Assembly Machine,Yamaha SMT Assembly Machine,12000 Chips/Hour SMT Assembly Equipment |
||

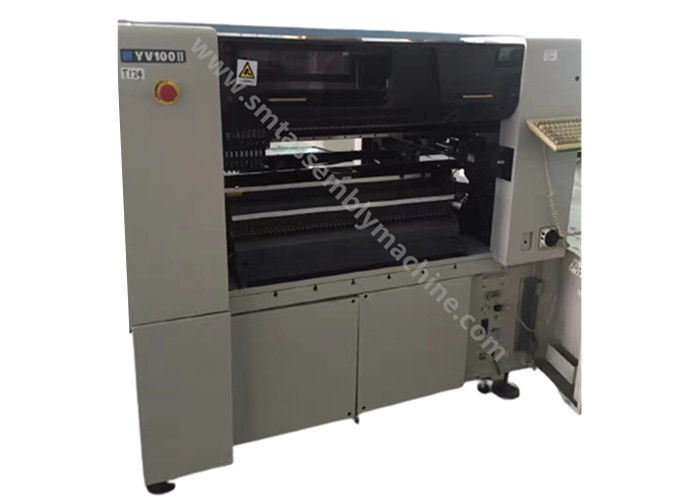

SMT Assembly Machine Yamaha YV100II placement smt assembly equipment

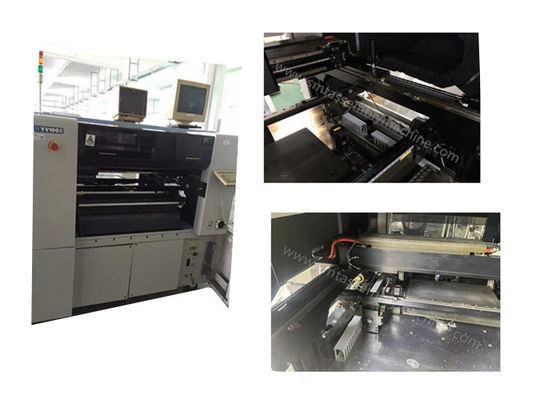

Equipment Introduction:
The second-hand Yamaha YV100II placement machine is roughly a 98-year-old device,
with a simple mechanical structure, a frame cast at one time, ensuring durability and stability,
and the circuit control department is not complicated, and the maintenance is convenient.
DOS operating system, the menu is relatively simple, the operation is simple, 1 working head, 8 nozzles,
large and small materials can be pasted, and precision cameras can be installed to improve the placement accuracy.
The theoretical speed is 14400 points per hour, and the actual production capacity is about 8000 points,
SMT Assembly Machine which is suitable for small batch mass production.
| Substrate size | L600*W400(Max)/L50*W50(Min) |
| Substrate thickness | 0.4-3.0 smt assembly equipment |
| Substrate transfer direction | Right-left |
| Placement accuracy | ±0.1mm/CHIP ±0.08/QFP |
| Placement speed | 0.25 sec. / CHIP 1.7 sec/QFP |
| Original type strip original: | 100 TYPES (MAX, 8MM with conversion) |
| Pallet originals: | 80 types (used in TMAX, YTF) |
| Original supply form | 8-56mm broadband, rod, bulk, pallet |
| Attach the original | 1005~QFP’SQP’SOJ’PLCC(25mm) BGA(0.4p) |
| Power supply three-phase | AC220/208/230/240/380/400/416V ±10%,50/60HZ |
| power | 4KVA |
| atmospheric pressure | 0.55MPA or more, 350MIN |
| Form factor | L1650*W1350*H1810 |
| weight | 1300KG |
| SMD speed | 12000 (chips/hour) |
