Bulk Pallet LED Pick And Place Machine SMT 80 Types Yamaha YV100II Placement Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Yamaha Placement Machine | Brand: | Yamaha Japan |
|---|---|---|---|
| Model: | YV100II Yamaha | SMD Speed: | Chips/hour 12000 |
| Power: | 4KVA | Form Factor: | L1650*W1350*H1810 |
| High Light: | Bulk Pallet LED Pick And Place Machine,SMT LED Pick And Place Machine,Yamaha YV100II SMT placement machine |
||
SMT 80 types Yamaha YV100II placement led pick and place machine bulk pallet
Our company has long introduced second-hand YV100II Yamaha placement machine, short machine use time,
good maintenance, good production status, provide overseas model booking, price advantage is obvious,
the company specializes in placement machine, plug-in machine, SMT peripheral equipment
and accessories recycling, trading, led pick and place machine leasing, welcome to inquire!

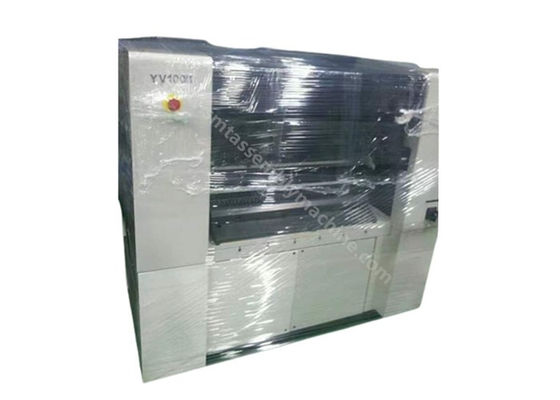

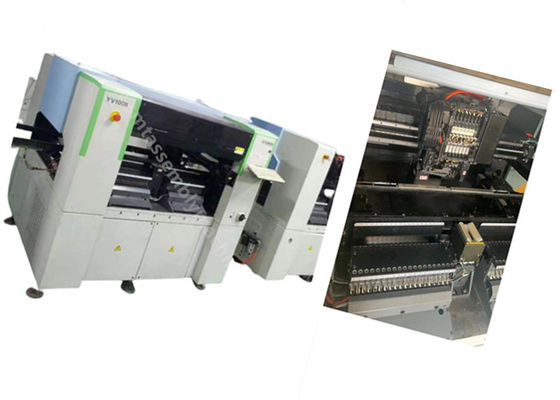

The second-hand Yamaha YV100II placement machine is roughly a 98-year-old device,
DOS operating system, the menu is relatively simple, the operation is simple, 1 working head, 8 nozzles,
large and small materials can be pasted, and precision cameras can be installed to improve the placement accuracy.
The theoretical speed is 14400 points per hour, and the actual production capacity is about 8000 points,
SMT Assembly Machine which is suitable for small batch mass production.
| Substrate size | L600*W400(Max)/L50*W50(Min) |
| Substrate thickness | 0.4-3.0 |
| Substrate transfer direction | Right-left |
| Placement accuracy | ±0.1mm/CHIP ±0.08/QFP |
| Placement speed | 0.25 sec. / CHIP 1.7 sec/QFP |
| Original type strip original: | 100 TYPES (MAX, 8MM with conversion) |
| Pallet originals: | 80 types (used in TMAX, YTF) |
| Original supply form | 8-56mm broadband, rod, bulk, pallet |
| Attach the original | 1005~QFP’SQP’SOJ’PLCC(25mm) BGA(0.4p) |
| Power supply three-phase | AC220/208/230/240/380/400/416V ±10%,50/60HZ |
| power | 4KVA |
| atmospheric pressure | 0.55MPA or more, 350MIN |
| Form factor | L1650*W1350*H1810 |
| weight | 1300KG |
| SMD speed | 12000 (chips/hour) |
