Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMT Placement Machine | Brand: | Yamaha Placement Machine |
|---|---|---|---|
| Model: | YV100II Yamaha | SMD Speed: | 12000 Hourly |
| Power: | 4KVA | Form Factor: | L1650*W1350*H1810 |
| Highlight: | Yamaha smt placement machine,4KVA smt placement machine,Casting Frame surface mount placement machine |
||

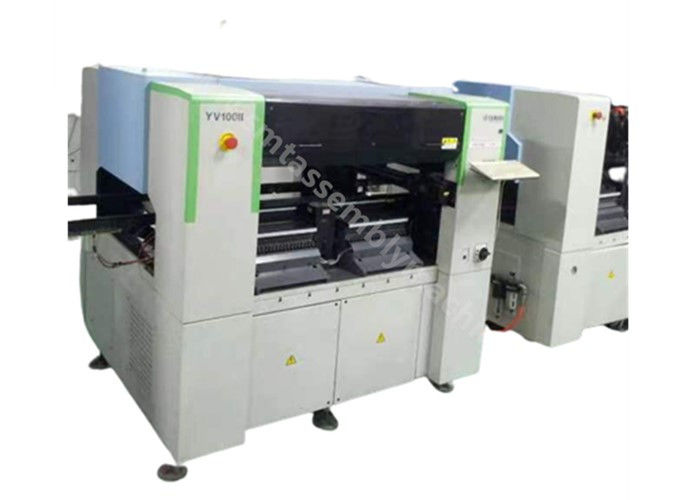

SMT Assembly Machine Yamaha YV100II 100Xg smt placement machine The frame adopts a casting process
Yamaha YV100II parameters
1. High-speed machine based on the reliability of the basic structure
2. Placement of protective components
3.0.25 sec/CHIP high-speed mounting
4. Can be mounted 0.5 feet pitch 32mm QFP
5. High-speed image processing
6.2 cameras reduce production time
7. Newly designed high rigidity frame
8. Increase the speed of the shaft
9. Can handle a variety of components
10. 8 wire mounting heads suitable for computer SIMM production

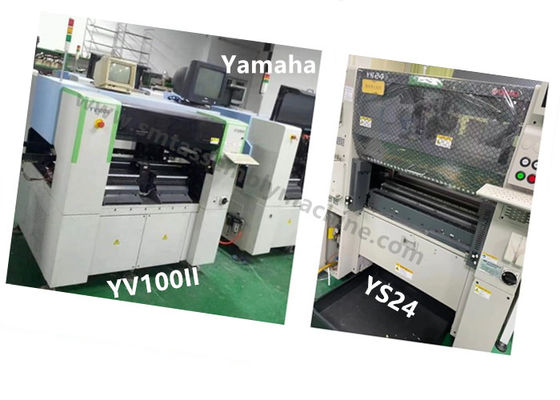

The second-hand Yamaha YV100II placement machine is roughly a device around 1998,
SMT Assembly Machine with a simple mechanical structure, a frame cast at one time, ensuring durability and stability,
simple circuit control part, and convenient maintenance. DOS operating system, the menu is relatively simple,
the operation is simple, 1 working head, 8 nozzles, large and small materials can be pasted,
and precision cameras can be installed to improve the placement accuracy.
The theoretical speed is 14400 points per hour, and the actual production capacity is about 8000 points,
which is suitable for small batch mass production.
Yamaha YV100II Specifications:
| Substrate size | L600*W400(Max)/L50*W50(Min) |
| Substrate thickness | 0.4-3.0 |
| Substrate transfer direction | Right-left |
| Placement accuracy | ±0.1mm/CHIP ±0.08/QFP |
| Placement speed | 0.25 sec. / CHIP 1.7 sec/QFP |
| power | 4KVA |
| atmospheric pressure | 0.55MPA or more, 350MIN |
| Form factor | L1650*W1350*H1810 |
| weight | 1300KG |
| SMD speed | 12000 (chips/hour) |
