Product Details:
Payment & Shipping Terms:
|
Product Name: | Used JUKI 2060 Smt Machine | Model: | JUKI KE-2060 |
---|---|---|---|
Usage: | JUKI 2050-3010 Smt Pick And Place Machine | Application: | Assembly Production Line SMT PCB |
Applicable Components: | (imperial 0201) 0603 Chip Chip ~ 20mm | Power Supply: | AC110V 60Hz / AC220V 50Hz |
Highlight: | Lens SMT pick place machine,Backlight SMT pick place machine |

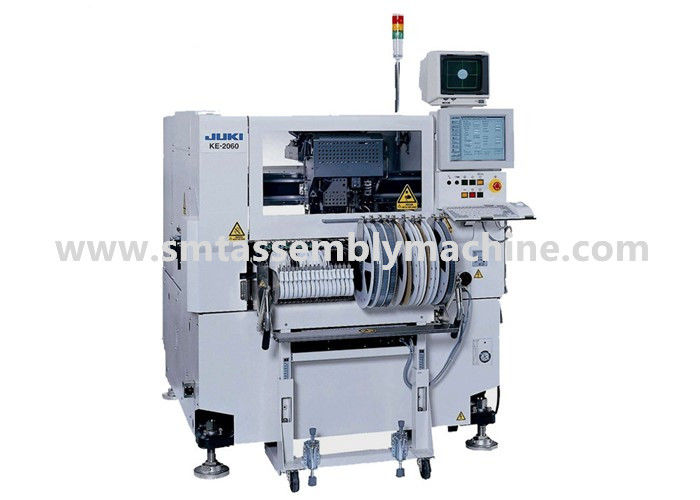

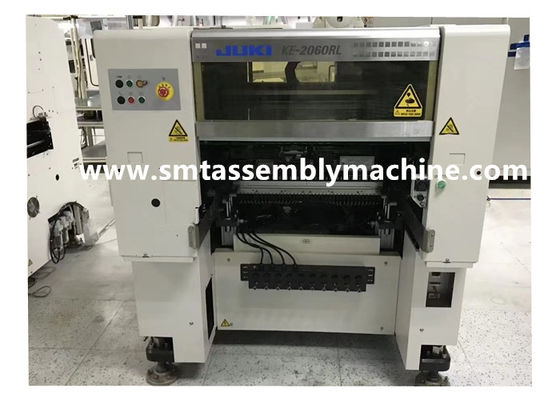

JUKI KE-2060 pick n place machine Laser technology can be patched backlight, lens
JUKI KE-2060 smt placement machine Laser recognition ±0.05mm Yamaha provide
Pcb pick and place machine JUKI 2060-2070 Odd-shaped components can be mounted
SMT Assembly Machine Chip element 13,200CPH substrate 410×360mm smt equipment
Offer Panasonic Yamaha YS24 Samsung481 FUJI JUKI-2050/2060/2070 SMT machines
JUKI KE 2060M 1 laser recognition Image recognition smd pick and place machine
JUKI KE2060 Medium and high speed placement pick place machine Yamaha YSM10
Imperial 01005 chip lens smt machine JUKI KE2060 placement machine 12,500CPH SMT Assembly Machine
Laser placement head × 1 pick and place machine Lens placement machine JX-350-100LED
Convex lens feeder smt machine JUKI KE2050, KE2060, 2070, 2080, 3010, 3020
Shenzhen Wanbo High-tech Co., Ltd. has long introduced second-hand JUKI placement machines, the company specializes in SMT equipment: placement machines, plug-in machines, SMT peripheral equipment; Accessories: Feida, suction nozzle, JUKI laser head, CPU motherboard sub-CPU board, drive board X/Y/Z/T axis drive, headboard, image control card, I/O board, JUKI servo motor, camera, display touch screen, servo motor, etc.;
The company recycling, trading, leasing, has a team of JUKI senior engineers with rich maintenance experience, specializing in providing JUKI series placement machine software and hardware maintenance and troubleshooting. JUKI machine screening and maintenance, short equipment use time, good maintenance, good production status, provide overseas model order, price advantage is obvious, China region provides maintenance and replacement services, reasonable charges, sufficient warehouse accessories, short maintenance cycle, high one-time maintenance success rate, Pearl River Delta region can provide door-to-door installation, commissioning, maintenance, maintenance.
JUKI KE2060 IC (Image Recognition/Using MNVC) Laser Mount Head × 1 (4 nozzles) and high-resolution vision mounting head × 1 (1 nozzle) 0603 chip (imperial 0201) chip ~ 33.5mm square element 0402 (imperial 01005) Chip factory selectable image recognition (reflection/transparency recognition, ball recognition, segment recognition)
JUKI 2060 modified placement inserting machine parameters:
Substrate size | M substrate (330×250mm) |
Component size | For L substrate (410×360mm) |
Component placement speed | Lwide(510×360mm) |
Component placement accuracy | E substrate (510×460mm) |
Component placement type | 0603 chip (imperial 0201) chip ~ 20mm square element or 26.5×11mm (0402 (imperial 01005) |
Device size*2(W×D×H*3) | Chip element 13,200CPH *1 |
Weight: | Laser recognition ±0.05mm |
JUKI KE2080 placement machine element size laser recognition 0402 (imperial 01005) chip ~ 33.5mm square element image recognition 1.0×00.5mm*2~74mm square element or 50×150mm component placement speed chip element optimal conditions 0.178 seconds / chip (20,200CPH) IPC9850 16,700CPHIC component *3 1,850CPH 4,600CPH*4, component placement accuracy laser identification ± 0.05mm (Cpk≧1) image recognition ±0.03mm (0.04mm when using MNVC (option)±) Up to 80 types of component mounting (converted to 8mm tape)*5
Other models of JUKI placement machines: | |||
JUKI | KE-730 | KE-750 | E-760 |
JUKI | KE-2010 | KE-2030 | KE-2050 |
JUKI | KE-2060 | KE-2070 | KE-2080 |
JUKI | KE-3010 | RS-1R | RS-7R |
JUKI | FX-1 | FX-2 | FX-3 |
JUKI | JX-50 | JX-100 | JX-200 |
JUKI | JX-300 | JX-300LED |
Accessories include: all kinds of original, domestic nozzles, FEEDER, boards, lasers, solenoid valves, inductors,
cylinders, tank chains, etc.), laser maintenance, board maintenance and so on.
