1 Head 6 Suction Nozzles Used SMT Placement Machine JX 100 JX 350 FX 3RA

1 Head 6 Suction Nozzles Used SMT Placement Machine JX 100 JX 350 FX 3RA

Used placement machine JX-100, JX-100LED, JX-350, FX-1R, FX-2 FX-3L FX-3RL FX-3RA

SMT Assembly Machine Second-hand JUKI KE-2070/2050/2060/2080/3010/3020/FX-1R

Second-hand JUKI KE-2070 smt assembly equipment SMD Bluetooth headset charger

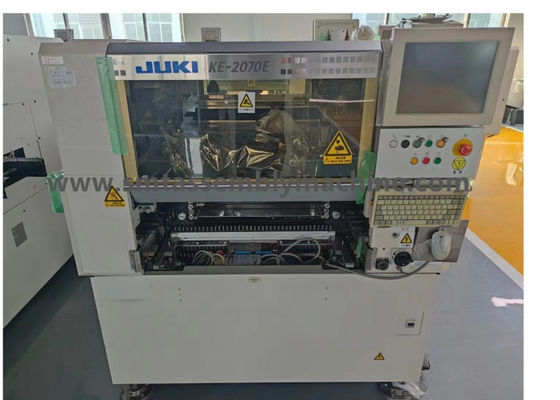

JUKI KE-2070 Pick And Place Machine with a theoretical 23300 points per hour

JUKI KE-2070 equipped with 6 standard SMD heads Element height 6mm specifications

JUKI KE-2070 Pick And Place Machine Remote technical support of equipment

Multifunctional SMT Placement Machine 6 Heads For LED Power Driver / IC Chip

Shenzhen Wanbo High-tech Co., Ltd. has a JUKI senior engineer team with rich maintenance experience, specializing in providing JUKI series placement machine software and hardware maintenance and troubleshooting. It mainly includes JUKI laser head, CPU motherboard SUB-CPU board, drive board X/Y/Z/T axis driver, head board, image control card, I/O board, JUKI servo motor, camera, display touch screen, servo motor and other maintenance and replacement services. The company's fees are reasonable, the warehouse accessories are sufficient, the maintenance cycle is short, the one-time repair success rate is high, and the Pearl River Delta region can provide door-to-door installation, commissioning, maintenance and maintenance.

step 5
Set a board.
When you change the size of a board, you have to adjust the conveyor width and theposition of the pusher X to the size of a board.

This manual describes how to adjust the standard shape reference machine.Refer to Section 2.7.1.3 "Pin reference adjustment" of the "Instruction Manual CD"for how to adjust the pin reference (optional) machine.

<Step 1> Adjust the width of the board transport rail to a board.
① Loosen the adjustment stopper, and turn the adjustment handle to move the pusherX toward the lN buffer.

1.Loosen the setscrew of the adjustment stopper.
2.When you turn the adjustment handle, thepusher X starts moving.
3. Move the pusher x toward the lN buffer.

② Turn the handle knob to adjust the width of the board transport rail to a board to be used.
Turn the handle knob to adjust the widthof the board transport rail.

After adjustment, remove the handleknob.

Adjust the rail width so thatthe distance between theboard and the rail can be 0.5mm to 1 mm.
Check to see if a board canbe transported smoothlyover the transport rail.

Accessories include: all kinds of original, domestic nozzles, FEEDER, boards, lasers, solenoid valves, inductors,

cylinders, tank chains, etc.), laser maintenance, board maintenance and so on.
