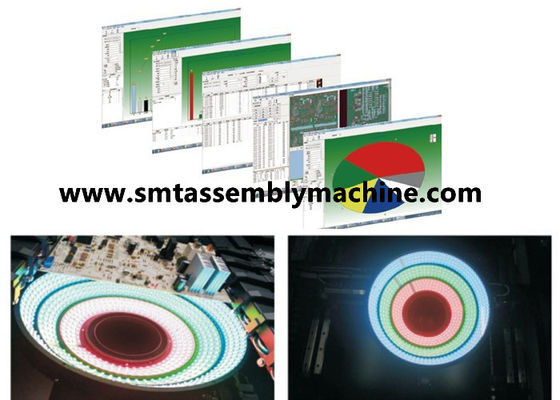

Offline Versatile AOI Inspection Machine SZ-X3 Software Function Image Comparison High Pass Rate


The function of AOI testing equipment is to detect PCBA board control defective products.
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.

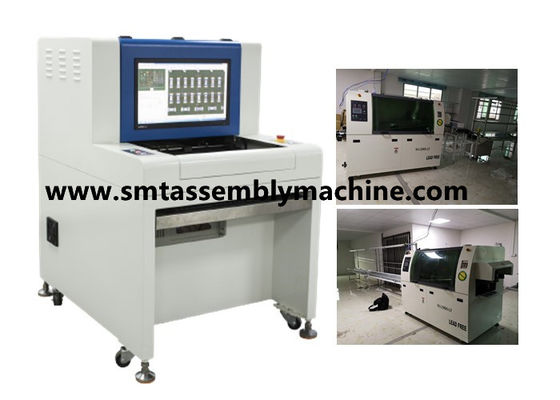

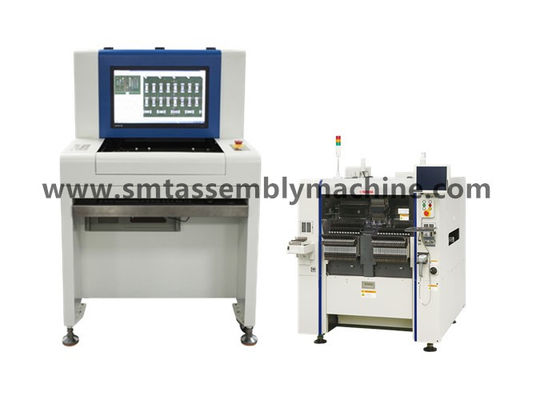

Equipment separation line machine and online machine.
Offline models: X1 detection patch products, X3 detection plug-in products;
Online models: X5 camera photo detection patch products, X6 camera photo detection plug-in products.

Shenzhen Wanbo Hi-Tech Co., Ltd. is a professional electronic equipment manufacturer integrating R&D, production and sales.
1. Production: AOI testing equipment, AI plug-in machine, wave soldering, reflow soldering, connection platform, automatic loading and unloading machine, stacking machine, corner machine and other equipment;
2. The warehouse has second-hand equipment: Panasonic placement machine, Yamaha placement machine, JUKI placement machine, Samsung placement machine, domestic EZ-Link placement machine, domestic platform machine placement machine,
Printing machine, reflow soldering and other supporting equipment; The warehouse has accessories: motors, boards, laser heads, accessories FEEDER, nozzles, etc.

Shenzhen Wanbo Hi-Tech Co., Ltd. has invested millions of yuan in the maintenance business department, purchased advanced maintenance equipment and instruments from abroad, and can carry out disassembly-free online testing of the quality of various control board ICs. Equipped with various programmers, various PROM, EEPROM, PLD, MCU and other programmable ICs to download, program, copy, decrypt, encryption, etc. It has advanced laser special testing and debugging instruments and equipment. And self-developed and designed dozens of simulation test fixtures. The repaired parts can be quickly repaired, replaced and discounted.


Device parameters and configuration


Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
