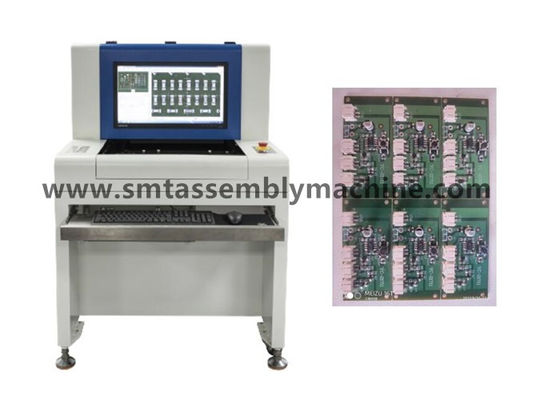

AOI Surface Mount Machine SZ-X1 0201 0402 0805 PCB Inspection System

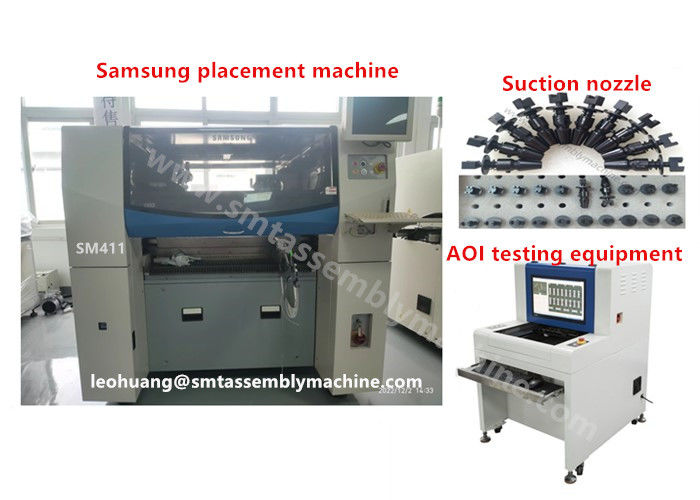

AOI Inspection Machine  SMT patches and inspection equipment

3. AOI advantages:
1) Inspectable items:pick and place  smd machinesmd equipment
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.surface mount device
SMT: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin,smt assembly equipment

smt placement equipment short circuit, virtual soldering, etc.led pick and place machine

2) Powerful software features
◆Color extraction, statistical analysis ◆Character recognition (OCR) ◆Color distance analysis
◆IC bridging ◆Black and white specific gravity analysis ◆Luminance analysis
◆ Graphic similarity analysis ◆ CAD data import ◆ SPC statistics function
◆ Operation level management ◆ Barcode scanning ◆ Offline programming
◆CAD data function ◆Automatic identification and detection of the bottom surface ◆ Multi-panel detection
◆ Multi-machine interconnection ◆ Self-built component standard library ◆ It can generate and export daily, weekly and monthly reports

SOP component

SOP parts, which are one of the IC components, are one of the common components after the furnace. smt placement machine

This type of component has directionality, silk screen printing, N IC pins, and polarity mark. Its registration diagram is as follows:

See the figure above, where the red box is the main frame, the white box is the wrong part frame, surface mount equipment

the blue box is the virtual soldering frame (including the less tin frame and the empty solder frame), smt pick and place equipment

the green box is the polar box, and the yellow box is the short-circuit box. All test frames are polar. smd placement machine

Short-circuit box: It is to detect whether tin connection or short circuit occurs between the solder joint frames in the short-circuit frame.

Its registration form is as follows:
