Product Details:
Payment & Shipping Terms:
|
| Product Name: | AOI Testing Equipment | Model: | SZ-X1 |
|---|---|---|---|
| Operating System: | Professional Windows7 | Power: | <1.5Kw |
| Weight: | 400KG | Usage: | PCBA Examination |
| Highlight: | AOI SMT Assembly Machine,1.5Kw smd placement machine,IC SMD Placement Machine |
||

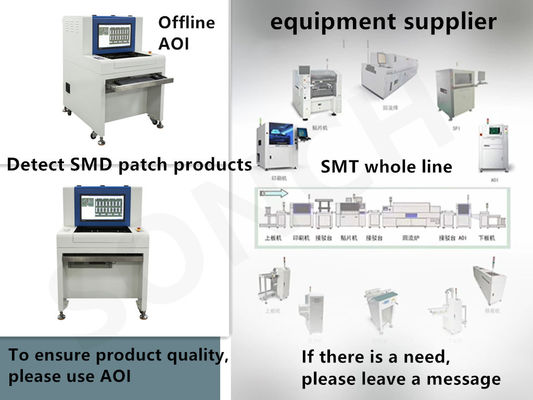

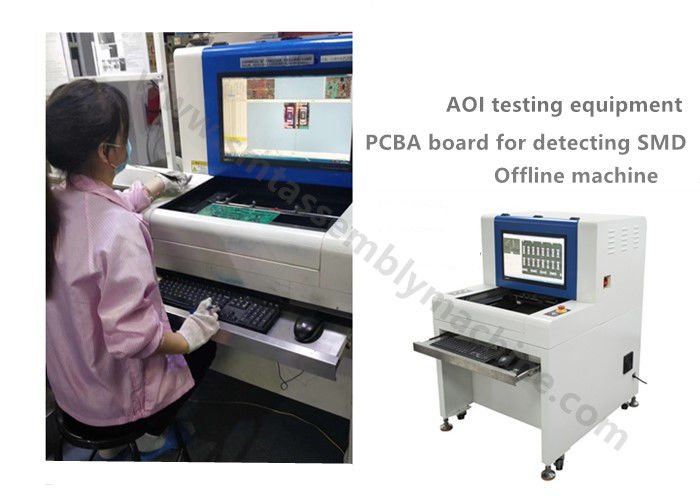

SMT AOI Assembly Machine 10µm: 01005chip & 0.3pitch IC smd placement machine
3. AOI advantages:
1) Checkable items:
After DIP plug-in wave soldering: too much tin, little tin, tin hole, short circuit, pin not coming out, etc.
SMT: Missing parts, dislocation, wrong parts, reverse polarity, damage, pollution, less tin, more tin, short circuit, virtual welding, etc.
2) Powerful software function
*Color extraction, statistical analysis
*Character recognition (OCR) smd placement machine
*Color distance analysis
*IC bridging
*Black and white specific gravity analysis
*Brightness analysis
*Graph similarity analysis
*CAD data import
*SPC statistics function
*Operation level management
*Barcode scanning
*Offline programming smd placement machine
*CAD data function
*Automatic recognition and detection of bottom surface
*Multi-panel detection
*Multi-machine interconnection
*Self-built component standard library
*Daily, weekly, and monthly reports can be generated and exported
*Multiple maintenance stations can be connected
3) Precision mechanical structure design
*High rigidity frame, reasonable mechanical smd placement machine center of gravity,
low vibration during operation, beautiful appearance.
*Precision screw guide rail and linear rail
*Precision automatic fixture, convenient and quick to load and unload PCB
*Exquisite assembly skills to ensure stable use and long life of the whole machine.
4), stable electrical control
*Servo drive system, stable and mature
*LS mature and stable motion control
*EPIX advanced image shooting and processing technology
OMRON's stable electrical components, long service life
*LAAP high flexible towline cable, the service life can reach 5-8 million times
*The circuit is stable, easy to maintain and safe.
5), scientific light source design
*Philips LED
*The overall processing technology ensures the accuracy of the light angle of the light source
*Strict brightness detection
*Strict aging test to ensure a service life of 50,000 hours
*Scientific use of the principle of three-color light can make the components show different colors
of the body and solder at different angles to achieve accurate detection purposes
| Functional Specifications | |
| Tested circuit board | Circuit board inspection after SMT reflow oven, before wave soldering, and circuit board inspection after wave soldering. |
| Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of its parameters (such as offset, polarity, short circuit, etc.) according to different detection points |
| Camera | Full color smart digital camera |
| Resolution/visual range/speed |
Optional: 25µm/Pixel FOV: 40.70mm X30.90mm Detection speed <270ms/FOV Standard configuration: 20µm/Pixel FOV: 32.56mm×24.72mm Detection speed <260ms/FOV Optional: 15µm/Pixel FOV: 24.42mm X18.54mm Detection speed <240ms/FOV Optional: 10µm/Pixel FOV: 16.28mm X12.36mm Detection speed <220ms/FOV |
| light source | Highlight RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manual writing, automatic frame, CAD data import and automatic corresponding component library |
| remote control | Realize remote operation, view anytime and anywhere, start or stop machine operation, modify program and other operations through TCP/IP network |
| Detection coverage type | Offset, low tin, short circuit, pollution, missing parts, skew, tombstones, side standing, overturned parts, wrong parts, damage, floating height, polarity, virtual solder, empty solder, overflow glue, tin hole, lead failure Wait out |
| Special function | Simultaneous operation of multiple programs, supports automatic calling programs; can check 0-359°rotating parts (unit: 1°) |
| Minimum part test | 10µm: 01005chip & 0.3pitch IC |
| operating system | Windows7 Professional |
| Check the result output | 22 inch LCD monitor |
| System Specifications | |
| PCB size range | 50×50mm(Min)～430×330mm(Max) |
| PCB thickness range | 0.3 to 5 mm |
