| Product Name: | Smt PCB Conveyor | Power Supply: | AC100-230V, 50Hz |
|---|---|---|---|
| Conveyor Height: | 900±20 (or User Specified) | Control Method: | Photoelectric Relay |
| Conveyor Type: | Round Belt | Conveyor Direction: | Right→left Or Left→right |
| Highlight: | Round Belt SMT Conveyor,White Light SMT Conveyor |
||
White SMT splicing table automatic control method, press LIGHT switch lighting

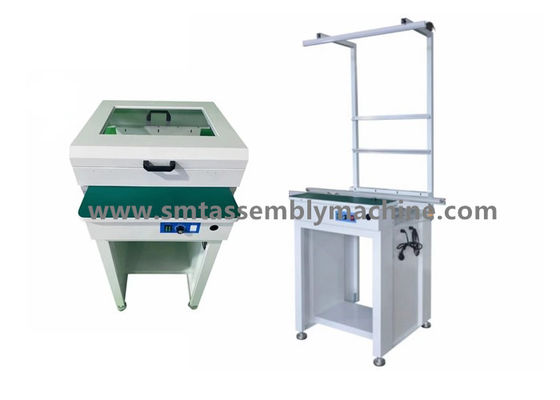

Transfer the PCB board 0.5m 0.6m 1m1.2m1.5 Splice table with light stand
Docking station 0.5m0.6m1m1.2m1.5mSplicing table with light stand screw width
Use anti-static rubber SMT dock 0.5m 0.6m 1.2m Splicing table with light stand
Smd mounting machine 0.5m 0.6m 1m 1.2m 1.5m SMT dock Length optional dock

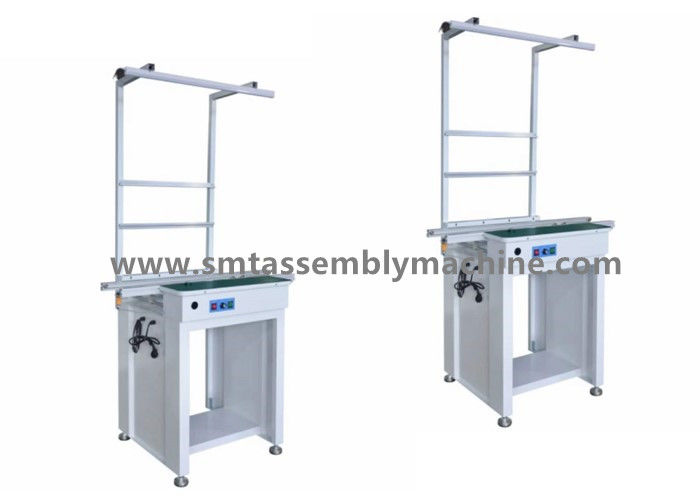

PCB conveyor, smt pcb conveyor belt with lamp, adjustable width conveyor
Product name: smt pcb conveyor, Adjustable inline conveyor for smt line
SMT dock product features
Automatic manual two working modes, standard anti-static work surface.
Anti-static flat belt, aluminum profile guide rail, to ensure smooth connection and smooth transportation.
Widen the mechanism to ensure that the transport rails are parallel to each other.
Equipped with signal communication interface, can be connected to other devices online.
Standard light stand and process cardboard.
Electronic speed regulator speed regulation, transportation speed 0-2M/min adjustable.
ALL DOCKS ARE ADJUSTABLE IN WIDTH OF 650MM AND HEIGHT OF 900MM,
THE TOTAL HEIGHT WITH LIGHT STAND IS 1850MM ADJUSTABLE.
SMT patch station (non-calibrated various lengths)
Technical parameters
Translated with www.DeepL.com/Translator (free version)
| Description | This equipment is used for connection between SMT and AI lines, jogging between PCBs, inspection, testing or manual insertion of electronic components |
| Conveyor Type | Round belt or flat belt |
| Conveyor speed | 0.5-20 m/min or user specified |
| Power supply | 100-230V AC (user specified), single phase |
| Electrical load | Max. 100 volts A |
| Conveyor height | 900±20 (or user specified) |
| Conveyor direction | Left→right or right→left |
SMT splicing table operation step by step instructions
Adjust the speed of belt operation according to the speed of front and back splicing.
1,SMT splicing table automatic control mode
a Press the POWER button.
b Press the LIGHT button.
c Press the PASS/CHECK button.
2,SMT splicing table manual control mode
a. Press POWER button; b. Press LIGHT button; c. Press PASS/CHECK button.
b. Press the LIGHT button.
c. When the inspection is finished, press the FINISH button.
3,Press POWER button to turn off the machine
SMT splicing table operation precautions
1,Ensure that the transportation part, belt, pulley and transportation guide are free of foreign matter to ensure smooth and smooth transportation.
2,Regularly refuel the transmission part and the rack or adjust the width of the screw, refueling must be performed in the shutdown state.
3,In case of power failure, turn off the main switch of the equipment immediately.
Translated with www.DeepL.com/Translator (free version)
