| Product Name: | SMT 0.5M PCB Conveyor | Conveyor Type: | Round Belt Or Flat Belt |
|---|---|---|---|
| Conveyor Height: | 900±20 (or User Specified) | Voltage: | 110/220V 50/60HZ |
| Material: | Aluminium | Structure: | Conveyor System |
| Highlight: | Placement Machines SMT PCB Conveyor,SMT PCB Conveyor 220V |
||
Automatic pcb soldering SMT docks can be used with a variety of placement machines
Pcb router machine Medium and high speed placement machine 1.2m1.5mSplicing table
Silver white housing pcb shuttle conveyor SMT patches and inspection equipment
Pcb printing machine Panasonic mounter CM602-L Transfer the PCB board 0.5m0.6m
Buffer conveyor Green belt silver aluminum profile Key control SMT dock
SMT splice table transfer equipment for connection between SMT and AI lines YSM20

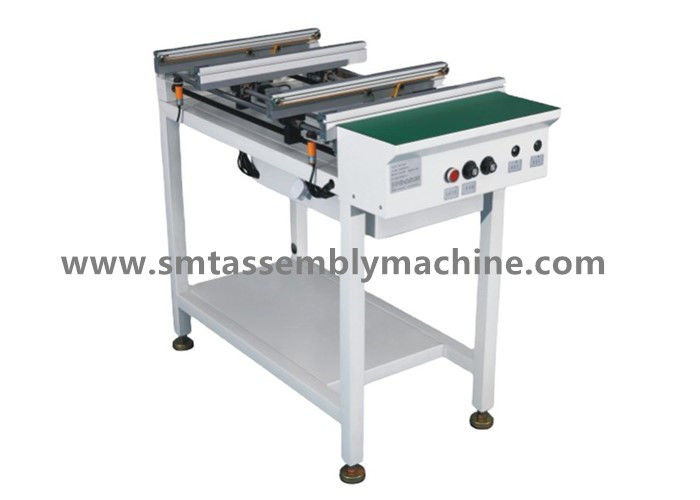

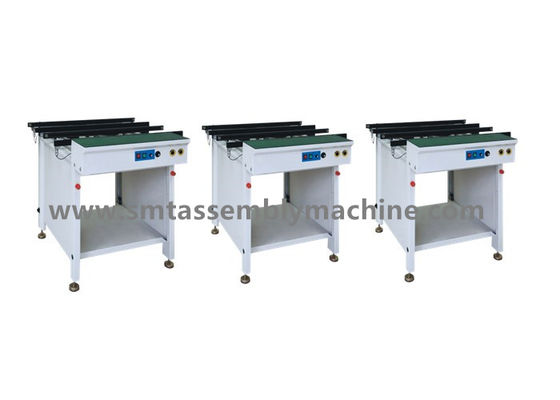

Double Rail Splice Table
Features
1. Modular design
2. Sturdy design improves stability
3. Ergonomic design makes the arm less fatigued
4. Smooth and parallel width adjustment (screw)
5.Optional circuit board detection mode
6. Customized machine length according to customer requirements
7. Variable speed control
8. Anti-static rubber is used
9. Compatible with SMEMA interface
Automatic splice table
: This equipment is used to connect with the SMT production line equipment, while the PCB board for heat dissipation, transport Action flow: no products on the splice table, give the front machine a signal to board - receive the product and transport cache, wait for the back machine to board signal - receiving a want board signal from the back machine and transporting the product to the back machine.
Technical parameters
| Description | This equipment is used for connection between SMT and AI lines, jogging between PCBs, inspection, testing or manual insertion of electronic components |
| Conveyor Type | Round belt or flat belt |
| Conveyor speed | 0.5-20 m/min or user specified |
| Power supply | 100-230V AC (user specified), single phase |
| Electrical load | Max. 100 volts A |
| Conveyor height | 900±20 (or user specified) |
| Conveyor direction | Left→right or right→left |
Specification parameters
| Model Number |
A-50A/FCA-60A A-80A/FCA-100A |
A-50B/FCA-60B A-80B/FCA-100B |
A-50AL/FCA-60AL A-80AL/FCA-100AL |
| Circuit board size | 50*50-460*350 | 50*50-460*350 | 50*50-460*350 |
| Dimension | 1000*695*910 | 1000*695*1850 | 500*695*1850 |
| Weight | 60kg | 110kg | 60kg |
SMT splicing table operation precautions
1,Ensure that the transportation part, belt, pulley and transportation guide are free of foreign matter to ensure smooth and smooth transportation.
2,Regularly refuel the transmission part and the rack or adjust the width of the screw, refueling must be performed in the shutdown state.
3,In case of power failure, turn off the main switch of the equipment immediately.
Adjust the speed of belt operation according to the speed of front and back splicing.
SMT splicing table automatic control mode, press POWER button.
Press the LIGHT button; press the PASS/CHECK button.
Manual control mode of SMT splicing table
Press the POWER button; press the LIGHT button.
When the inspection is finished, press the FINISH button.
Turn off the machine and press the POWER button.
