Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMT 0.5M PCB Conveyor | Conveyor Type: | Round Belt Or Flat Belt |
|---|---|---|---|
| Conveyor Height: | 900±20 (or User Specified) | Application: | PCB Transport |
| Type: | Screw Conveyor | Structure: | Belt Conveyor |
| Highlight: | White Housing PCB Shuttle Conveyor,Silver White SMT PCB Conveyor,SMT PCB shuttle conveyor |
||

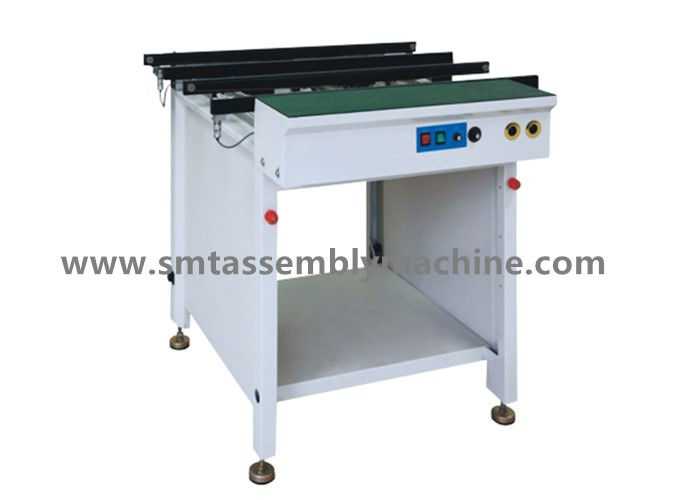

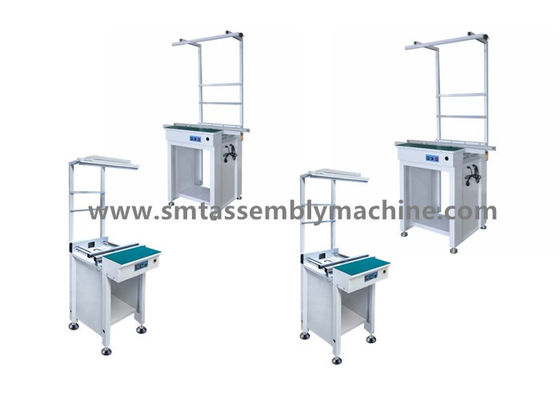

Silver white housing pcb shuttle conveyor SMT patches and inspection equipment
Pcb printing machine Panasonic mounter CM602-L Transfer the PCB board 0.5m0.6m
Buffer conveyor Green belt silver aluminum profile Key control SMT dock
SMT splice table transfer equipment for connection between SMT and AI lines YSM20
Double Rail Splice Table
Features
1. Modular design
2. Sturdy design improves stability
3. Ergonomic design makes the arm less fatigued
4. Smooth and parallel width adjustment (screw)
5.Optional circuit board detection mode
6. Customized machine length according to customer requirements
7. Variable speed control
8. Anti-static rubber is used
9. Compatible with SMEMA interface
Technical parameters
| Description | This equipment is used for connection between SMT and AI lines, jogging between PCBs, inspection, testing or manual insertion of electronic components |
| Conveyor Type | Round belt or flat belt |
| Conveyor speed | 0.5-20 m/min or user specified |
| Power supply | 100-230V AC (user specified), single phase |
| Electrical load | Max. 100 volts A |
| Conveyor height | 900±20 (or user specified) |
| Conveyor direction | Left→right or right→left |
SMT splicing table operation precautions
1,Ensure that the transportation part, belt, pulley and transportation guide are free of foreign matter to ensure smooth and smooth transportation.
2,Regularly refuel the transmission part and the rack or adjust the width of the screw, refueling must be performed in the shutdown state.
3,In case of power failure, turn off the main switch of the equipment immediately.
The company distributes and retails SMT equipment and accessories, supplying Samsung placement machines, JUKI placement machines,
FUJI placement machines, YAMAHA placement machines, Panasonic placement machines,
SANYO, SONY, PHILIPS, HITACHI, GSM, MIRAI, IPULSE, CASIO, EVEST, UZUKI, CHINA PLACEMENT MACHINE,
SPECIAL CUSTOMIZATION AND OTHER MECHANICAL EQUIPMENT AND ACCESSORIES.
