AC220V 50Hz SMT PCB Conveyor 0.5m 0.6m 1m 1.2m 1.5m SMT Dock Length
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Smt PCB Conveyor | Power: | AC220V, 50Hz |
|---|---|---|---|
| Speed: | 0-10000mm/min | Width: | 0-350mm |
| Conveyor Type: | Round Belt Or Flat Belt | Conveyor Speed: | 0.5-20 M/min Or User Specified |
| High Light: | AC220V SMT PCB Conveyor,Modular SMT PCB Conveyor |
||

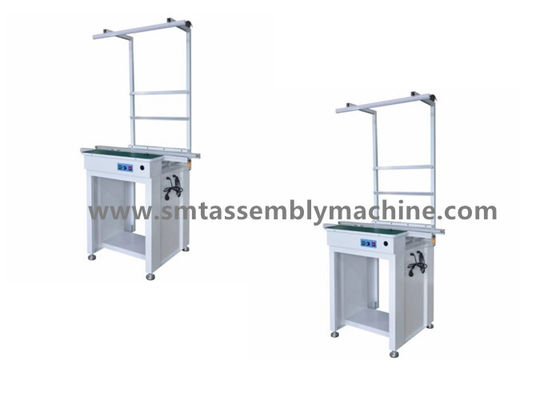

Smd mounting machine 0.5m 0.6m 1m 1.2m 1.5m SMT dock Length optional dock
PCB conveyor, smt pcb conveyor belt with lamp, adjustable width conveyor
Product name: smt pcb conveyor, Adjustable inline conveyor for smt line

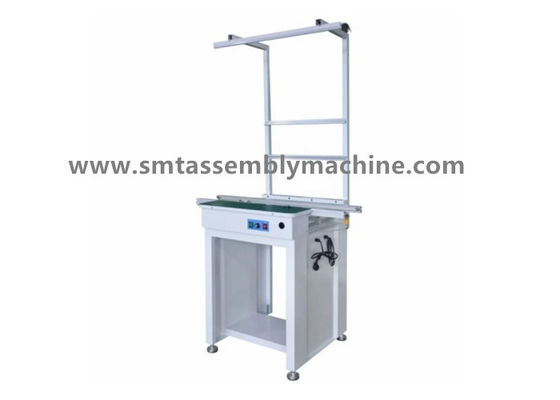

Splicing table with light stand
Features
1.Modular design
2. Sturdy design improves stability
3. Ergonomic design makes the arm less fatigued
4. Smooth and parallel width adjustment (filament rod)
5. Optional circuit board detection mode
6. Customized machine length according to customer requirements
7. Variable speed control
8. Use anti-static rubber
9. Compatible with SMEMA interface
Technical parameters
Translated with www.DeepL.com/Translator (free version)
| Description | This equipment is used for connection between SMT and AI lines, jogging between PCBs, inspection, testing or manual insertion of electronic components |
| Conveyor Type | Round belt or flat belt |
| Conveyor speed | 0.5-20 m/min or user specified |
| Power supply | 100-230V AC (user specified), single phase |
| Electrical load | Max. 100 volts A |
| Conveyor height | 900±20 (or user specified) |
| Conveyor direction | Left→right or right→left |
Specification parameters
| Model Number |
FCA-50A/FCA-60A FCA-80A/FCA-100A |
FCA-50B/FCA-60B FCA-80B/FCA-100B |
FCA-50AL/FCA-60AL FCA-80AL/FCA-100AL |
| Circuit board size | 50*50-460*350 | 50*50-460*350 | 50*50-460*350 |
| Dimension | 1000*695*910 | 1000*695*1850 | 500*695*1850 |
| Weight | 60kg | 110kg | 60kg |
Control Panel Description
The FINISH button does not have self-locking, and each press indicates that the inspection is complete,
The PCB board passes and continues to run.
The PASS/CHECK button is not pressed
PASS PCB board does not need to be checked, automatically passed; Press
CHECK means that the PCB board needs manual inspection and needs to be used with FINISH.
POWER is the power switch, pressed to power on.
LIGHT is a lighting switch.
