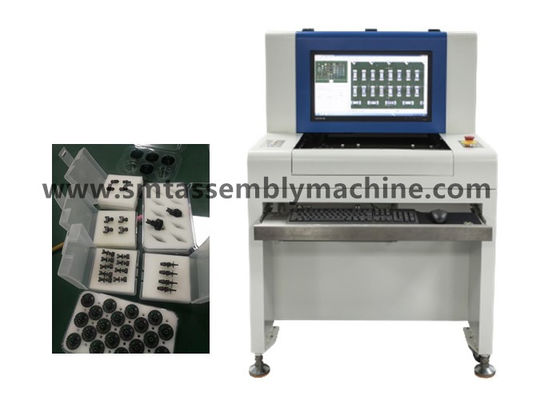

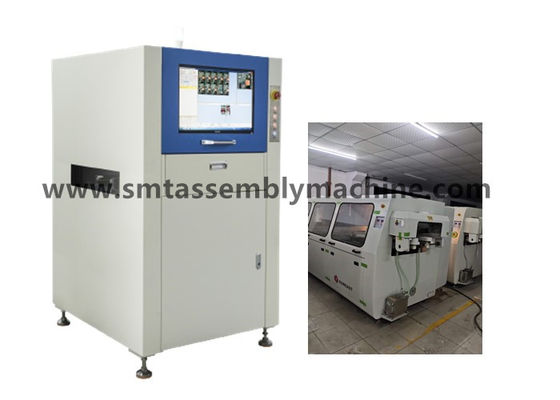

SZ-X3 AOI Inspection Machine Detects Positive And Negative Polarity Welding


Shenzhen Wanbo Hi-Tech Co., Ltd. is a professional electronic equipment manufacturer integrating R&D, production and sales, producing: AOI testing equipment, AI plug-in machine, wave soldering, reflow soldering, connection platform, automatic loading and unloading machine, stacking machine, corner machine and other equipment; The warehouse has second-hand equipment: Panasonic placement machine, Yamaha placement machine, JUKI placement machine, Samsung placement machine, domestic EZ-pass placement machine, domestic platform machine placement machine, printing machine, reflow soldering and other supporting equipment; The warehouse has accessories: motors, boards, laser heads, accessories FEEDER, nozzles, etc.

The function of AOI testing equipment is to detect PCBA board control defective products.
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.

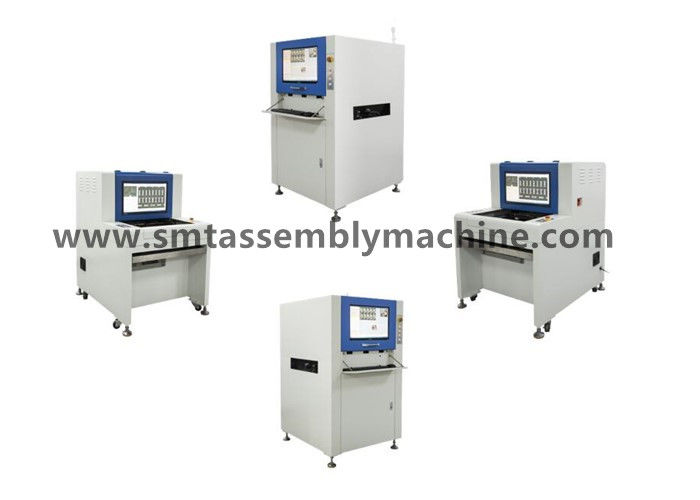

Equipment separation line machine and online machine.
Offline models: X1 detection patch products, X3 detection plug-in products;
Online models: X5 camera photo detection patch products, X6 camera photo detection plug-in products.

1. AOI principle: use modern optical principles and digital camera technology to shoot the detected object in real time, analyze and process the captured image through computer and special software, and automatically generate detection results.
2. AOI function: AOI effective detection rate: more than 99% (manual detection rate: about 70%);
Reduce labor: 2-4 people/production line, high detection efficiency;
Through the SPC function, the process defects can be accurately counted and can be effectively controlled;
The stability is much higher than that of labor, long-term use, the comprehensive cost can be significantly reduced;
It can enhance the company's comprehensive strength and effectively improve the company's overall competitiveness.

SMD is the abbreviation of Surface Mounted Devices, which means: surface mount device, it is SMT (Surface Mount
Technology) components, including CHIP, SOP, SOJ, PLCC, LCCC, QFP, BGA, CSP, FC, MCM and so on.
Surface mount components were introduced about two decades ago and ushered in a new era. From passive components to active components and integrated circuits,
The end result is a surface mount device (SMD) that can be assembled via pick-and-place equipment.
For a long time, it was assumed that all lead components would eventually be available in SMD packages.
SMT is the abbreviation of Surface Mount Technology, which means: surface assembly technology, which is currently the most popular technology and process in the electronics assembly industry.
SMT is a new generation of electronic assembly technology, which compresses traditional electronic components into devices that are only a few tenths of the size.
As a result, electronic product assembly is realized with high density, high reliability, miniaturization, low cost, and production automation.
This miniaturized component is called: SMD device (or SMC, chip device). The process method of assembling components onto a printed board PCB is called the SMT process.
Device parameters and configuration


Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
