Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
---|---|---|---|
Dimension: | 1070*900*1310mm | Check: | Off The Plate Machine After Wave Soldering |
Detection Method: | Statistics Function SPC | Detection Coverage: | Mistake Turnover |
High Light: | PCBAS smt aoi machine,Bluetooth Earphone Board smt aoi machine,Offline AOI Machine |
Shenzhen Wanbo Hi-Tech Co., Ltd. is a professional electronic equipment manufacturer integrating R&D, production and sales, producing: AOI testing equipment, AI plug-in machine, wave soldering, reflow soldering, connection platform, automatic loading and unloading machine, stacking machine, corner machine and other equipment; The warehouse has second-hand equipment: Panasonic placement machine, Yamaha placement machine, JUKI placement machine, Samsung placement machine, domestic EZ-pass placement machine, domestic platform machine placement machine, printing machine, reflow soldering and other supporting equipment; The warehouse has accessories: motors, boards, laser heads, accessories FEEDER, nozzles, etc.
The function of AOI testing equipment is to detect PCBA board control defective products.
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.
Equipment separation line machine and online machine.

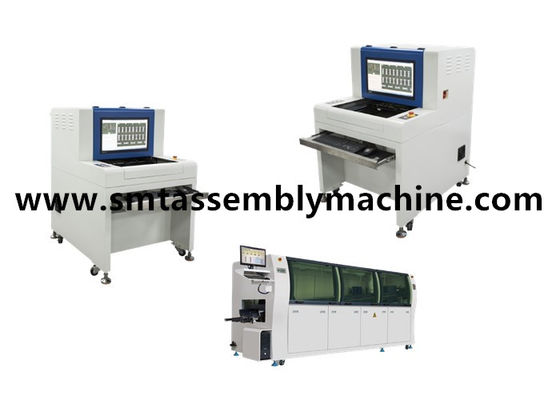

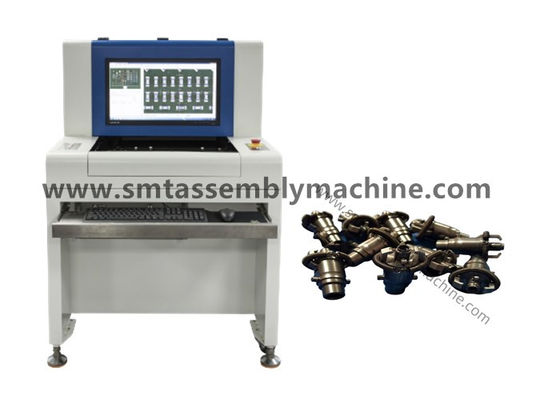

Offline models: X1 detection patch products, X3 detection plug-in products;

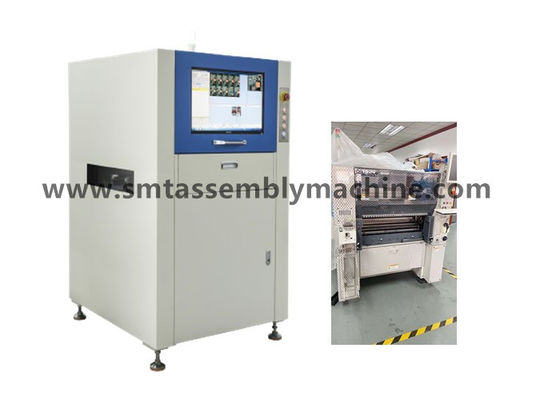

Online models: X5 camera photo detection patch products, X6 camera photo detection plug-in products.
Fujifilm FUJI full range placement machine:
CP series, XP series, NXT series M3, M6 and AIMEX series, CP series
The models of high-speed module machines are as follows (Fujifilm's high-end machines):
NXT M3,M3S,M3 II,M3IIC,M3 III,M3 IIIC,M6,M6 II,M6 IIC,M6 III,M6 IIIC
NXT has NXT I/NXT II/NXT III/respectively NXT generation, NXT II generation, NXT III generation, the first generation appeared in 2004, the second generation appeared in 2009, and the third generation appeared in 2013.
Medium-speed multifunction machine models are as follows (XPF series): XPF-L, XPF-W, XPF-S, all of which appeared in 2008.
CP/xp series models are Fujifilm placement machine older series, such as including CP732/CP742/CP842 and other models,
This series of models is currently in circulation on the market is relatively small, the year is relatively long, the general placement factory uses less, because the accuracy of placement is not too high,
are relatively large materials, such as 0603 and above, the current mainstream 0402/0201 electronic component placement is not ideal.
The models of high-speed turret machines are as follows (CP series, as the name implies, is a patch model that mainly plays CHIP):
CP6,CP642E,CP642ME,CP643E,CP643ME;
CP732,CP733,CP742E,CP742ME,CP743E,CP743ME;
CP842E,CP842ME
XP series models XP241, XP242, XP243;
XP series are divided into XP141E, XP241E, XP142E, XP242E, XP143E, XP243E;
NXT series
Fujifilm NXT series is currently the mainstream model in the Fujifilm market, many electronic processing factories choose M3III/M6III two models as the choice of electronic processing.
At present, M3/M6 has been developed into the third generation of medium/high-speed machines, and many processing plants in the market are used to make consumer electronics. The minimum placement accuracy can be placed to 01005 and 0201.
AIMEX series
Fujifilm AIMEX series belongs to Fujifilm's relatively new series, and there are relatively few in circulation in the second-hand market, according to different products
Choose different placement heads, different placement head CPH corresponding to different placement speed and capacity.
Fujifilm placement machine series models are numerous, models are also numerous, in addition to Fujifilm placement machine and GL, GP series models, GL is a dispenser series, GP is a printing machine series, but the industry is used less,
The CP series is the series with the largest number of Fujifilm models, and the NXT series is currently the most used on the market
Fujifilm placement machine and Siemens, Panasonic placement machine, belongs to the placement machine industry "troika", these three brands of placement machine in the market share is also the highest,
Therefore, the choice of placement machine with high market share, whether it is technical services or machine accessories, is relatively easy to find, and it is more guaranteed for after-sales.
Device parameters and configuration
Functional Specifications | |
Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.) |
Camera | Full color smart digital camera |
Resolution/Visual Range/Speed |
Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV |
light source | High brightness RRGB coaxial ring tower LED light source (color light) |
Programming mode | Manual writing, automatic framing, CAD data import and automatic correspondence libraries |
Remote control | Remote operation, viewing, starting or stopping machine running, modifying programs, etc. anytime, anywhere, anytime, anywhere through TCP/IP network |
Barcode system | Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark) |
Server mode | Using a central server, several AOI data sets can be centrally managed |
operating system | Windows7 Professional |
Check the result output | 22 inch LCD monitor |
System Specifications | |
PCB size range | 50×50mm(Min)~430×330mm(Max) |
PCB thickness range | 0.3 to 5 mm |
PCB clamping system edge clearance | TOP:3.5 mm Bottom:3.5 mm |
Maximum PCB weight | 3KG |
PCB flex | <5mm or 2% of PCB diagonal length |
PCB top and bottom net height | PCB Top Side: 30 mm PCB Bottom Side: 60 mm |
Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
Conveyor height above the ground | 850 to 920 mm |
Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
Device weight | APPROX. 350KG |
Device form factor | 1070×900×1310mm (L×W×H) |
Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
