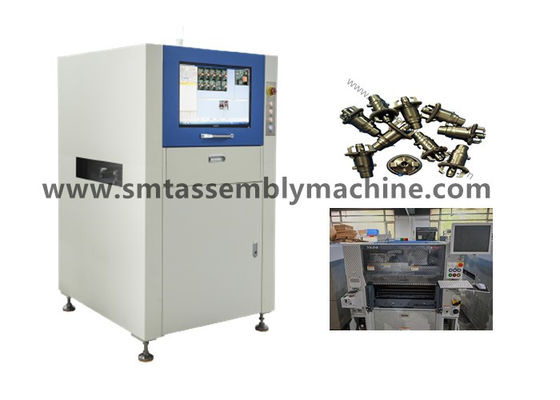

Yamaha YS24 Led Pick And Place Machine AOI SZ-X3 Vision Detect Keyboard Board


Shenzhen Wanbo Hi-Tech Co., Ltd. is a professional electronic equipment manufacturer integrating R&D, production and sales, producing: AOI testing equipment, AI plug-in machine, wave soldering, reflow soldering, connection platform, automatic loading and unloading machine, stacking machine, corner machine and other equipment; The warehouse has second-hand equipment: Panasonic placement machine, Yamaha placement machine, JUKI placement machine, Samsung placement machine, domestic EZ-pass placement machine, domestic platform machine placement machine, printing machine, reflow soldering and other supporting equipment; The warehouse has accessories: motors, boards, laser heads, accessories FEEDER, nozzles, etc.

The function of AOI testing equipment is to detect PCBA board control defective products.
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.

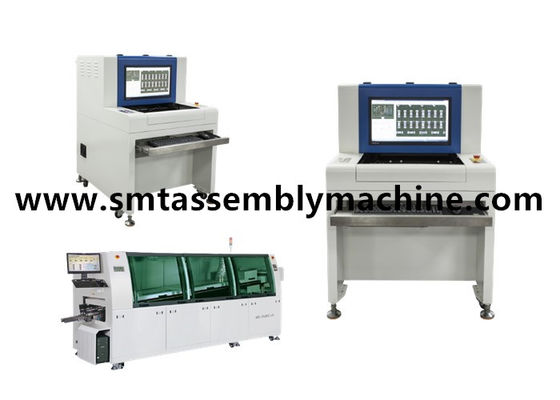

Equipment separation line machine and online machine.

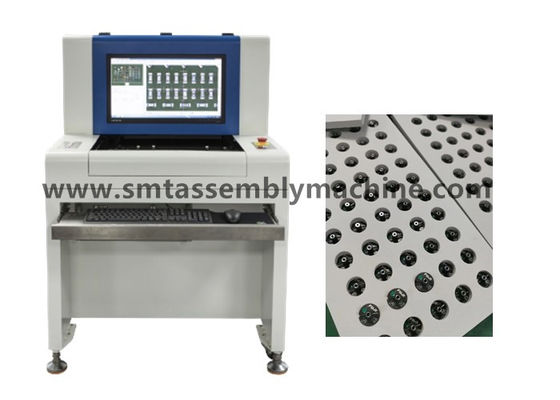

Offline models: X1 detection patch products, X3 detection plug-in products;
Online models: X5 camera photo detection patch products, X6 camera photo detection plug-in products.

Fujifilm FUJI full range placement machine:
CP series, XP series, NXT series M3, M6 and AIMEX series, CP series
The models of high-speed module machines are as follows (Fujifilm's high-end machines):
NXT M3,M3S,M3 II,M3IIC,M3 III,M3 IIIC,M6,M6 II,M6 IIC,M6 III,M6 IIIC
NXT has NXT I/NXT II/NXT III/respectively NXT generation, NXT II generation, NXT III generation, the first generation appeared in 2004, the second generation appeared in 2009, and the third generation appeared in 2013.
Medium-speed multifunction machine models are as follows (XPF series): XPF-L, XPF-W, XPF-S, all of which appeared in 2008.
CP/xp series models are Fujifilm placement machine older series, such as including CP732/CP742/CP842 and other models,
This series of models is currently in circulation on the market is relatively small, the year is relatively long, the general placement factory uses less, because the accuracy of placement is not too high,
are relatively large materials, such as 0603 and above, the current mainstream 0402/0201 electronic component placement is not ideal.
The models of high-speed turret machines are as follows (CP series, as the name implies, is a patch model that mainly plays CHIP):
CP6,CP642E,CP642ME,CP643E,CP643ME;
CP732,CP733,CP742E,CP742ME,CP743E,CP743ME;
CP842E,CP842ME
XP series models XP241, XP242, XP243;
XP series are divided into XP141E, XP241E, XP142E, XP242E, XP143E, XP243E;

The classic models of JUKI placement machines are as follows:
FX-1 FX-3 FX-3R KE-750 KE-760 KE-2010 KE-2020 KE-2030 KE-2050 KE-2060
KE-2070 KE-2080 RX-6 RX-
7 FX-3RL FX-2 KE-3010 KE-3020 JX-100 JX-200 JX-30OLED JX-35OLED RS-1 RS-1R RX-7R JM-10 JM-20 JM-100；
JUKI full range placement machine KJ series
KE series KE-730/750/760, KE-2010/2020/2030/2050/2060/2070/2080 KE-3010/3020
FX series FX-1/ FX-2/ FX-3 are high-speed machines
RX-6 RX-7 FX-3RL
JX series LED special placement machine JX-100 JX-200 JX-300LED JX-350LED
KD-2077 High Speed Smart Placement Machine RS-1
JUKI KJ-01 KJ-02 KJ01 KJ02
Device parameters and configuration


Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
