Product Details:
Payment & Shipping Terms:
|

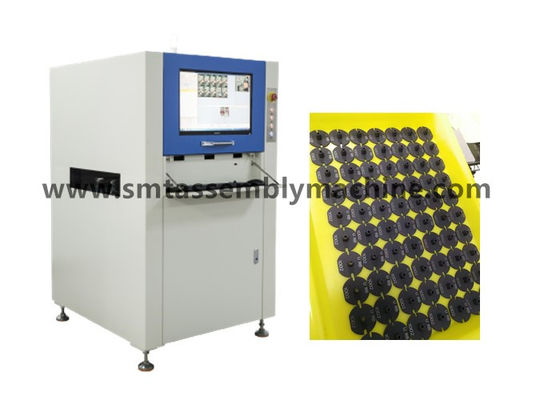

| Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
|---|---|---|---|
| Dimension: | 1070*900*1310mm | Check: | Fan Circuit Board |
| Detection Method: | Automatic Recognition Detection Of The Underside | Detection Coverage: | More Tin, Less Tin, Tin Hole |
| Highlight: | Fan Circuit Board optical inspection machine,PCBAS optical inspection machine,Offline pcb aoi machine |
||
Shenzhen Wanbo Hi-Tech Co., Ltd. is a professional electronic equipment manufacturer integrating R&D, production and sales, producing: AOI testing equipment, AI plug-in machine, wave soldering, reflow soldering, connection platform, automatic loading and unloading machine, stacking machine, corner machine and other equipment; The warehouse has second-hand equipment: Panasonic placement machine, Yamaha placement machine, JUKI placement machine, Samsung placement machine, domestic EZ-pass placement machine, domestic platform machine placement machine, printing machine, reflow soldering and other supporting equipment; The warehouse has accessories: motors, boards, laser heads, accessories FEEDER, nozzles, etc.

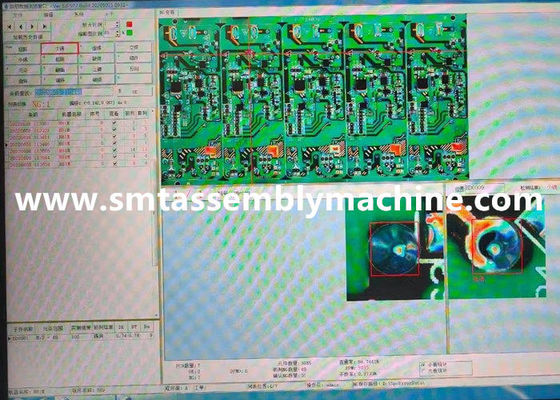

The function of AOI testing equipment is to detect PCBA board control defective products.
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.
History of YAMAHA placement machine products
1984: The YAMAHA IM (Intelligent Machinery) Division successfully develops the "placement machine" and starts selling it in Japan
1987: The YM4600S, YM6000S, and YM6000T were exhibited at NEPCON JAPAN, Japan, and the YM1000D went on sale
1988: YAMA PLACEMENT MACHINE OEM "PHILIPS" STARTS OVERSEAS SALES
1989: Visual alignment technology - YM3000V goes on sale
1990: The Hyper series - YM66S, YM84S, YM100VP - went on sale
1993: The YV112, a full-visual recognition device, went on sale
1994: The YVL80 goes on sale
1995: The YV120 goes on sale
1995: The YV112II goes on sale
1995: YV100, YVL88, YV86D, YV100D go on sale
1997: Full visual recognition devices - YV100II, YVL88II, YV64, YV112III and YV64D go on sale
1997: Cumulative production of 5,000 "Yamaha" surface mount machines
1998: Cumulative production of 2,000 "PHILIPS" surface mount machines
1999: Modular high-speed machines – YV100X, YV88X, YV100XT and HSDX – go on sale
2000: Yamaha IM acquires Tenyru, Japan, a famous chip placement machine manufacturer in Japan, and re-establishes a new company, i Pulse, Japan
2000: Modular high-speed machine - YV180X and "precision high-speed printing machine" - YVP - began sales
2001: Cumulative production of 10,000 surface mount machines
2001: Modular high-speed machines, YV100Xg, YV88Xg, YV100XTg, YV180Xg and HSDXg go on sale
2002: Modular minicomputers – THREE M "YT16" and "Lead-free precision high-speed printing machine" – YVP-Xg go on sale
2003: Hybrid Placer, SEMI and SMT hybrid placement equipment - Cube goes on sale
2004: Modular ultra-high-speed machine YG200 goes on sale
2004: Modular ultra-high-speed dispenser - YGD goes on sale 2005: "Modular high-speed machine" - YG100 goes on sale
2005: Modular AOI-YGI goes on sale
2005: The modular ultra-high-precision multifunction machine – YG88 goes on sale
2007: The modular ultra-high-speed placement machine – YG300 goes on sale
2008: The modular high-speed placement machine – YG12 goes on sale
2009: The modular high-precision multifunction machine – YG12F goes on sale
2009: The modular ultra-high-speed placement machine – YS24 & YS24X goes on sale
2012: The YSM40 high-density module placement machine is launched
2013: High-speed dispensing machine - YSD launched
2014: The YCP10 high-performance compact printing machine and the Z:LEX high-performance compact printing machine are launched
2015: The ultra-high-speed placement machine YSM40 is launched
2015: YSM20, Z.LEX officially launched
2016: The world's fastest YSM40R per unit area was released
2017: YSM10, YSM20R officially went on sale.
In 2019, YRM20 placement machine, the top performance ultra-high-speed module placement machine was put on sale.

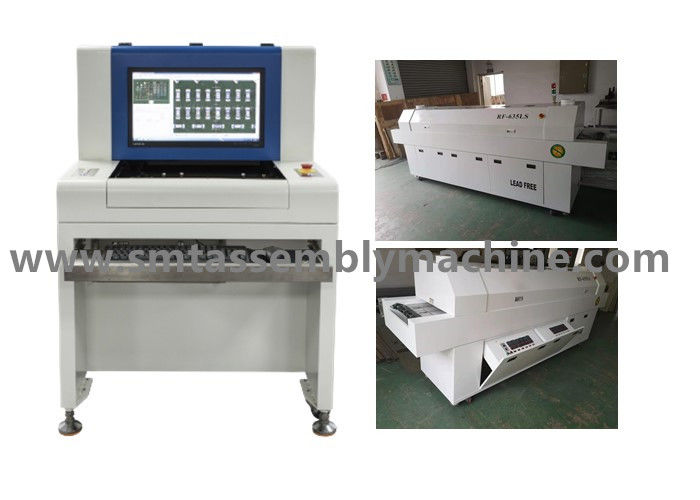

SZ-X1/X3 Technical parameters of offline AOI optical inspection equipment
| Functional Specifications | |
| Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
| Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.) |
| Camera | Full color smart digital camera |
| Resolution/Visual Range/Speed |
Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV |
| light source | High brightness RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manual writing, automatic framing, CAD data import and automatic correspondence libraries |
| Remote control | Remote operation, viewing, starting or stopping machine running, modifying programs, etc. anytime, anywhere, anytime, anywhere through TCP/IP network |
| Barcode system | Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark) |
| Server mode | Using a central server, several AOI data sets can be centrally managed |
| operating system | Windows7 Professional |
| Check the result output | 22 inch LCD monitor |
| System Specifications | |
| PCB size range | 50×50mm(Min)～430×330mm(Max) |
| PCB thickness range | 0.3 to 5 mm |
| PCB clamping system edge clearance | TOP:3.5 mm Bottom:3.5 mm |
| Maximum PCB weight | 3KG |
| PCB flex | <5mm or 2% of PCB diagonal length |
| PCB top and bottom net height | PCB Top Side: 30 mm PCB Bottom Side: 60 mm |
| Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
| Conveyor height above the ground | 850 to 920 mm |
| Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
| X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
| Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
| Device weight | APPROX. 350KG |
| Device form factor | 1070×900×1310mm (L×W×H) |
| Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
| Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
