Product Details:
Payment & Shipping Terms:
|

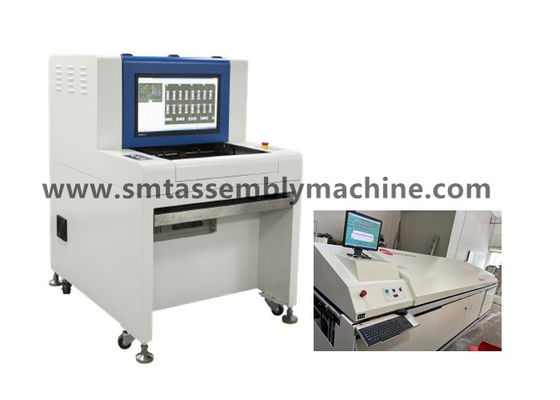

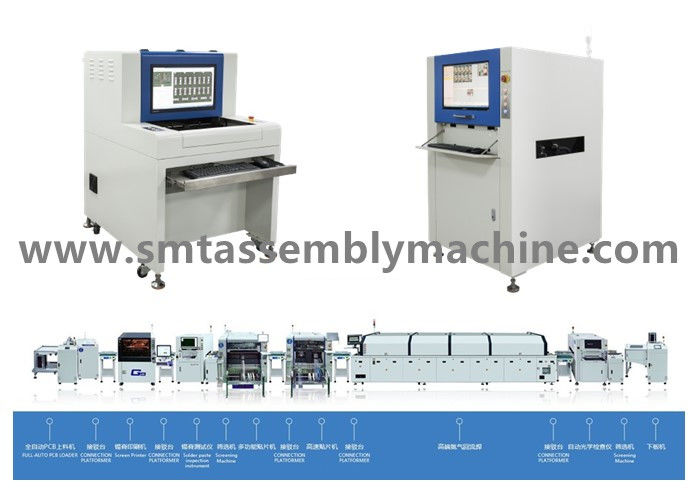

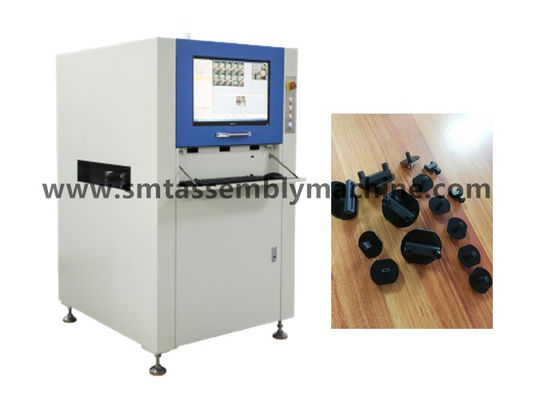

| Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
|---|---|---|---|
| Dimension: | 1070*900*1310mm | Check: | Detect Selfie Stick Plates |
| Detection Method: | Black And White Specific Gravity Analysis | Detection Coverage: | More Tin, Tin Hole, Less Tin Tin Cave |
| Highlight: | PCBAS automated optical inspection machine,fast automated optical inspection machine,Offline aoi inspection equipment |
||
Shenzhen Wanbo Hi-Tech Co., Ltd. is a professional electronic equipment manufacturer integrating R&D, production and sales, producing: AOI testing equipment, AI plug-in machine, wave soldering, reflow soldering, connection platform, automatic loading and unloading machine, stacking machine, corner machine and other equipment; The warehouse has second-hand equipment: Panasonic placement machine, Yamaha placement machine, JUKI placement machine, Samsung placement machine, domestic EZ-pass placement machine, domestic platform machine placement machine, printing machine, reflow soldering and other supporting equipment; The warehouse has accessories: motors, boards, laser heads, accessories FEEDER, nozzles, etc.
AOI test equipment to detect PCBA board:
More tin, less tin, tin holes, short circuit, no pins, etc.
After SMT furnace: missing parts, misalignment, part error, polarity reversal, fracture, pollution, less tin, more tin, short circuit, virtual soldering, etc.
AOI function: AOI effective detection rate: over 99% (manual detection rate is about 70%);
Reduce labor: 2-4 people per production line, high testing efficiency;
Through the SPC function, process defects can be accurately counted and effectively controlled;
AOI principle: Utilize modern optical principles and digital camera technology to take real-time photos of detected objects,
Analyze and process the captured images through computers and specialized software, and automatically generate detection results.
The stability is much higher than manual labor, and long-term use can significantly reduce the overall cost;
YAMAHA full range of placement machines:
YSM40,YSM20,YSM10,S20,S10,YS24,YS12,YS100,YG88,YG300,YG200,YG100 ,YV88X ,YV100X,YV100XE,YV100XG,YV100II
Samsung full range placement machine:
CP45F,SM310,SM320,SM321,SM421,SM411,SM471,SM481,SM482,S1,S2,L2
SZ-X1/X3 Technical parameters of offline AOI optical inspection equipment
| Functional Specifications | |
| Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
| Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.) |
| Camera | Full color smart digital camera |
| Resolution/Visual Range/Speed |
Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV |
| light source | High brightness RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manual writing, automatic framing, CAD data import and automatic correspondence libraries |
| Remote control | Remote operation, viewing, starting or stopping machine running, modifying programs, etc. anytime, anywhere, anytime, anywhere through TCP/IP network |
| Barcode system | Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark) |
| Server mode | Using a central server, several AOI data sets can be centrally managed |
| operating system | Windows7 Professional |
| Check the result output | 22 inch LCD monitor |
| System Specifications | |
| PCB size range | 50×50mm(Min)～430×330mm(Max) |
| PCB thickness range | 0.3 to 5 mm |
| PCB clamping system edge clearance | TOP:3.5 mm Bottom:3.5 mm |
| Maximum PCB weight | 3KG |
| PCB flex | <5mm or 2% of PCB diagonal length |
| PCB top and bottom net height | PCB Top Side: 30 mm PCB Bottom Side: 60 mm |
| Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
| Conveyor height above the ground | 850 to 920 mm |
| Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
| X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
| Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
| Device weight | APPROX. 350KG |
| Device form factor | 1070×900×1310mm (L×W×H) |
| Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
| Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
