Tablet PCBA Board Visual AOI Inspection Machine SMT Patch
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
|---|---|---|---|
| Dimension: | 1070*900*1310mm | Check: | Check The Solder Joints On The Printer Adapter Board |
| Detection Method: | Figure Similarity Analysis | Detection Coverage: | Solder Joint Of Printer Adapter Board |
| High Light: | Tablet PCBA Board AOI Inspection Machine,Visual AOI Inspection Machine,SMT Patch AOI Machine |
||
Tablet PCBA board visual inspection automated optical inspection aoi SMT patch
SMT optical inspection machine AOI test the quality of the printer PCBA board
Outdoor floodlight power control board DIP offline AOI SZ-X3 visual detection Yamaha YS24
DIP AOI Inspection Machine outdoor street lamp high-power power control board
SMT AOI SZ-X3 machine control quality for outdoor 100W 200W power control board
LED lamp power control board offline AOI SZ-X3 quality detection after welding
AOI SZ-X3 optical inspection equipment inspects the car navigation control board
AOI optical testing equipment checks the control quality of the selfie rod plate
Shenzhen Wanbo High tech Co., Ltd. produces AOI test equipment, AI plug-in machine, wave soldering, reflow soldering soldering, connection platform, automatic loader, stacker, corner machine and other equipment;
Sales of second-hand mounters: Matsushita mounters, Yamaha mounters, JUKI mounters, Samsung mounters, domestic EZ pass mounters and domestic platform mounters, printing machines, reflow soldering soldering and other supporting equipment;
Accessories sales: motors, plates, laser heads, accessories FEEDER, nozzles, etc.
Powerful software functionality
1. Color extraction, statistical analysis, SPC statistical function offline programming;
2. Character Recognition (OCR). Operation level management barcode scanning;
3. Color distance analysis, multi machine interconnection, black and white specific gravity analysis
4. IC bridge self built component standard library;
5. Automatic recognition and detection of the bottom surface of brightness analysis;
6. CAD data import function, which can generate and export daily, weekly, and monthly reports;
7. Graph similarity analysis for multi panel detection.
Suction nozzle category complete
Convex lens nozzle
Panasonic chip mounter and accessories
Display of some types of SMD components
Undertake customized nozzle business

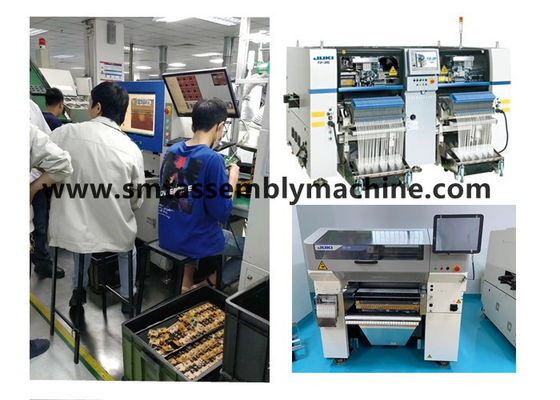

Case Factory
Panasonic mounter CM602-L
Inspection equipment

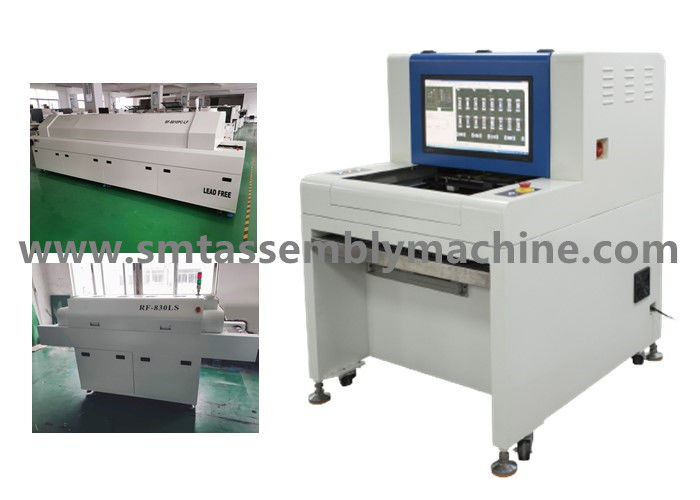

AOI testing equipment
PCBA board for detecting SMD

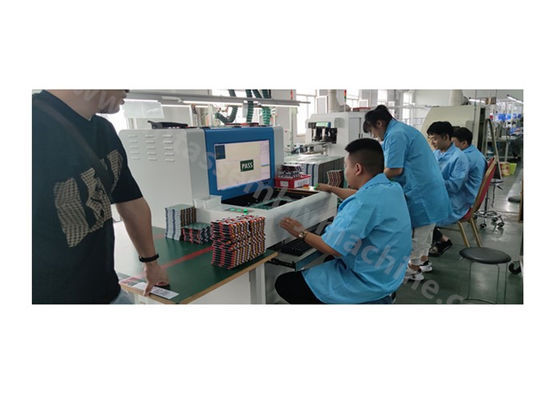

Offline machine
Online machine
Test PCBA boards
Post-wave furnace inspection
AOI case
Detection capability
Detection of PCBA products
SZ-X1/X3Technical parameters of offline AOI optical inspection equipment
| Functional Specifications | |
| Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
| Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.) |
| Camera | Full color smart digital camera |
| Resolution/Visual Range/Speed |
Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV Standard: 20μm/Pixel FOV: 32.56mm×24.72mm Detection speed<260ms/FOV Optional: 15μm/Pixel FOV: 24.42mm X18.54mm Detection speed< 240ms/FOV Optional: 10μm/Pixel FOV: 16.28mm X12.36mm Detection speed< 220ms/FOV |
| light source | High brightness RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manual writing, automatic framing, CAD data import and automatic correspondence libraries |
| Special features | Multiple programs run at the same time, support automatic recall program; 0-359° rotating parts (in 1°) |
| Minimal part testing | 10µm:01005chip & 0.3pitch IC |
| SPC and process regulation | Record test data throughout the process and perform statistics and analysis, any area can view production status and quality analysis, and output Excel, Txt and other file formats |
| Barcode system | Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark) |
| Server mode | Using a central server, several AOI data sets can be centrally managed |
| operating system | Windows7 Professional |
| Check the result output | 22 inch LCD monitor |
| System Specifications | |
| Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
| Conveyor height above the ground | 850 to 920 mm |
| Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
| X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
| Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
| Device weight | APPROX. 350KG |
| Device form factor | 1070×900×1310mm (L×W×H) |
| Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
| Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
