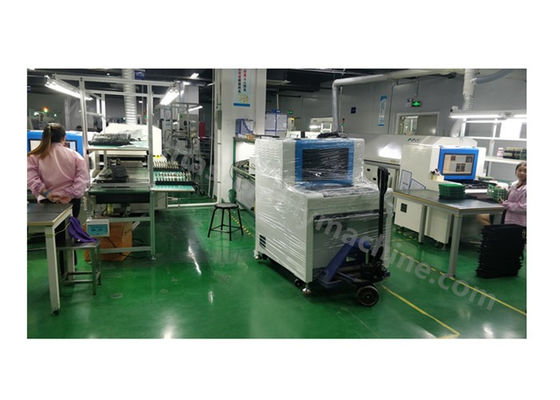

| Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
|---|---|---|---|
| Dimension: | 1070*900*1310mm | Check: | Computer Monitor Power Strip |
| Detection Method: | Image Contrast Analysis | Detection Coverage: | Computer Monitor Power Board Elements |
| Highlight: | 1D SMT AOI Machine,High Speed SMT AOI Machine,High Speed Automated Optical Inspection Equipment |
||
Shenzhen Wanbo High tech Co., Ltd. produces AOI test equipment, AI plug-in machine, wave soldering, reflow soldering soldering, connection platform, automatic loader, stacker, corner machine and other equipment;
Sales of second-hand mounters: Matsushita mounters, Yamaha mounters, JUKI mounters, Samsung mounters, domestic EZ pass mounters and domestic platform mounters, printing machines, reflow soldering soldering and other supporting equipment;
Accessories sales: motors, plates, laser heads, accessories FEEDER, nozzles, etc.
Powerful software functionality
1. Color extraction, statistical analysis, SPC statistical function offline programming;
2. Character Recognition (OCR). Operation level management barcode scanning;
3. Color distance analysis, multi machine interconnection, black and white specific gravity analysis
4. IC bridge self built component standard library;
5. Automatic recognition and detection of the bottom surface of brightness analysis;
6. CAD data import function, which can generate and export daily, weekly, and monthly reports;
7. Graph similarity analysis for multi panel detection.
LED lamp beads chip lens
Optimal conditions 0.155 sec/chip (23300CPH)
Yamaha placement machine
Suction nozzle
Yamaha accessories
SMT placement machine
Yamaha YSM20
Yamaha YSM10
Yamaha YV100II
Yamaha YV100Xe
Yamaha YV100Xe placement machine
In-machine view
Machine display
SMT patch line
SMT production line equipment display
SMT patches and inspection equipment
High Light: pick and place vacuum nozzle,smt feeder
Panasonic placement machine CM series placement machine and accessories
component placement machine
Medium and high speed placement machine
SMT placement machine
Panasonic placement machine
Yamaha placement machine
Samsung placement machine
JUKI placement machine

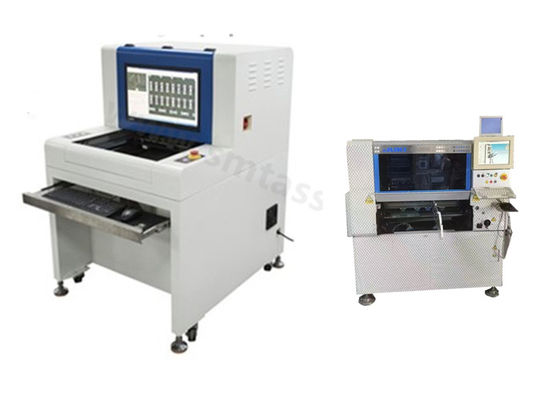

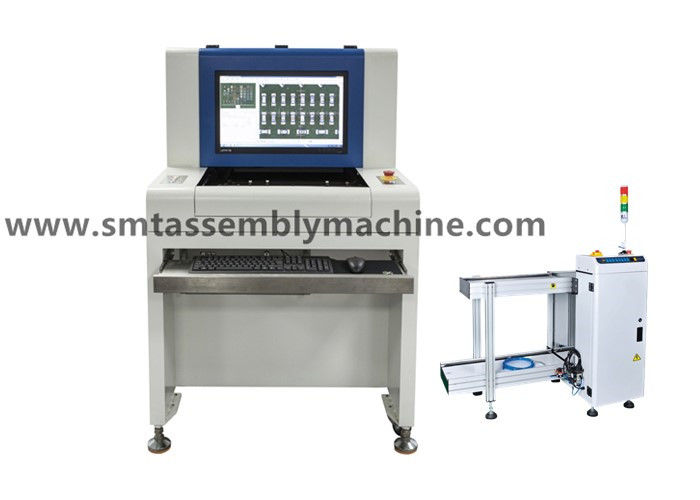

SZ-X1/X3Technical parameters of offline AOI optical inspection equipment
| Functional Specifications | |
| Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
| Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.) |
| Camera | Full color smart digital camera |
| Resolution/Visual Range/Speed |
Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV Standard: 20μm/Pixel FOV: 32.56mm×24.72mm Detection speed<260ms/FOV Optional: 15μm/Pixel FOV: 24.42mm X18.54mm Detection speed< 240ms/FOV Optional: 10μm/Pixel FOV: 16.28mm X12.36mm Detection speed< 220ms/FOV |
| light source | High brightness RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manual writing, automatic framing, CAD data import and automatic correspondence libraries |
| Special features | Multiple programs run at the same time, support automatic recall program; 0-359° rotating parts (in 1°) |
| Minimal part testing | 10µm:01005chip & 0.3pitch IC |
| SPC and process regulation | Record test data throughout the process and perform statistics and analysis, any area can view production status and quality analysis, and output Excel, Txt and other file formats |
| Barcode system | Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark) |
| Server mode | Using a central server, several AOI data sets can be centrally managed |
| operating system | Windows7 Professional |
| Check the result output | 22 inch LCD monitor |
| System Specifications | |
| Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
| Conveyor height above the ground | 850 to 920 mm |
| Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
| X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
| Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
| Device weight | APPROX. 350KG |
| Device form factor | 1070×900×1310mm (L×W×H) |
| Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
| Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
