Product Details:
Payment & Shipping Terms:
|

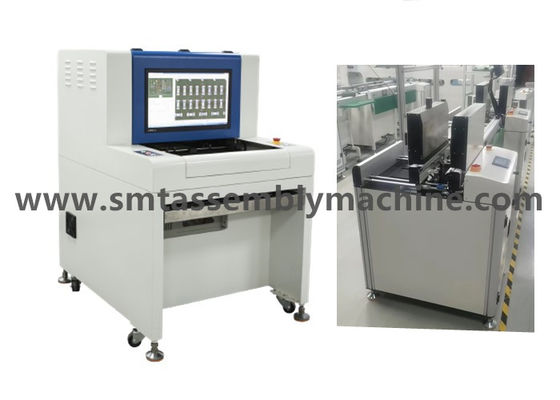

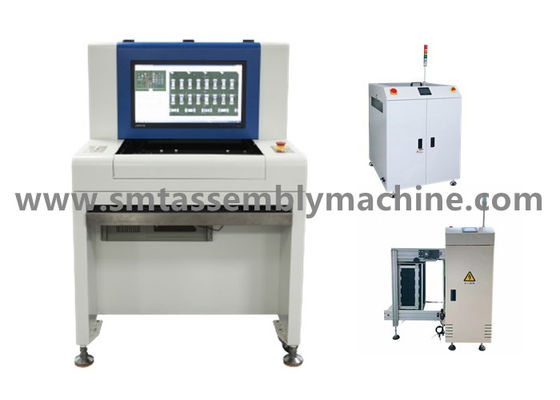

| Product Name: | AOI Testing Equipment | Model: | SZ-X3 |
|---|---|---|---|
| Dimension: | 1070*900*1310mm | Barcode System: | 1D 2D Code |
| Remote Control: | Network Via TCP/IP | Operating System: | Windows7 Professional |
| Highlight: | PCBA Elements Automated Optical Inspection Machine,CE AOI Machine,PCBA Elements AOI Machine |
||

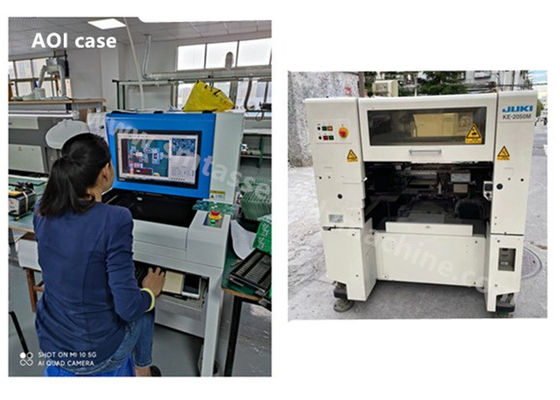

Shenzhen Wanbo Hi-Tech Co., Ltd. is a professional electronic equipment manufacturer integrating R&D, production and sales, producing: AOI testing equipment, AI plug-in machine, wave soldering, reflow soldering, connection platform, automatic loading and unloading machine, stacking machine, corner machine and other equipment; The warehouse has second-hand equipment: Panasonic placement machine, Yamaha placement machine, JUKI placement machine, Samsung placement machine, domestic EZ-pass placement machine, domestic platform machine placement machine, printing machine, reflow soldering and other supporting equipment; The warehouse has accessories: motors, boards, laser heads, accessories FEEDER, nozzles, etc.
Shenzhen Wanbo Hi-Tech Co., Ltd. has a senior engineer team with rich maintenance experience, specializing in providing a series of placement machine software and hardware maintenance and troubleshooting. It mainly includes JUKI laser head, CPU motherboard SUB-CPU board, drive board X/Y/Z/T axis driver, head board, image control card, I/O board, JUKI servo motor, camera, display touch screen, servo motor and other maintenance and replacement services. The company's fees are reasonable, the warehouse accessories are sufficient, the maintenance cycle is short, the one-time repair success rate is high, and the Pearl River Delta region can provide door-to-door installation, commissioning, maintenance and maintenance.
Our company has introduced second-hand placement machines for a long time, short machine use time, good maintenance, good production status, provide overseas model reservation, price advantage is obvious, the company specializes in placement machines, plug-in machines, SMT peripheral equipment and accessories recycling, trading, welcome to consult!
Shenzhen Wanbo Hi-Tech Co., Ltd. adheres to the principle of sincerity, simplicity, pragmatism and modesty, adheres to the principle of seeking truth from facts, uses products as the medium, and adopts the new form of creating IP services as the business philosophy, we provide customers with solutions to realize the social value of the company and the team.
What does SMD you probably not know? But when it comes to SMT placement machines, many people may know.
The difference between SMD and SMT of SMT placement machine:
SMD is the abbreviation of Surface Mounted Devices, which means: surface mount device, it is SMT (Surface Mount
Technology) components, including CHIP, SOP, SOJ, PLCC, LCCC, QFP, BGA, CSP, FC, MCM and so on.
Surface mount components were introduced about two decades ago and ushered in a new era. From passive components to active components and integrated circuits,
The end result is a surface mount device (SMD) that can be assembled via pick-and-place equipment.
For a long time, it was assumed that all lead components would eventually be available in SMD packages.
SMT is the abbreviation of Surface Mount Technology, which means: surface assembly technology, which is currently the most popular technology and process in the electronics assembly industry.
SMT is a new generation of electronic assembly technology, which compresses traditional electronic components into devices that are only a few tenths of the size.
As a result, electronic product assembly is realized with high density, high reliability, miniaturization, low cost, and production automation.
This miniaturized component is called: SMD device (or SMC, chip device). The process method of assembling components onto a printed board PCB is called the SMT process.
SZ-X1/X3Technical parameters of offline AOI optical inspection equipment
| Functional Specifications | |
| Tested circuit board | SMT reflow furnace pre-reflow furnace, post-circuit board inspection, wave soldering pre-soldering, wave soldering post-circuit board inspection |
| Detection method | Color extraction, statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.) |
| Camera | Full color smart digital camera |
| Resolution/Visual Range/Speed |
Optional: 25μm/Pixel FOV: 40.70mm X30.90mm Detection speed< 270ms/FOV Standard: 20μm/Pixel FOV: 32.56mm×24.72mm Detection speed<260ms/FOV Optional: 15μm/Pixel FOV: 24.42mm X18.54mm Detection speed< 240ms/FOV Optional: 10μm/Pixel FOV: 16.28mm X12.36mm Detection speed< 220ms/FOV |
| light source | High brightness RRGB coaxial ring tower LED light source (color light) |
| Programming mode | Manual writing, automatic framing, CAD data import and automatic correspondence libraries |
| Special features | Multiple programs run at the same time, support automatic recall program; 0-359° rotating parts (in 1°) |
| Minimal part testing | 10µm:01005chip & 0.3pitch IC |
| SPC and process regulation | Record test data throughout the process and perform statistics and analysis, any area can view production status and quality analysis, and output Excel, Txt and other file formats |
| Barcode system | Automatic camera recognition and transmission of Barcode (1D or 2D code), and multi-Mark function (including Bad Mark) |
| Server mode | Using a central server, several AOI data sets can be centrally managed |
| operating system | Windows7 Professional |
| Check the result output | 22 inch LCD monitor |
| System Specifications | |
| Conveyor system | Automatic opening and retracting of bilateral fixtures, automatic compensation of PCB bending deformation |
| Conveyor height above the ground | 850 to 920 mm |
| Conveyor flow / time | PCB moves in Y direction In/out time: 2.5 seconds |
| X/Y platform driver | Screw motor driven, positioning accuracy < 20μm; The PCB is fixed and the Camera moves in the X direction |
| Power supply/air pressure | AC230V 50/60 Hz less than 1KVA / not required |
| Device weight | APPROX. 350KG |
| Device form factor | 1070×900×1310mm (L×W×H) |
| Ambient temperature and humidity | 10~35°C 35~80% RH (non-condensing) |
| Equipment safety | Complies with CE safety standards |
Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
