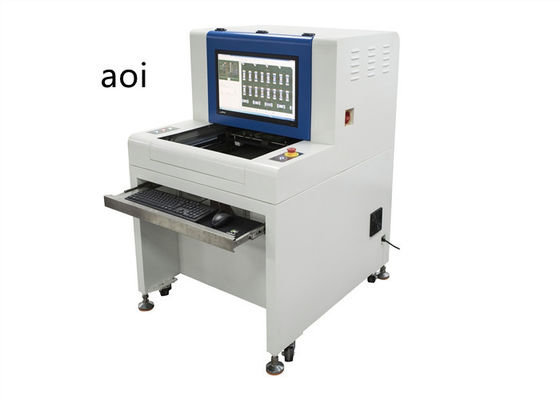

CAD Data Auto Visual Inspection Machine Inspect PCB Full Color CCD Camera

CAD Data Auto Visual Inspection Machine Inspect PCB Full Color CCD Camera
CAD Data Auto Visual Inspection Machine Inspect PCB Full Color CCD Camera

Large Image :  CAD Data Auto Visual Inspection Machine Inspect PCB Full Color CCD Camera Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: WANBO
Model Number: X3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discuss price
Packaging Details: wooden box package
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Product Name: AOI Inspect PCB: After Reflow Oven
Camera: Full Color CCD Power: AC220V 50/60HZ
Highlight:

CAD Data auto visual inspection machine

,

Inspect PCB auto visual inspection machine

,

CCD Camera automatic visual inspection machine

SZ-X3 Product Specification


Imaging System
Camera: 5 megapixel high definition intelligent industrial camera
Camera resolution Standard configuration:15um/PixelFOV:38.0mm*30.0mm;Optional:20um,10um
Light source:RRGB high gray LED light source

CAD Data Auto Visual Inspection Machine Inspect PCB Full Color CCD Camera 0
Test items
Programming mode:CAD data impor t automatically for component librar y
After reflux fuenace :
Component: Wrong par ts,missing par ts,polarity,deviation,monument,reversal,damage,lc bending,doreign matter, etc
Solder joints:less tin,more tin,tin hole,bridging,tin coating,false tin,tin bead,etc
Minimum paet test:Theoigh the resolution the minimum measuradle is 03015(01005)chip&0.3 pitch IC
After Wave Soldering:Less tin,more tin,tin hole,false tin,bridge, tin psckage,tin beda,etc
CAD Data Auto Visual Inspection Machine Inspect PCB Full Color CCD Camera 1
CAD Data Auto Visual Inspection Machine Inspect PCB Full Color CCD Camera 2
