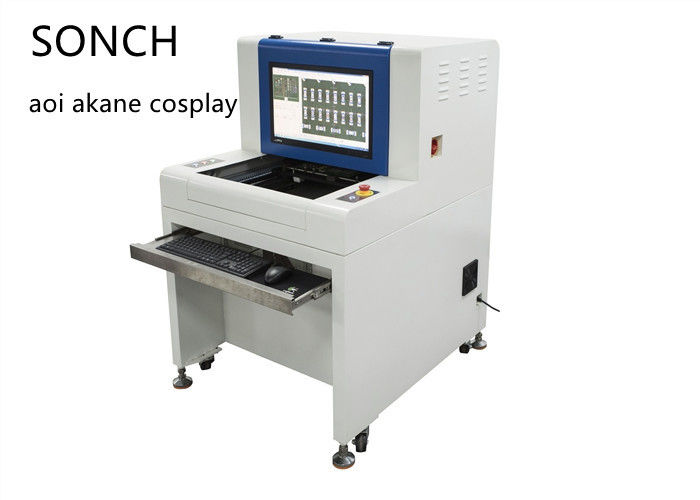

AC220V AOI Automated Optical Inspection Machine 5 Megapixel High Definition Camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | AOI | Inspect PCB: | After Reflow Oven |
|---|---|---|---|
| Camera: | 5 Megapixel High Definition Intelligent Industrial Camera | Power: | AC220V 50/60HZ |
| Light Source: | RRGB High Gray LED Light Source | ||
| High Light: | AC220V automated optical inspection machine,AOI automated optical inspection machine,Megapixel Camera automated optical inspection equipment |
||
SZ-X3 Product Specification
Imaging System
Camera: 5 megapixel high definition intelligent industrial camera
Camera resolution Standard configuration:15um/PixelFOV:38.0mm*30.0mm;Optional:20um,10um
Light source:RRGB high gray LED light source
Test items
Programming mode:CAD data impor t automatically for component librar y
After reflux fuenace :
Component: Wrong par ts,missing par ts,polarity,deviation,monument,reversal,damage,lc bending,doreign matter, etc
Solder joints:less tin,more tin,tin hole,bridging,tin coating,false tin,tin bead,etc
Minimum paet test:Theoigh the resolution the minimum measuradle is 03015(01005)chip&0.3 pitch IC
After Wave Soldering:Less tin,more tin,tin hole,false tin,bridge, tin psckage,tin beda,etc
