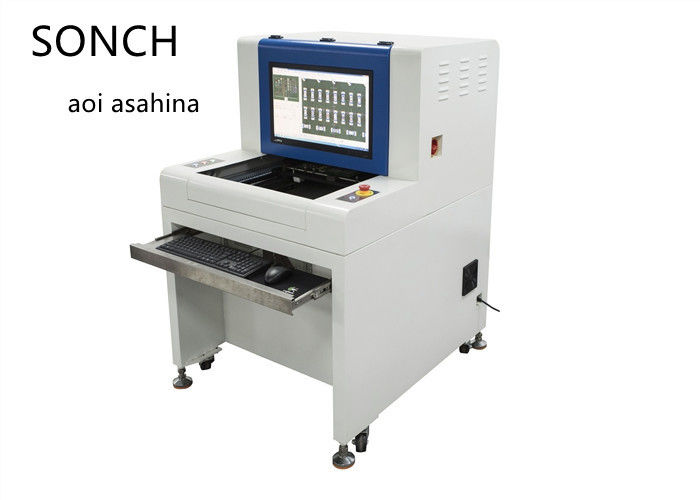

Megapixel Camera 3D AOI Inspection Machine RGB High Gray LED Light Source

SZ-X3 Product Specification





Imaging System

Camera: 5 megapixel high definition intelligent industrial camera

Camera resolution Standard configuration:15um/PixelFOV:38.0mm*30.0mm;Optional:20um,10um

Light source:RRGB high gray LED light source



Test items

Programming mode:CAD data impor t automatically for component librar y

After reflux fuenace :

Component: Wrong par ts,missing par ts,polarity,deviation,monument,reversal,damage,lc bending,doreign matter, etc

Solder joints:less tin,more tin,tin hole,bridging,tin coating,false tin,tin bead,etc

Minimum paet test:Theoigh the resolution the minimum measuradle is 03015(01005)chip&0.3 pitch IC

After Wave Soldering:Less tin,more tin,tin hole,false tin,bridge, tin psckage,tin beda,etc









Features
1.With wave peak welding and SMT welding spot and other production process detection algorithm
2.The CCD is placed above the track and the image is taken under the lens
3.With remote debugging &programming, non-stop debugging function
4.Readable2DBarcode(laser &print)
5.Offline inspection for SMT
6.SPC has complete functions, can remotely collect production bad information, and automatically generate various production repor ts
7.A/B side automatic switching program function
8.Plate bending automatic compensation function.FPC applicable
