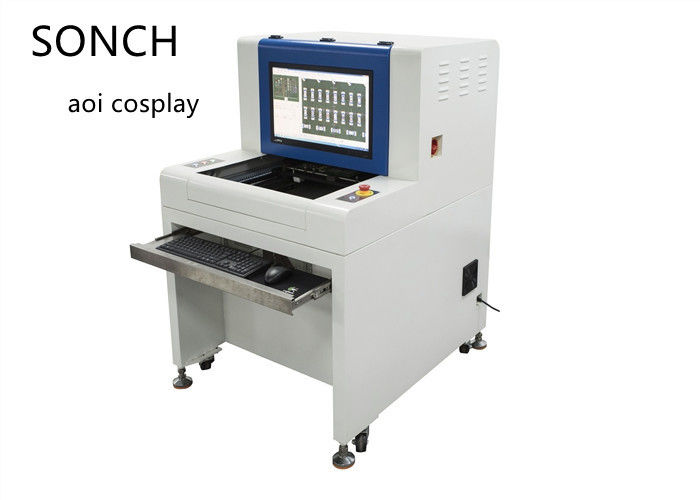

Remote Operstion Machine Vision Inspection Systems 22 Inch LCD AOI Inspection Systems

Large Image : Remote Operstion Machine Vision Inspection Systems 22 Inch LCD AOI Inspection Systems Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	WANBO
Model Number:	X1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	discuss price
Packaging Details:	wooden box package
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Product Name:

Inspect PCB:

After Reflow Oven

Camera:

5 Megapixel High Definition Intelligent Industrial Camera

Power:

AC220V 50/60HZ

Highlight:

megapixel camera machine vision inspection systems

22 Inch LCD machine vision inspection systems

LCD AOI Inspection Systems

aoi inspection systems

Remote Operstion Machine Vision Inspection Systems 22 Inch LCD AOI Inspection Systems 0

Test PCBA specification

PCBA Size range 50*50mm~430*330mm

Thickness range 0.5~5.0mm

Maximum PCBA Weight 3kg

PCBA cur vature ＜5mm Or 2% of diagonal length

PCBA Height Top:30mm； Bot:60mm

Check result output 22 Inch LCD,suppor t output OK/ng buff shunt

Extended Function

Bar code System:Automatic barcode recognition(1D&2D)

Remote Control:Remote operstion through TCP/IP

Ser ver Mode:With the central ser ver,multiple Aol data can be centralized and managed

SPC and Program Control:Recoed and analyze the test data in the whole process,and view the production status and quality analysis through remote control

Special funct:Multi connected board multi program detection,a/B side automatic switching program detection function

Teansmission mechanism

ConveyorFlow direction/ speed: The PCB is located on the Y-axis track .With the entr y and exit of the y-axis track .the entr yand exit speed is 2 seconds /PCs

Conveyor Height above ground: 900mm±30mm

Track width ad justment:Manual adjustment

Splint system:The automatic opening and clamping double-sided splint system can automatically correct the deformation sf PCB board

Remote Operstion Machine Vision Inspection Systems 22 Inch LCD AOI Inspection Systems 2

Imageacquisition and motion control system
1.Use a top-down shot structure
2.High definition 10 megapixel industrial lens
3.High precision ser vo motion system
